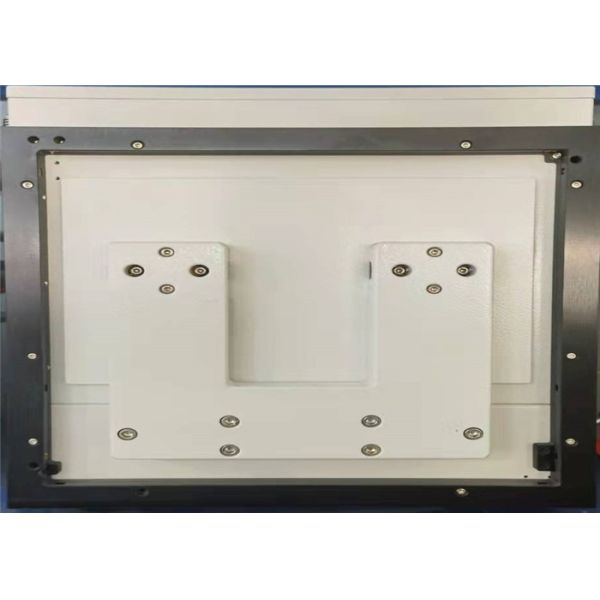

High Isolation Automatic RF Shield Box RS232 For EMI Wifi GSM Signal Test
High Isolation Automatic RF Shield Box RS232 For EMI Wifi GSM Signal Test
Specifications
Brand Name :
Jiaduoli
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100pcs/month
Delivery Time :
10-15 work days
Packaging Details :
Wooden box For Stainless Steel Pneumatic Rf Shielding Box
Product Name :
Automatic Rf Test shield box
Chipset :
0.8~8GHZ
Thickness :
0.1-1mm
Shielding effect :
≥70dB
Application :
the test requirements of smart mobile terminals
Function :
Signal blocking for wireless products
Description

High Isolation Automatic Rf Shield Box For Emi Wifi GSM Signal Test

Features

① The working size meets most of the test requirements of smart mobile terminals on the market.

② New wave-absorbing materials are used to reduce the refracted and reflected wave signal in the box, thereby reducing the probability of false detection caused by the environment.

③ Various filters are available according to requirements.
④ Various interface types can be combined according to needs.
⑤ Double protection measures, coming from the high-sensitivity magnetic ring sensors and photoelectric sensors.
⑥ It supports RS232 serial communication command control and PLC online programming control.

It is an economical pneumatic single-layer shielding box, it is suitable for building module and terminal test solution platforms in the fields of smart phone, Wi-Fi, Blue-tooth, smart grid equipment, automotive electronics, UAV, smart homes and so on. It is made of more than a dozen rigorous processes such as the CNC laser cutting of sheet metal, sheet metal forming, electroplating, electrostatic spray painting, assembly and debugging, testing, etc., with several advantages like high shielding effectiveness, firm structure, and stable performance. In terms of filter selection, the corresponding I/O data interface and RF interface can be configured according to the actual needs of customers.

Rf Test shield box specifications:

Type
RF Shielding Box
Application
Wireless Device Testing, Pre-compliance, R&D, Product Validation & Forensic
Exterior
22"H x 17"W x 22"D
Interior
20"H x 15"W x 20"D
Construction
Rugged Welded Steel Construction
Shielding Effectiveness
> 100dB @ 1 GHz > 95dB @ 3 GHz > 90dB @ 6 GHz
Operating Frequency Range
800MHz to 12GHz
Placement/Installation
Rack Mountable
Power Input
Powered by AC / DC Power Filter lines
Input /Output Configuration
Completely Customizable I/O Connector options
Ventilation
High performance shielded Air Vents for adequate air flow
Warranty
1 Year / 12 Months

Rf Test shield box Application

1) 2.4GHz and 5 GHz wireless LAN products: signal block or isolating for the wireless modem, wireless router, wireless LAN card, wireless charger, wireless earphone, wireless headset, PCB test
2) GPS products: cellular phones as W-CDMA of 3G, PDC and GSM; the mobile phone with GPS function, RC drone;
3 )Smart products: signal block or isolating for smart led, smartwatch, smart security, smart robot, smart lock, smart ring, smart bracelets), TV BOX(set-top box) 4)Measure products: water measure, electricity measure, temperature measurements, etc)

Rf Shielded Enclosure Function
* This EMI/RFI-shielded box has up to 70 dB reduction of RF signals up to 5 GHz. This makes the shielded box ideal for testing cellular handsets, RFID, Bluetooth, Zigbee, WiMax, WLAN or similar wireless devices.
* The box can be constructed in any size required.
* The box is well suited for the cases where the current state of an electronic device needs to be frozen by blocking all wireless contact with the outside world
* Many other shielded conduits are available on request. They may optionally also be added later.

The Pneumatic auto shield box filter interface is suitable for wireless terminal testing such as routers, set-top boxes, drones,wireless headsets, wireless water meters, mobile phones, etc. It has the following characteristics: Aluminum alloy material,sturdy and durable, excellent shielding performance; Modular design, more humane characteristics, users can choose different interface combinations according to their needs
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
4
433(W)*440(D)*313(H)
540(W)*562(D)*395(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
2
346(W)*386(D)*278.5(H)
470(W)*534(D)*392(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
6
420(W)*400(D)*310(H
526(W)*517(D)*449(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
4
450(W)*450(D)*350(H)
587(W)*565(D)*464(H
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
Out: 4P
Inner: 2P
495(W)*495(D)*245(H)
585(W)*595(D)*325(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
2
325(W)*298(D)*280(H)
410(W)*415(D)*370(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
6
696(W)*426(D)*300(H)
818(W)*562(D)*400(H
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
2
325(W)*298(D)*231(H)
410(W)*406(D)*321(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
5
546(W)*566(D)*400(H)
690(W)*715(D)*514(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
4
p:495(W)*595(D)*325(H)
own:495(W)*595(D)*60(H)
600(W)*705(D)*405(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
10
433(W)*440(D)*313(H)
515W)*550(D)*525(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
4
400(W)*400(D)*400(H
515W)*550(D)*525(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
2
540(W)*500(D)*405(H)
720(W)*725(D)*525(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
10
434(W)*447(D)*400(H)
525(W)*600(D)*555(H)

Our Service:

  • Customized design: offering whatever size you need according to your DUT.
  • No MOQ: Our OEM/ODM starts at as few as 1-10 pcs of one design to fit your needs.
  • Fast Delivery: Delivering the products within 3 business days for some models.

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days against the quantity if the goods are not in stock.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with charge

Q: What is your warranty?
A: One year
