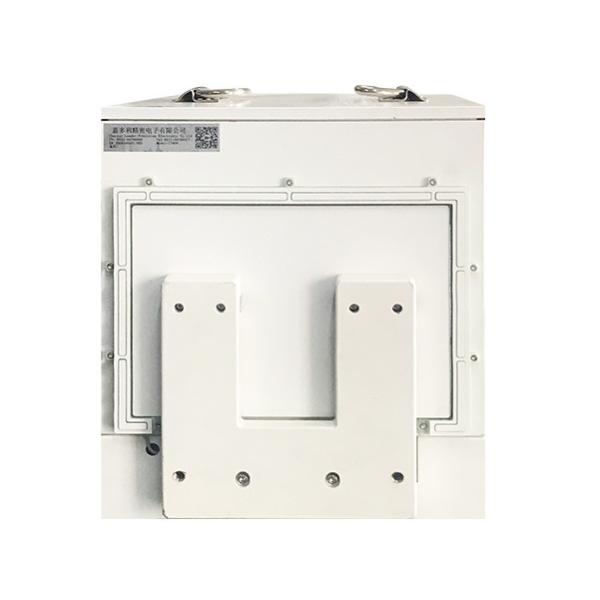

Professional Communications RF Signal Shielding Boxes Manual ODM OEM
Professional Communications RF Signal Shielding Boxes Manual ODM OEM
Professional Communications RF Signal Shielding Boxes Manual ODM OEM
Professional Communications RF Signal Shielding Boxes Manual ODM OEM
Professional Communications RF Signal Shielding Boxes Manual ODM OEM
Professional Communications RF Signal Shielding Boxes Manual ODM OEM
Specifications
Brand Name :
Jiaduoli
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100pcs/month
Delivery Time :
10-15 work days
Packaging Details :
Wooden box For Stainless Steel Pneumatic Rf Shielding Box
Product Name :
Automatic Rf Test shield box
Working frequency (GHz) :
100MHz~6GHZ
Type :
RF Module
Shielding effect :
≥80 dB for 2.4GHz/5.8GHz
Service :
Customize ODM OEM
Function :
Signal blocking for wireless products
Description

High-End Products Professional Communications Test Set Rf Signal Shielding Boxes Manual Shielding Box

The shielded chamber or faraday cage included a wide range of integrated, supply and communication interfaces. Our shielding boxes with other dimensions and interfaces can be designed against the customer's individual requirements. Furthermore, RF-absorber mats, ferrite absorbers, infrared windows, ventilation (fans), lockings (for the padlock), etc will be integrated into our RF shielded boxes on request. Whatever you need it, we can build it. This shielding chamber offers below features:

  • High RF Manual Shielding
  • Easy Opening/Closing of the lid
  • RF absorbent foam liner
  • Easily customizable to meet various test needs
  • Easily movable with 4 casters
  • RF tight illuminated viewing window to see device displays and indicators
  • Dual honeycomb ventilation or fan forced cooling

Rf Test shield box specifications:

Working frequency(GHz)
100MHz～6GHZ
Shielding effect
≥80 dB@2.4GHz/5.8GHz
Interface Type
(Kindly confirm which interface need)
VGA,DB9,DB25,2.0USB,3.0USB,SMA,RJ45,BNC,RCA,DC,AC,HDMI
Numbers of filters
1 pc as default
Material
Metal plate
Inner working dimensions (mm)
270(W)*380(D)*68(H)
Outside dimensions (mm)
301(W)*462(D)*124(H)
Weight (kg)
10 kg
Filter modules options for shielded boxes
Shielded boxes can be extended with different types of filters. All available types of filters can be found below.

Rf Test shield box Application

1) 2.4GHz and 5 GHz wireless LAN products: signal block or isolating for the wireless modem, wireless router, wireless LAN card, wireless charger, wireless earphone, wireless headset, PCB test
2) GPS products: cellular phones as W-CDMA of 3G, PDC and GSM; the mobile phone with GPS function, RC drone;
3 )Smart products: signal block or isolating for smart led, smartwatch, smart security, smart robot, smart lock, smart ring, smart bracelets), TV BOX(set-top box) 4)Measure products: water measure, electricity measure, temperature measurements, etc)

Rf Shielded Enclosure Function
* This EMI/RFI-shielded box has up to 70 dB reduction of RF signals up to 5 GHz. This makes the shielded box ideal for testing cellular handsets, RFID, Bluetooth, Zigbee, WiMax, WLAN or similar wireless devices.
* The box can be constructed in any size required.
* The box is well suited for the cases where the current state of an electronic device needs to be frozen by blocking all wireless contact with the outside world
* Many other shielded conduits are available on request. They may optionally also be added later.

The Pneumatic auto shield box filter interface is suitable for wireless terminal testing such as routers, set-top boxes, drones,wireless headsets, wireless water meters, mobile phones, etc. It has the following characteristics: Aluminum alloy material,sturdy and durable, excellent shielding performance; Modular design, more humane characteristics, users can choose different interface combinations according to their needs
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
4
433(W)*440(D)*313(H)
540(W)*562(D)*395(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
2
346(W)*386(D)*278.5(H)
470(W)*534(D)*392(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
6
420(W)*400(D)*310(H
526(W)*517(D)*449(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
4
450(W)*450(D)*350(H)
587(W)*565(D)*464(H
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
Out: 4P
Inner: 2P
495(W)*495(D)*245(H)
585(W)*595(D)*325(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
2
325(W)*298(D)*280(H)
410(W)*415(D)*370(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
6
696(W)*426(D)*300(H)
818(W)*562(D)*400(H
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
2
325(W)*298(D)*231(H)
410(W)*406(D)*321(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
5
546(W)*566(D)*400(H)
690(W)*715(D)*514(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
4
p:495(W)*595(D)*325(H)
own:495(W)*595(D)*60(H)
600(W)*705(D)*405(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
10
433(W)*440(D)*313(H)
515W)*550(D)*525(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
4
400(W)*400(D)*400(H
515W)*550(D)*525(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
2
540(W)*500(D)*405(H)
720(W)*725(D)*525(H)
RS232 (or PLC )
0.8~6
≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ
10
434(W)*447(D)*400(H)
525(W)*600(D)*555(H)

Our Service:

  • Customized design: offering whatever size you need according to your DUT.
  • No MOQ: Our OEM/ODM starts at as few as 1-10 pcs of one design to fit your needs.
  • Fast Delivery: Delivering the products within 3 business days for some models.

FAQ:

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20 days against the quantity if the goods are not in stock.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with charge

Q: What is your warranty?
A: One year
