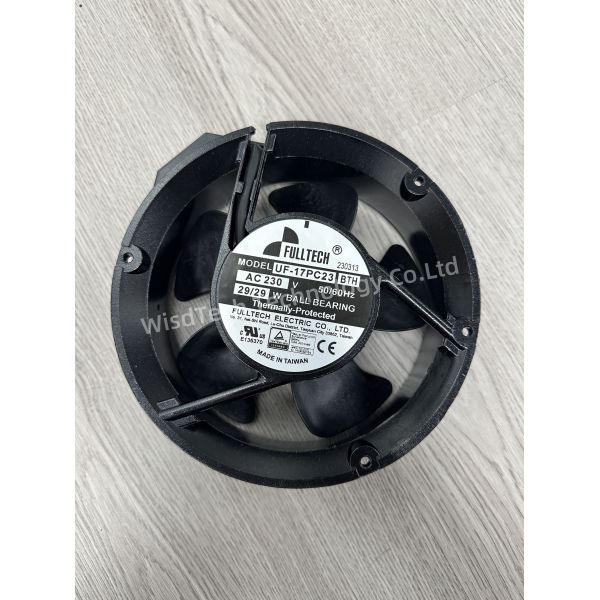

UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan
UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan
UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan
UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan
UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan
UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan
UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan
UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan
Specifications
Description :
UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan
Stock :
100pcs
MOQ :
1pcs
Price :
Email us for details
Payment Terms :
Paypal,TT,Western Union
Shipping Method :
LCL, AIR, FCL, Express
Date Code :
Newest code
Shipping by :
DHL/UPS/Fedex
Condition :
New*Original
Warranty :
365days
Lead free :
Rohs Compliant
Lead times :
Immediately Shipment
Package :
Standard
Mounting Style :
Standard
Description

UF-17PC23BTH AC230V 29/29W Metal Aluminum die-casting Axial Fan

UF-17PC23BTH AC230V 29/29W metal axial fan

Fulltech

Frame/Housing:

Aluminum die-casting

Impeller:

Plastic PBT PC,nylon or metal
Bearing System:

Ball bearing or sleeve bearing

Motor:

Shaded pole or capacitor start-run

Connection:

Lead wire or termnal type

Protection:

 Impedance-Protected or Thermally-Protected

Dielectric withstand voltage:

Above 10MΩ, DC500V

Life Expectancy:

Ball bearing:Over 40,000 hr.(at 40°C)

Sleeve bearing:

Over 15,000 hr.(at 40°C)

Safety Approval:

CUL, CE, TUV, either UL or ETL

Rated Voltage 230 V
Frequency 50/60 Hz
Input Power 29/29 W
Rated Current 0.12/0.12 A
Locked Current 0.19/0.19 A
Speed 2850/3400 RPM
Maximum Air Flow 5.8/6.4 m3/min.
Maximum Air Flow 205/226 CFM
Maximum Pressure 16/20 mmH2O
Maximum Pressure 0.63/0.79 InchH2O
Noise 50/55 dB
Weights 0.82 kg
