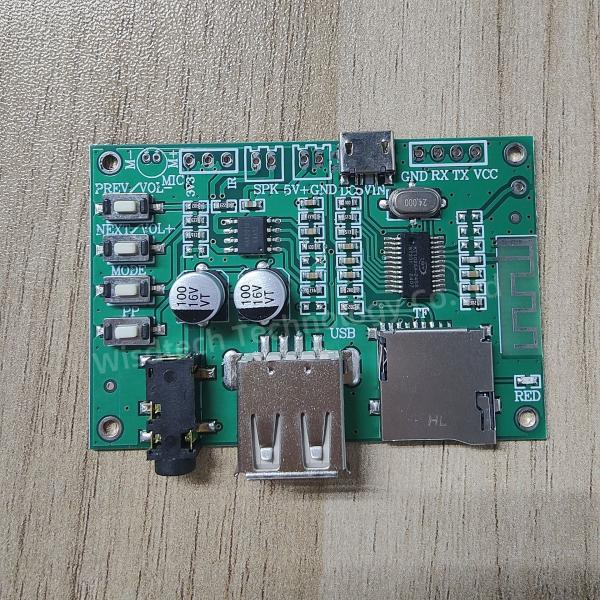

BT201 dual-mode 5.0 Bluetooth receiving module for TF card U disk
BT201 dual-mode 5.0 Bluetooth receiving module for TF card U disk
BT201 dual-mode 5.0 Bluetooth receiving module for TF card U disk
BT201 dual-mode 5.0 Bluetooth receiving module for TF card U disk
BT201 dual-mode 5.0 Bluetooth receiving module for TF card U disk
BT201 dual-mode 5.0 Bluetooth receiving module for TF card U disk
Specifications
Description :
BT201 Module Bluetooth Audio Receiver Playback Module
Stock :
1000PCS
MOQ :
1pcs
Price :
Email us for details
Payment Terms :
Paypal,TT,Western Union
Shipping Method :
LCL, AIR, FCL, Express
Date Code :
Newest code
Shipping by :
DHL/UPS/Fedex
Condition :
New*Original
Warranty :
365days
Lead free :
Rohs Compliant
Lead times :
Immediately Shipment
Package :
SMD
Mounting Style :
Standard
Description

BT201 dual-mode 5.0 Bluetooth receiving module for TF card U disk

CEEH178 Transformer SMD Type CEEH Series

BT201
Length (mm): 8
Width (mm): 3
Height (mm): 0.5
Applications: audio data module

Feature:
1. Built-in 3W amplifier
2. Support DC 5V input
3. Industrial design stable and efficient
4. Support BLE/SPP data transmission
5. MP3 15meter lossless data transmission
6. Support UART
7. Support button adjust control
8. Support U-disk(Max 128G)
9. Support TF card(Max 128G)

Parameter:

1. Model:BT-201
2. Work voltage:DC 3.3V-5V
3. Quiescent current:20mA
4. Support file format:MP3/WAV/WMA/FLAC/AAC/APE
5. UART interface:TTL level
6. Baud rate:Adjustable
7. Output power:4ohm 3W
8. Operating Temperature:-20℃~85℃
9. Operating Humidity:5%~95%RH
10.Module Size:60*40*8mm

Button description:

1. PREV/V-: Short press to select previous music.Long press to decrease volume.
2. NEXT/V+: Short press to select next music.Long press to increase volume.
3. MODE: Switch audio input type from Bluetooth,U-disk,TF card.
4. PP: Play or Pause.

Function:

1. Automatically generate Bluetooth MAC address.
2. Support MP3/WAV/WMA/FLAC/AAC/APE file format decoding.
3. Maximum support 128G U-disk and TF card.
4. Support breakpoint memory and play memory.
5. Support Bluetooth audio input.
6. Support play/pause,switch previous/next music.
7. Support phone call function.User can set cancel call.
8. Support Answer/Hang up/Call back/Refuse for phone call.
9. Support Bluetooth 5.0.
10.Support HFP/A2DP/AVRCP/HSP/GAVDP/IOP/SPP/BLE.
11.Maximum communication distance about 15meter.
12.Frequency range 2.4GHz~2.480GHz.Class2 4dbM.

UART description:

1. Baud rate:115200bps(User can set by command)
2. Data bit:8bit
3. Stop bit:1bit
4. Check Digit:None
5. Control flow:None
6. Control command format: AT+<CMD>[<param>]rn
7. Return data format: <IND>[<param>]rn
8. AT+:The start of a control command.
9. <CMD>:Specific control command.
10.[<param>]:The parameter of CMD if need.
11.rn:Enter and Wrap.
12.<IND>:The start of return data.
