IP67 silicone tube or epoxy waterproof full color rgb apa104
IP67 silicone tube or epoxy waterproof full color rgb apa104
IP67 silicone tube or epoxy waterproof full color rgb apa104
IP67 silicone tube or epoxy waterproof full color rgb apa104
IP67 silicone tube or epoxy waterproof full color rgb apa104
IP67 silicone tube or epoxy waterproof full color rgb apa104
IP67 silicone tube or epoxy waterproof full color rgb apa104
IP67 silicone tube or epoxy waterproof full color rgb apa104
Specifications
Place of Origin :
Shenzhen
Brand Name :
LC
Certification :
CE,RoHS
Model Number :
LC-APA104-144
MOQ :
10m
Price :
17.-20usd/m
Packaging Details :
Anti-static Bags+carton bag
Delivery Time :
3days
Payment Terms :
Paypal,TT,Western Union
Supply Ability :
15000M/week
Description

IP67 silicone tube or epoxy waterproof full color rgb apa104

Name : 144led/m APA104 led strip (It can be 30led/m,60led/m72led/m 144led/m)

Color: Digital RGB

Waterproof: 5050 SMD LED (IP65(epoxy/silicone gel) IP67(silicone tube) ,IP68 (slicone gel inside silicone tube),NON-Waterproof)

LED Quantity: 300 leds/5Meter or 60leds/Meter

Size: 5000*12*2.5(mm)

View angle:120°

Working Input Voltage: 5VDC

Output power: 90W /5 Meter

Working Tempreture:-20° to 60°

Drive Mode:Contant Voltage

IP20 non waterproof:3M sticker on the back,

IP65 waterproof: Silcone gel or epoxy on the surface,

IP67 waterproof: Silicone tube,

IP68 waterproof: Siloicone gel inside silicone tube.

Features of IC :

General description

APA104 is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant curre- nt control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol use single NZR communication mode. After the pixel power- on reset, the DIN port receive data from controller, the first pixel collect initial 24 bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel ,the signalto reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.
LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.

IP67 silicone tube or epoxy waterproof full color rgb apa104

Show pictures:

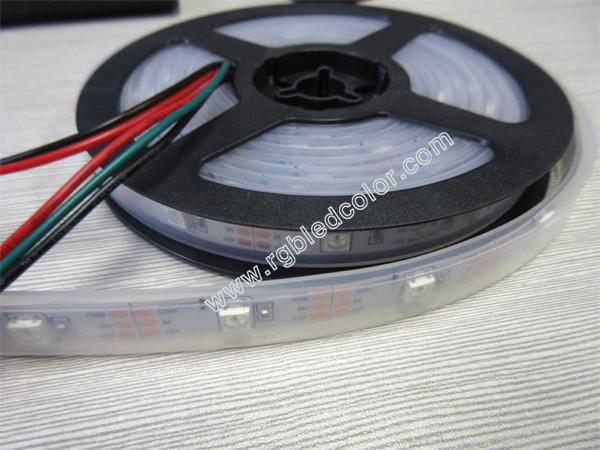

IP67 waterproof with silicone tube

IP67 silicone tube or epoxy waterproof full color rgb apa104

IP67 silicone tube or epoxy waterproof full color rgb apa104

IP67 silicone tube or epoxy waterproof full color rgb apa104

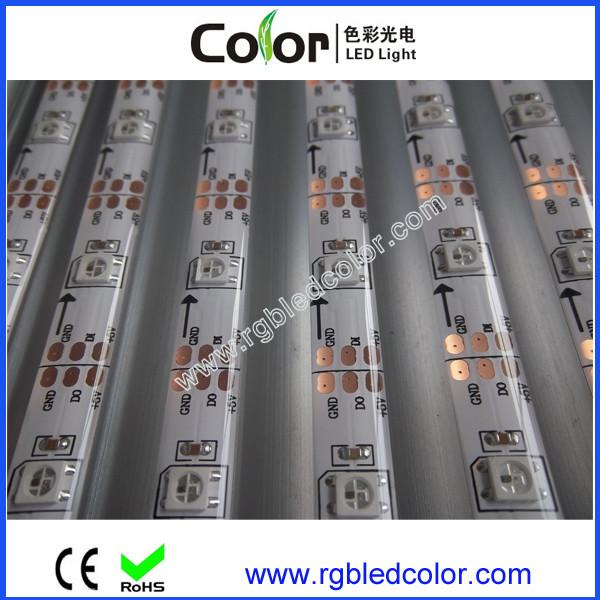

Each LED individual control led strip

IP67 silicone tube or epoxy waterproof full color rgb apa104

IP67 silicone tube or epoxy waterproof full color rgb apa104

IP65 waterproof with epoxy or silicone gel on the surface of the strip

IP67 silicone tube or epoxy waterproof full color rgb apa104

IP67 silicone tube or epoxy waterproof full color rgb apa104
