Specifications
Brand Name :
LC
Model Number :
LC8823
Certification :
CE,RoHs
Place of Origin :
Guangdong,China
MOQ :
1000pcs
Price :
0.06-0.08
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
500000pcs per Week
Delivery Time :
3-7days
Packaging Details :
1000pcs/bag,10bag per small inner box,40bag(40kpcs) per big box
LED Type :
5050 SMD LED
IC :
LC8823
Control Protocol :
LC8823,APA102,SK9822
Emitting Color :
Addressable RGB
Gray Scale :
256
Warranty :
2 Years
Lifespan :
50000H
Description

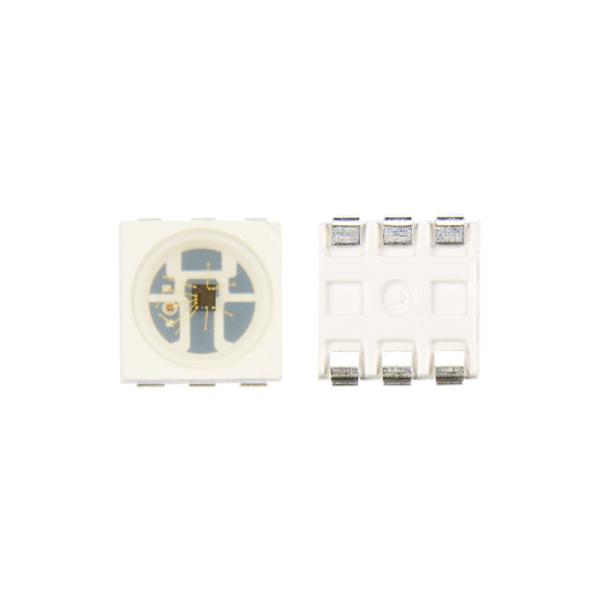

99% Gold wires Copper stand 5.0v led chip light SMD 5050 apa102 lc8823 fastled chip

1. General description

LC8823 is a two-wire transmission channel three (RGB) driving intelligent control circuit and the
light emitting circuit in one of the LED light source control. Products containing a signal decoding
module, data buffer, a built-in constant current circuit and RC oscillator; CMOS, low voltage, low
power consumption; 256 level gray scale PWM adjustment and 32 brightness adjustment; use the
double output, Data and synchronization of the CLK signal, connected in series each wafer output
action synchronization.

Datasheet of LC8823 LED

San`an high brightness lc8823 apa102 individual control rgb led chip

Application of the digital led chips, it can be use in for the led lighting strip,keyboards,and led displays and many pcba products. San`an high brightness lc8823 apa102 individual control rgb led chip

San`an high brightness lc8823 apa102 individual control rgb led chip
San`an high brightness lc8823 apa102 individual control rgb led chip
