Indoor P5 Hanging LED Display SMD High resolution 3G WIFI RGB Power supply
Indoor P5 Hanging LED Display SMD High resolution 3G WIFI RGB Power supply
Indoor P5 Hanging LED Display SMD High resolution 3G WIFI RGB Power supply
Indoor P5 Hanging LED Display SMD High resolution 3G WIFI RGB Power supply
Specifications
Brand Name :
SCXK
Model Number :
P5
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1-1000sqm
Price :
negotiation
Payment Terms :
T/T
Delivery Time :
7 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Supply Ability :
3000sqm per month
Module size :
320*160
Protection Level :
IP43
LED Shape & Size :
3mm smd3528
Brightness :
1800
Pixel Density :
40000
Driver mode :
1/16
View Angle :
120° / 60°
Max Power Consumption :
1000W /m2
working voltage :
220V 60HZ
Description

P5 INDOOR LED FULL COLOR DISPLAY

Indoor P5 Hanging LED Display SMD High resolution 3G WIFI RGB Power supply

Specifications

new product made in china,CE,ROHS certificate,fast delivery,high resolution,high refesh rate,good ad benefit

name technology parameter

1.pixel tube:

pixel pitch:5mm;

primary colors: red +green +blue;

color composing:1R1G1B; full color
2.unit box:

module size:320mm*160mm;

Module resolution:64*32;

cabinet size: 800mm*800mm;

cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

3.the whole screen:

the optimum viewing angel: horizontal 120°, vertical 120°

the optimum viewing distance:10-550m;

working temperature:-10°C ~ +60°C

relative humidity:≤95%RH;

cabinet weight:30kg/sqm;

4.operating voltage

AC220V±10% or 110V±10% or 380V or 240V or 440V

:average consumption:300W/m2

Max consumption: ≤1000 W/ sqm

5.master system:

PCTV non-linear editing card +DVI display card+ main

controller card+ optic fiber transmission(Optional)

6.main technology parameter:

1)driving mode:1/16 scan

2)refreshing rate:≥1000Hz/s

3)frame frequency:≥100Hz/s

4)gray scale/color:≥16.7M colors(Synchronized)

5)manage gray:≥72bit

6)brightness:≥1800cd/sqm

7)color temperature condition:3500K~9500K,be adjustable

8)adjusting style of brightness: hand movement/auto

9)video signal: RF,S-Video,DVD,VCD,EVD,RGB,RGBHV,YUV,YC,COMPOS

ITION etc. managing ability of signal:≥12bit.against Y revised curve: owns

3pcs above Y curve that can adjustable.

10)master system adopt: PCTV card+ DVI display card +main master card+

optic fiber transmission

11)aver trouble-free time:≥10000hours

12)evenness: between random adjacent pixel ≤0.5mm,module splicing space

<1mm

13)uniformity: strong pixel light, equal module brightness, without the

phenomenon of color spot looking from the right side when it turns to be all

white, and also the clean picture.

14)malfunction dot rate:<0.0001(to be discrete situation)

15)switch power loading:5V/40A

16)display mode of computer:1024×768

17)efficient communication distance:

reticle:100m(without middle relay),multiple mould optic fiber:500m,single

mould optic fiber 20km

18)Operating Environment Operating System / English Windows98/me/2000/

NT/XP
- Hardware configuration, Pentium 300MHz or above, ROM 64 m, standard

VGA Graphics Card 2s56
or above
- Related software Microsoft Media Player, Office 2000, Real Player in the

case of Real Player file
- LED Studio Software
- Control the way asynchronous screen (computing)
- An interface standard Ethernet
- Transmission distance CAT 5 cable: <100 m; single fiber: <10 km
7.software

LED studio

(SCXK)

We do

We are the professional manufacturer of outdoor and indoor led display. With more than 8 years experience, our led display enjoy good reputation .

As a professional LED manufacturer,we always very focus on improving workmanship and strengthening

quality control,products cover: indoor display(P2,P2.5,P3,P4,P5,P6,P7.62,P10),outdoor display(P4,P4.81,P5,P6,P8,P10,P16)-led single dual color display,full color display,led wireless car screen and led curtain screen,etc.

Applications

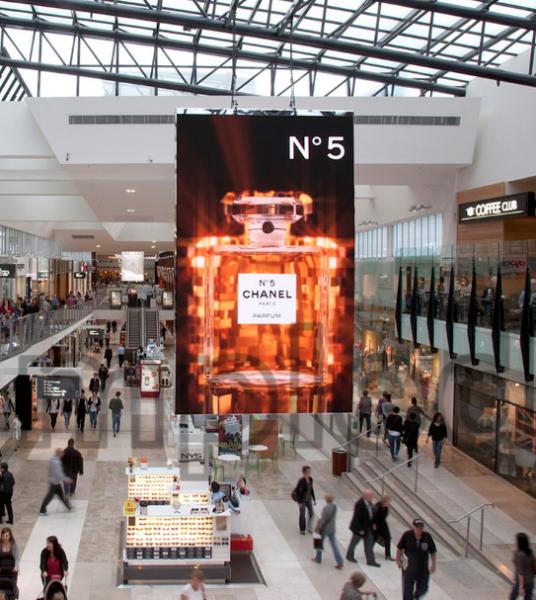

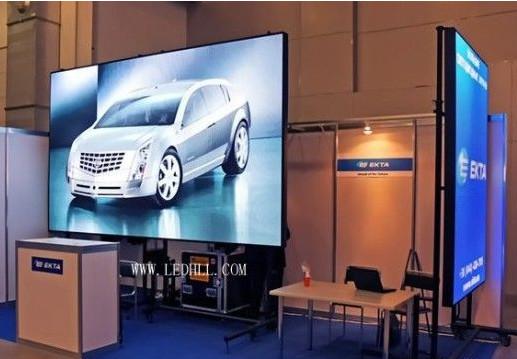

Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows, fashion

shows, concerts, ceremonies, entertainment,etc.

Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.

Production process:

1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Packaging and shipping

Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
