p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display
p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display
p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display
p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display
Specifications
Brand Name :
SCXK
Model Number :
SCXK-P6
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
made in china
MOQ :
5sqm
Price :
negotiation
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
material :
steel and aluminum
color :
RGB
Function :
video,words,text,picture
water proof :
IP65
View distance :
5m-200m
module size :
192mm x192mm
Description

p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display

P6 smd Outdoor Full Color LED Display Screen


6mm pixel pitch,1R1G1B,27777dots/sqm,P16 SMD Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see p6 SMD Outdoor Full Color LED Display Screen in many occasions.

We have 10 year production experience, We have 12-year design experience of offering solution, installation, and after-sales service, etc. According to different environment conditions, too cold temperature till -40℃ or too hot temperature till +55℃, we carefully choose different suitable materials and make the best offer for every customer. It differs in cables, LED lamps, plastic masks, waterproof materials, IC, etc. Faced with a variery of requirements, we offer flexible diverse solutions. We offer 24-hour all- direction online service.

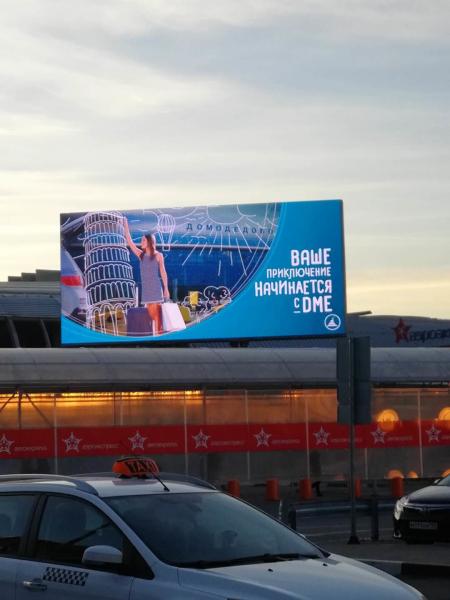

Application Areas

·---Outdoor advertising, digital billboards, advertising in big companies

·---Sports halls, fields, playgrounds.

·---Airports, bus stations and railway passenger terminals.

·---Facades of shopping malls, department stores, banks and car dealerships.

·---Architecture and social projects, information systems in cities.

·---Show-business, concerts, festivals, motor shows and other public events.


p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display

Specifictions
LED Lamps Type SMD3535(High Brightness LEDs)
LED Standard Real Pixel(1R1G1B)
Red Wavelength 625-630nm
Green Wavelength 515-530nm
Blue Wavelength 465-475nm
LED Module Pixel Pitch 6mm
Module Size 192mx192m
Module Resolution 32*32dots
LED Cabinet Cabinet Size 768mmX800mm
Cabinet Resolution 80pixels *768pixels
Cabinets Material Iron steel cabinet
LED Display Pixel Density 27777pixels/sq.m
Drive IC MBI5024
Power Supply Series connection
Brightness >8500cd/sqm
Display Color 16.7million
Viewing Angle 110°(Horizontal),50°(Vertical)
Best Viewing Distance 5m~200m
Max Power Consumption 600 w/sq.m
Average Power Consumption 300 w/sq.m
Weight 40Kgs/sq.m
Refresh Rate 3000hz
Input Voltage AC220V/50H or AC110V/60H
Output Voltage DC5V,40A
Grey Scale Levels 16bit
Display Colors R(1024) x G(1024) x B(1024)
MTBF 10,000 hours
Life-span 100,000 hours
Protection Level IP65
Failure percentage of leds less than 0.0003
Working Temperature -25℃~65℃
Drive Mode 1/8 scaning
Working Humidity 10%~99%
Control System Control method Synchronization & Asynchronization
Control System

LINSN Control System (sender,receiver,HUB with 75 interface,software)

( within xinxun Asynchronization)
Software LED Studio (LINSN)
Input Signal

MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/RA/RM/ASF/BMP

/GIF/PCX etc
PC Operating system Microsoft Windows 7, 98, 2000, XP and Vista

p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display

Methods for Quality Assurance
a. Aging
1. 100% fully test Condition: 72 hours with 256 gray level

b. Vibration Testing
Condition: 3-5 min up and down in 5mm range

Company information


p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led displayp6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display
p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display

Order Procedure
Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---
Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.


A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch

B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch

C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.

Production Flow

p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display
p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

♦ FAQ

What kind of payment terms you can accept ?

We can accept T/T and Western Union.

What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.

What is your delivery time ?

Within 7-35 days according to your area and quantity.

Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.

p6 192MM*192MM full color outdoor led video display with front maintenance cabinet commercial advertising led display

Contact Person: Joe Young

Business Developer.

Email : Joe-young@scxled.cn
Skype: JoeYscxled
Wechat & Whatsapp & Mobile : +86 13922107240
Shenzhen Shichuangxinke Electronics Co.,Ltd
"customer first, integrity first, innovation, and strive for perfection"
Add : Building No.A,YongXin Industrial Park,ShuiWei Village,DaLang Street,LongHua District,Shenzhen City
Tel:+86-0755-29190034
Fax:+86-0755-36810049
