Specifications
Brand Name :
SCX
Model Number :
SMD P3.91
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
product name :
P3.91 Stage Wedding Video Outdoor LED Display Screen with Novastar
Model number :
P3.91
Cabinet Material :
Die Casting Aluminum
Applications :
wedding stage
Scatter OOC Point :
<0.01%
Continuous OOC Point :
none
Description

P3.91 Stage Wedding Video Outdoor LED Display Screen with Novastar

Seamless Connection and Easy Installation
1. Cabinet Size: 500mm*500mm and 500*1000mm.
2. Seamless connection, 0.1mm gapline between 2 cabinets.
3. Fast lock for quick and easy installation.
4. Maximum support 50 pcs hanging in a collum.

Rental screen installation.

1. The order of the left-mounted screen body is as follows: from low to high, from the middle to the sides;
2. The number of a main power supply conventional carrying case is 15PCS, and it cannot be plugged in and out;
3. A network cable has a maximum load of 640,000 points, and the length of the network cable is preferably within 50m.

Brief Introduction:

LED video screen rental is one of the fastest growing areas in the live production and event industries. Adding personality and dimension to your event has never been easier. Have An Event Coming Up? We Can Help! Ryham Modular Die-casting Rental LED Display Can Be The Perfect Solution For Practically Any Event. Now P3.91 and P4.81 modular cabinet size 500x500mm or 500x1000mm, you can build your screen just by multiples the cabinet size. Constructed the screen onsite at the event in quick time will not a big problem now!

Product specification

SMD P3.91
Lamp size 2121
Resolution/mm 3.91
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 64510/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images

Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

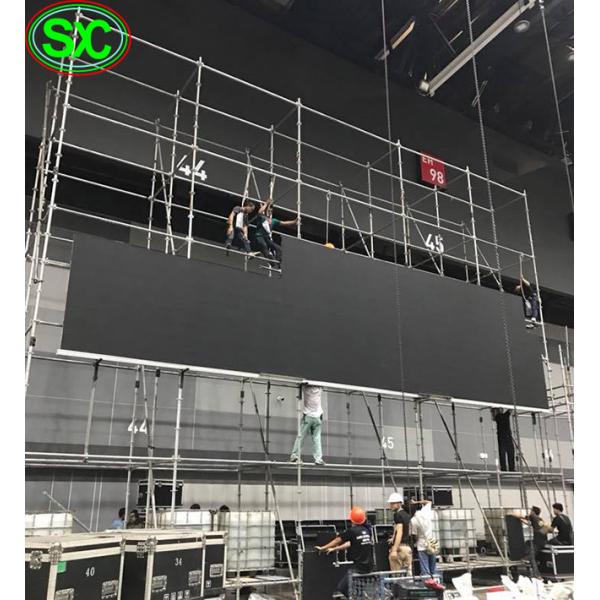

Our project
P3.91 Stage Wedding Video Outdoor LED Display Screen with Novastar
