High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan
Specifications
Brand Name :
SCXK
Model Number :
P8
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
5sqm
Price :
by negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
10 working days
Packaging Details :
At your option - flight case, wooden case or carton
Module size :
256*128
Scan :
1/4
LED shape&size :
3mm Smd3535
Cabinet size :
1024*768
Brightness :
5500
Max power consumption :
850
Avarage power consumption :
280
Min.View Distance :
8
Description

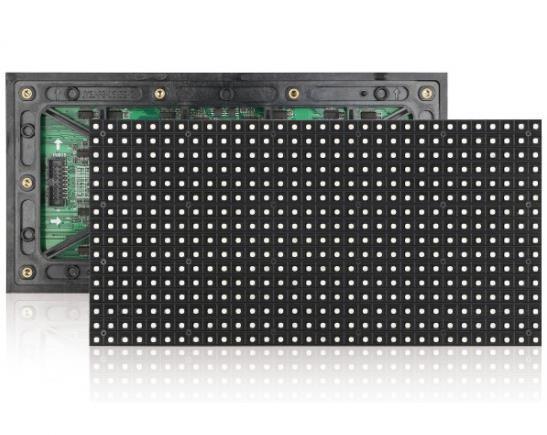

High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65

Pixel Pitch: 8 mm
Cabinet: 768mm×768mm
Die-casting steel alloy

Application: The hot product for indoor rental application ,advertisng, modeling, wedding ceremony, shows, stages, commercial use and other fields.

P8 Outdoor SMD3535 Advertising LED Display LED Sign Features:
1) Adopting SMD LED ensure high quality for the whole LED screen.
2) Perfect design of PCB,good heat emission capability,hence,stability of the P8 SMD3535 LED module.
3) Brightness 6500CD/m2, IP65 cabinet design, can be used for permanent outdoor LED display project.
4) 8mm pixel pitch is suitable for outdoor commercial LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Customized cabinet design,support all kinds of control system,LINSN, NOVASTAR,Colorlight, XIXUN,etc.
7) Warranty for 2 years


High Resolution P8 Outdoor LED Advertising Screens Full Color SMD3535 IP65 1/4 Scan

Parameters Value
Pixel Pitch(㎜) 8
Pixel Density(pixel/㎡) 15625
Pixel Component 1R1G1B
LED Configuration SMD3535
Panel Dimension(W×H)㎜ 256*128
Scan Mode 42008
Cabinet Dimension(W×H)㎜ 768*768/Customized
Cabinet Material Iron/Customized
Brightness(cd/㎡) ≥6500
Color Temperature 3200K-9500K
Viewing Angle(V) 140°
Viewing Angle(H) 140°
Contrast Ratio 125.0006944
Max Power Consumption(w/㎡) 1100
Ave Power Consumption(w/㎡) 450
Operating Power Source AC85~264V(47-63Hz)
Frame Frequency(Frame/S) 60
Refresh Rate(Hz) ≥1200
Gray Level RGB65536Grade
Brightness Adjustment Level 256Grade
Brightness Adjustment Mode Manual/Automatic/Programmable
Control Distance UTP＜100m；Muti Mode Fiber＜500m；Single Mode Fiber＜10Km
Operating Temp ﹣20℃－﹢50℃
Operating Humidity 10%－90%RH
Protecting Rating IP65
MTBF ＞10000h
LED Life Span ＞100000h
LED Best View distance 8m-200m

Info:

Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm

Our Services:
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)

After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.

Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.

FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .

2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.

3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in on

Your special wishes and requirements for the product will be carefully considered.
We are open to counter offers of cooperation.
