High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
Specifications
Brand Name :
SCXK
Model Number :
SCXK-P6
Certification :
CE,ROHS ,FCC,UL
Place of Origin :
China
MOQ :
5sqm can be available
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-8days
Packaging Details :
the led display can be packaged with wooden box,paper box,flight case
module size :
192mm x192mm
pixel density :
27777dots/sqm
cabinet size :
960mm x 960mm
IC :
MBI5124,MBI5024
control system :
Nova star and linsn .3G ,U-DISK ,wifi
usage :
video and picture usage
Power supply :
Meanwell or chuanglian
warranty :
3 years warranty
Life usage :
10 years lifeuse
Description

SMD3535 Full color water-proof iron and steel cabinet fixing usage LED Billboards3 years warranty.

Quick details

1.Application

Widely use in stadiums, advertisement, banks, securities exchange, stations,

shopping malls, postal offices, schools, restaurants, entertainment, enterprises ,highway etc

2.Market:

North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

specification.

LED Lamps Type SMD3535(High Brightness LEDs)
LED Standard Real Pixel(1R1G1B)
Red Wavelength 625-630nm
Green Wavelength 515-530nm
Blue Wavelength 465-475nm
LED Module Pixel Pitch 6mm
Module Size 192mm x192mm
Module Resolution 32*32dots
LED Cabinet Cabinet Size 960mmX960mm
Cabinet Resolution 160pixels *160pixels
Cabinets Material Sealed Iron Cabinet
LED Display Pixel Density 27777pixels/sq.m
Drive IC MBI5124
Power Supply Series connection
Brightness >8000cd/sqm
Display Color 16.7million
Viewing Angle 160°(Horizontal),110°(Vertical)
Best Viewing Distance 6m~200m
Max Power Consumption 600 w/sq.m
Average Power Consumption 300 w/sq.m
Weight 40kgs/sq.m
Refresh Rate 2000hz
Input Voltage AC220V/50H or AC110V/60H
Output Voltage DC5V,40A
Grey Scale Levels 16bit
Display Colors R(1024) x G(1024) x B(1024)
Life-span 100,000 hours
Protection Level IP65
Failure percentage of leds less than 0.0003
Working Temperature -25℃~65℃
Drive Mode 1/8
Working Humidity 10%~99%

High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size

the outdoor full color led display module ( smd and dip are available)
Number Drive mode Moduel size Resolution Led standard pixel density
P4 1/8 scan 256x128mm 64x32 3in1 62500
p4.81 1/13scan 250x250mm 52x52 3in1 43222
p5 1/8 scan 160x160mm 32x32 3in1 40000
P6 1/8 scan 192x192mm 32x32 3in1 27778
P8 1/4scan 256x128mm 32x16 3in1 15625
P10 1/4scan 160x160mm 16x16 3in1 10000
P12 1/4scan 192x192mm 16x16 3in1 6944
P16 static scan 256x256mm 16x16 3in1 3906
P20 static scan 320x160mm 16x8 3in1 2500
P25 static scan 200x200mm 8x8 3in1 1600
P31.25 static scan 250x250mm 8x8 3in1 1024
the indoor full color led display module( indoor usage only)
Number drive mode module size resolution led standard pixel density
p1.923 1/32scan 246x246mm 128x128 3 in 1 270420
p2 1/32scan 128x64mm 64x32 3 in 1 250000
p2.5 1/16scan 160x160mm 64x64 3 in 1 160000
p3 1/16scan 192x192mm 64x64 3 in 1 111111
p3.91 1/16scan 250x250mm 64x64 3 in 1 65410
p4 1/16scan 256x128mm 64x32 3 in 1 62500
p5 1/16/scan 320x160mm 64x32 3 in 1 40000
p6 1/16scan 384x192mm 64x32 3 in 1 27778
p7.62 1/8 scan 244x244mm 32x16 3 in 1 17222

Competitive advantage

(1)Adequacy: With the specific equipment, spare parts allocation adequate, ensure replacement in the first time of equipment failure;

(2)Necessity: On the basis of previous maintenance experience, we configure the spare parts are the key parts of the equipment,

so as to ensure the economic allocation;

(3)Economic practicality: In order to deal with the fault in the shortest time, we configure the spare parts are complete module or unit,

through our training, the owners can easily replace the spare parts, so as to ensure the normal operation of the system.

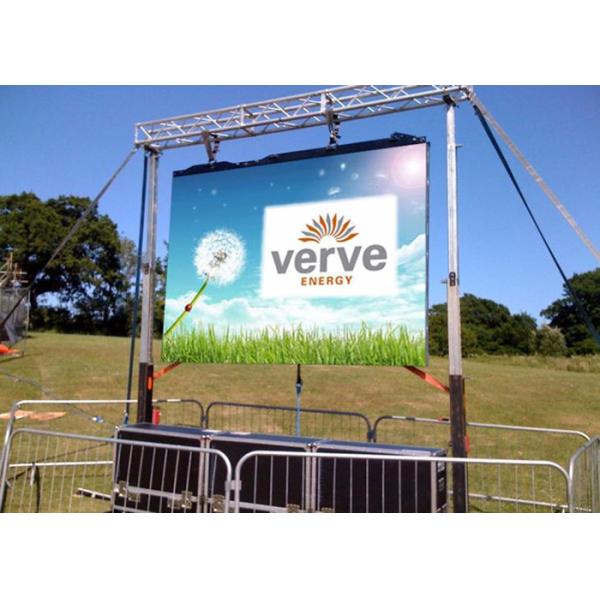

Project case as follows:

High Brightness 3535 SMD LED Billboard 192mm X192mm Module Size
