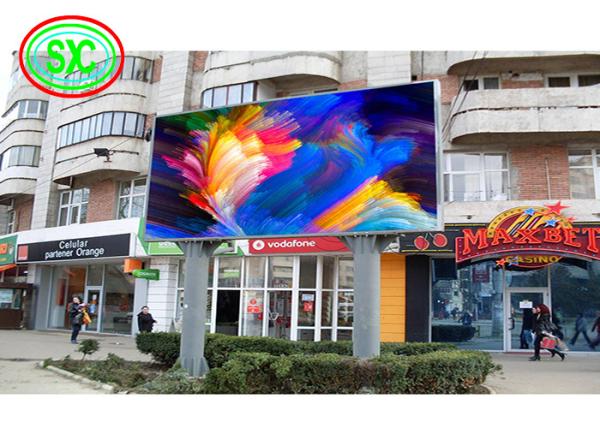

Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Specifications
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1sqm
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
5- 10 working days
Packaging Details :
wooden case or flight case are avialable.
Pitch :
10mm
Pixel configuration :
rgb 3in1
Pixel density :
10000 dots/sqm
Module size :
320x160mm
Cabinet size :
960x960mm
Brightness :
≥6500cd/m2
Driving mode :
1/4 scan
Warranty :
3 year
Description

Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty

Module Parameter

Pixel pitch10mm
Pixel configuration1R1G1B
LED type3-in-1 SMD 3535
Module size320x160mm
LED lampKingLight or Nationstar
Module resolution32x16dots
Module quantity per cabinet18pcs


Cabinet Parameter

Cabinet size960x960mm
Cabinet materialIroned steel cabinet
Cabinet weight32.5kg
Ingress protectionFront/Rear IP65/IP54


Whole Screen Parameter

Pixel density10000 dots/m²
Brightness≥7000 cd/m²
Viewing angleH≥120° V≥120°
Min.viewing distance10m
Max.power consumption800W/m²
Avg.power consumption280 W/m²
Working voltage110~220VAC±15%
InterfaceHUB75
Colors16.7millon colors
Gray level14-16bits
Frame frequency≥60frames/s
Refresh rate≥600Hz
MTBF≥10000 hours
Lifespan≥50000 hours
Protective functionOver-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature-10℃ ~ +60℃
Operating humidity10-80% no condensation
Storage temperature-20℃ ~ +60℃
Storage humidity10-85% no condensation


Control System Parameter

Video signal (with video processor)AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperatureAdjustable by software
Brightness level256 levels, automatic adjustment by software
Control wayComputer, video-synchronous, real-time, off-line, wireless, internet etc.


Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Product item
Many other hot product, welcome to visit our company!
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Company profile
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Certificate
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty
Packaging and shipping
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty

Our service

Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need

Contact details
Salesman: Andy
Skype: Andy liu Wechat:liu15179028073
Tel:+86-15797878183 (whatsapp)
E-mail:Andy_he@scxled.cn
Web: www.rgbleddisplays.com or www.scxled.com
Save your time and money with us!
