Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet
Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet
Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet
Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet
Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet
Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet
Specifications
Brand Name :
SCXK
Model Number :
P8 or P10
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1sqm
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
5-10 working days
Packaging Details :
wooden case or flight case are available.
Pixel pitch :
8mm or 10mm
Pixel configuration :
SMD 3-IN-1
Pixel density :
15625dots/m2 or 10000dots/m2
Module size :
320x160mm
Cabinet size :
960x960mm
Cabinet material :
ironed steel cabinet
Brightness :
≥6000 cd/sqm
Warranty :
3 year
Description

P8 or P10 outdoor advertising football/basketball stadium field playground led display screen

Product characteristic

The stadium led displays are widely used in the football field, basketball court , swimming center and diving center.
1. Show function(advertising, such as Nike, Coca cola,etc)
2. Function of time and score(live showing the score)
3. Information processing function
4. Emergency treatment function

Parameter specification

model P8 P10
Pixel unit module Pixel pitch(mm) 8 10
Pixel density (dots/sqm) 15625 10000
LED type SMD SMD
Module size(mm) W320xH160 W320×H160
Pixel composing RGB full color RGB full color
Pixel unit screen screen size(mm) 960*960mm 960*960mm
module Resolution (nits) 32*16 32*16
Cabinet structure Water-proof Water-proof
screen material Ironed steel cabinet Ironed steel cabinet
Protect degree IP65 front ,IP54 rear IP65 front ,IP54 rear
Viewing distance(m) 8-100m 10~100m
Brightness(cd/sqm) ≥6000 cd/sqm ≥6000 cd/sqm
Power consumption (w/sqm) Max 850W/sqm ,Min 280W/sqm Max 600W/sqm ,Min 200W/sqm
Driving IC 1/4 scan MBI Brand Driver 1/4 scan MBI Brand Driver
Refresh rate(HZ) ≥960-2000 ≥960-2000
Viewing angel(c) H120 V120 H120 V120
Other parameter Image adjustment contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
Image processing Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
Brightness uniformity The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
Gray 65536
Color temperature/contrast Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
Transmitting Distance The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
Input Signal RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
Control System PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
Average No Failure Time 20000 hours 20000 hours
Life span 100,000 hours 100,000 hours
Out-of Control rate 0.0001 0.0001
To floor drain current Less than 3.5MA Less than 3.5MA
Control system Synchronized Synchronized
Operating Environment Temperature -20°C—65°C Optional -20°C—65°C Optional

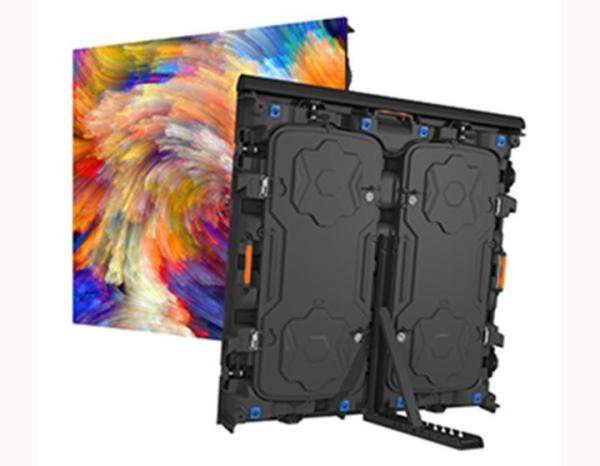

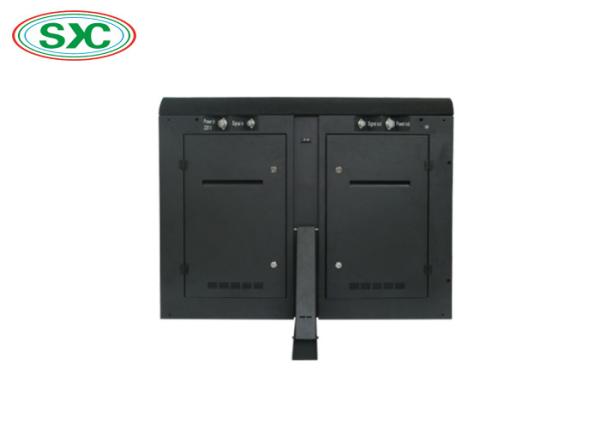

Cabinet photo

Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet

Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet

Buying Guides
In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)

After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.

Company profile
Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet
Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet

Certificate
Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet

Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet


Contact
Salesman: Andy
Skype: Andy liu
Wechat: liu15179028073
Tel: +86-15797878183(whatsapp)

E-mail:Andy_he@scxled.cn
Web: www.rgbleddisplays.com

Save your time and money with us!
