High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
Specifications
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1sqm
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days
Packaging Details :
wooden case.
Pixel pitch :
10mm
Pixel configuration :
SMD 3-IN-1
Pixel density :
10000 dots/sqm
Module size :
320x160mm
Cabinet size :
960x960mm
Cabinet material :
Ironed steel cabinet
Brightness :
≥6500cd/m2
Driving mode :
1/2 scan
Description

High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan


Product Features
1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
2) Good heat emission, water proof and stable performance.
3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal.
4) High resolution and definition of screen image, clear and non-flash screen image.
5) Supports video and radio frequency input, special structure can be freely assembled.
Module Parameter

Pixel pitch 10mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 3535
Module size 320x160mm
LED lamp KingLight or Nationstar
Module resolution 32x16dots
Module quantity per cabinet 18pcs


Cabinet Parameter

Cabinet size 960x960mm
Cabinet material Ironed steel cabinet
Cabinet weight 32.5kg
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 10000 dots/m²
Brightness ≥7000 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 10m
Max.power consumption 800W/m²
Avg.power consumption 280 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency ≥60frames/s
Refresh rate ≥600Hz
MTBF ≥10000 hours
Lifespan ≥50000 hours
Protective function Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature -10℃ ~ +60℃
Operating humidity 10-80% no condensation
Storage temperature -20℃ ~ +60℃
Storage humidity 10-85% no condensation


Control System Parameter

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.

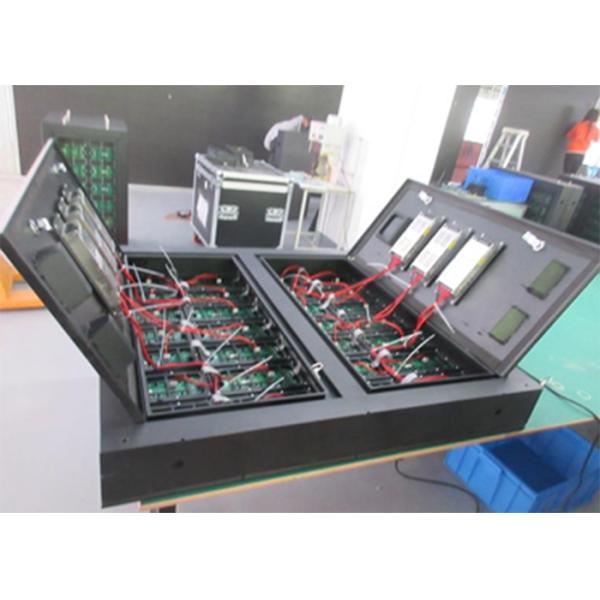

Cabinet detials
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
Product item
Many other hot product, welcome to visit our company!
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
Company profile
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
Certificate
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan
Packaging and shipping
Shipping by sea,air or DHL,multiple shipping ways for your choice.
High Resolution Outdoor Full Color LED Display SMD P10 1/2 Scan

Our service

Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need

Contact details
Salesman: Andy
Skype: Andy liu Wechat:liu15179028073
Tel:+86-15797878183(whatsapp)
E-mail:Andy_he@scxled.cn
Web: www.rgbleddisplays.com or www.scxled.com
Save your time and money with us!
