Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Specifications
Brand Name :
SCXK
Model Number :
SCXK-P4
Certification :
CE,ISO,FCC,UL
Place of Origin :
China(Mainland)
MOQ :
5sqms
Price :
1000-1100USD/sqm
Payment Terms :
T/T, Western Union
Supply Ability :
5000sqms/month
Delivery Time :
12-15 working days after receiving your down payment.
Packaging Details :
Wooden and flight case,it's all up to you.
Pixel Pitch :
4MM
Usage :
Rental/Fixed
Module Size :
256*128MM
Cabinet Size :
512*512MM
Resolution :
64*32
Scan Mode :
1/16
Working Voltage :
DC5V
Description

Flexible Module P4 Can Be Changed in Any Shape Rental LED Display

Specifications

Flexible Module P4 Rental LED Display
Resolution/mm4
Pixel configuration1R1G1B
Pixel density/pixels/m²62500/square meter
Module resolution64x32mm
Module size/mm256x128mm
View distance4-150m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness>1500cd/square meter
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle120(degrees)
Signal Process bit10 or 16bit
Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
Driving modeConstant driving current
Scanning mode1/16 SCANNING
Frame rate60Hz
Refresh frequency>3000Hz
Control modeComputer synchronous
Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point<1/10000
Working hours≥72hours
Mean Time Between Failure>5000hours
Life time100000hours
Life-all-white(brightness halving)50000hours
Environment temperature rangeOperating temperature range: -20-45℃
Self-check technologyLED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoringRemote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environmentWindowsNT,Windows1999,WindowsXP
Luminous point width between centresDeviation<3%
Brightness uniformity<10%
WaterproofIP43
Color uniformity(chromaticity coordinate)±0.003
Power supply requestAC85-264V(50Hz-60Hz)
Contrast(1000:1)
System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)working:10-95%
Humidity(storing)storing:10-95%

What we do?
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd Founded in 2005, is a manufacture company of producing indoor and outdoor full color led display.Our products include displays,modules and other small things.

SCXK enjoys a global recognition with high-quality products, excellent sales services and well laid-out after-sales service, which is widespread throughout six continents. LAMP has LED video screens installed all over the world and plenty of representative cases can be found in Hong Kong, Marco, South Asia, Africa and America.

Anyway,we do really hope can cooperate with you.Welcome to visit our website and choose the products you need,we will promise you the high quality goods for good price!

The short advantage of flexible module full color led display:

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle
Flex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing AngleFlex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing AngleFlex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing AngleFlex Module Screen P4 Rental LED Display DC5V 1/16 Scan Mode 120 Degree Viewing Angle

FAQ

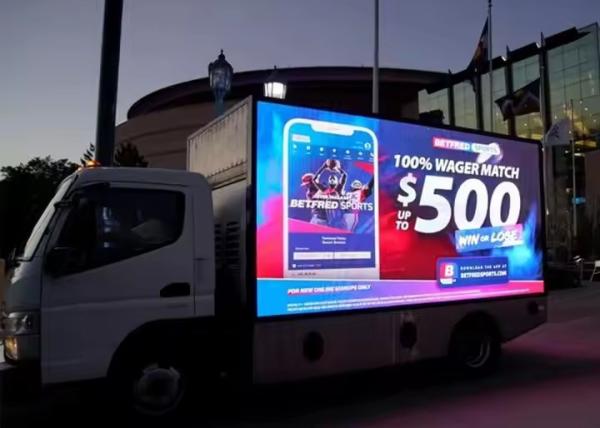

Q1. What is the truck LED screen size? A: The LED screen size is customized based on truck box size.

Q2: How to control the truck LED display? A: We use Novastar/Colorlight control system, supports WIFI/LAN/USB/4G wireless control.

Q3: Can you provide installation structures? A: Yes, we can provide installation structures for wall-mounted, pillar-mounted.

Q4. Do you test all your goods before delivery? A: Yes, we have 100% test for 72hrs before delivery.

Q5: How long is your warranty? A: 5 years, we will be responsible for free repairment or replacement for defective parts.

Q6: What will you do if we have problems related to installation, configuration and use? A: Our after-sale service team will solve all the problems, until the screen can work normally.

Q7. What is your terms of payment? A: 50% as deposit, 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q8. What is your terms of delivery? A: EXW, FOB, CIF, CFR, DDP, DDU, customer specified freight forwarder or negotiable mode of transport.

Q9. What is your delivery time? A: Generally 15-20 days after receiving the deposit. The specific delivery time depends on the quantity of the order.
