Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Specifications
Brand Name :
SCX
Model Number :
P2.5
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1sqm
Price :
negotation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
5-8 days
Packaging Details :
wooden case or flight case.
Pixels :
2.5mm
Module size :
160x160mm
Pixel density :
160,000dots/sqm
Power supply :
G-energy or others
Cabinet size :
480x480mm
IC&Lamp :
kinglight or nationstar SMD 2121 RGB
Brightness :
>1200 cd/sqm
Warranty :
3 year
Description

Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness​

Features:
1. First-class LED chip: Epistar from Taiwan.
2. With pure golden wire connection in LED.
3. Grand A row material for module frame and mask.
4. 4 layers PCB and copper plating thickness > 18mil.
5. Ag alloy solder paster to ensure good soldering on PCB.
6. Stainless steel screws when assembly.
7. Long-term Brightness capacity throughout product lifetime.
8. 3 years warranty.
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness

Specification:

Module

Pixel pitch2.5mm
Pixel configuration1R1G1B
LED type3-in-1 SMD 2121
Module size160x160mm
Module weight0.4kg
Module resolution64x64dots
Module quantity per cabinet 9pcs

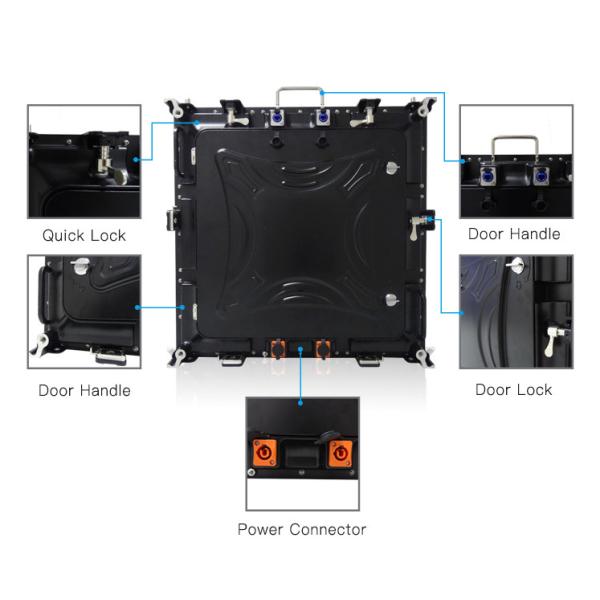

Cabinet Parameter:

Cabinet size480x480mm
Cabinet materialiron or aluminum cabinet
Cabinet weight6.6kg
Cabinet resolution192x192 dots
Ingress protectionFront/Rear IP65/IP54


Whole Screen Parameter

Pixel density160000 dots/m²
Brightness>1200 cd/m²
Viewing angleH≥120° V≥60°
Min.viewing distance2.5m
Max.power consumption800W/m²
Avg.power consumption280 W/m²
Working voltage110~220VAC±15%
InterfaceHUB75
Colors16.7millon colors
Gray level14-16bits
Frame frequency≥60frames/s
Refresh rate≥480Hz
MTBF≥10000 hours
Lifespan≥50000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.

Operating temperature -10℃ ~ +40℃
Operating humidity10-80% no condensation
Storage temperature-20℃ ~ +60℃

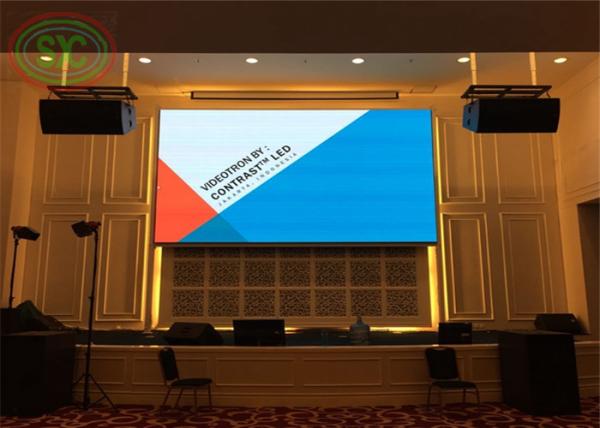

Installation case
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness


Company profile
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness

Certificate
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Small Pitch indoor Advertising LED Screens 2.5mm Pixels HD 1500 cd/sqm Brightness

Our service

Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!

Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need

Save your time and money with us!
