P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density
P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density
P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density
P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density
P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density
P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density
P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density
P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density
Specifications
Brand Name :
SCXK
Model Number :
SCXK-P10
Certification :
CE,ROHS ,FCC,UL
Place of Origin :
China
MOQ :
1sqm can be available
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-8days
Packaging Details :
the led display can be packaged with wooden box,paper box,flight case
Color :
full color
pixel density :
10000dots/sqm
cabinet size :
960mm x 960mm
power supply :
chuanglian and meanwell power
Led light :
Nationstar,kingstar
control system :
Nova star and linsn
usage :
video and picture usage
Description

Video Picture Full Color Electronic Billboard Advertising 10000dots / Sqm Pixel Density

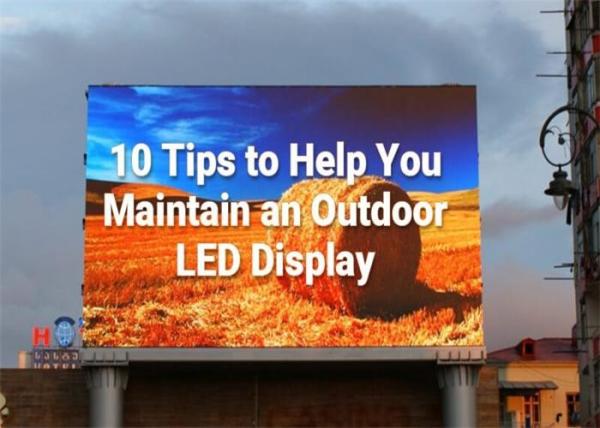

Shichuangxinke full color LED display could be used in outdoor environment such as airport, highway, cultural or relax square,

commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof,

dustproof, antistatic, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.

Product description,

We will adopt the meanwell power supply.MBI5124 IC,Epistar chip, iron and steel water-proof cabinet..

The led display can work well under sunshine and rain. the module size is 320mm x160mm,

module resolution is 32 x16, and the cabinet size can be custom by you.

It's 960mm x960mm 960mm x800mm,800mm x800mm, 640mm x640mm.

All kinds of the size can be available.it will satisfy all your requirement.

In addition,we will provide the better after-sales service .steel structure drawing pictures.

All kinds of the consult service is free of charge.

1, 3 years warranty, more than 10 years lifeuse, 3% spare parts will be sent without charge.
2,SMD 3 in 1 technical supports. water-proof cabinet .High brightness and flatness, uniform color.
3, fast delivery time , price support. good for advertisement,publicity usage, videos usage
P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density

The outdoor smd 3535 led display parameter as follows.

LED Lamps Type SMD 3535(High Brightness LEDs)
LED Standard Real Pixel(1R1G1B)
Red Wavelength 625-630nm
Green Wavelength 515-530nm
Blue Wavelength 465-475nm
LED Module Pixel Pitch 10mm
Module Size 320mm x160mm
Module Resolution 32*16dots
LED Cabinet Cabinet Size 960mmX800mm
Cabinet Resolution 96pixels *80pixels
Cabinets Material Sealed Iron Cabinet
LED Display Pixel Density 10000pixels/sq.m
Drive IC MBI5124
Power Supply Series connection
Brightness >7500cd/sqm
Display Color 16.7million
Viewing Angle 160°(Horizontal),110°(Vertical)
Best Viewing Distance 10m~200m
Max Power Consumption 600 w/sq.m
Average Power Consumption 300 w/sq.m
Weight 40kgs/sq.m
Refresh Rate 2000hz
Input Voltage AC220V/50H or AC110V/60H
Output Voltage DC5V,40A
Grey Scale Levels 16bit
Display Colors R(1024) x G(1024) x B(1024)
Life-span 100,000 hours
Protection Level IP65
Failure percentage of leds less than 0.0003
Working Temperature -25℃~65℃
Drive Mode 1/4 scaning
Working Humidity 10%~99%

P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel DensityP2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density

All kinds of the full color led display paramter.

the outdoor full color led display module ( smd and dip are available)
Number Drive mode Moduel size Resolution Led standard pixel density
P4 1/8 scan 256x128mm 64x32 3in1 62500
p4.81 1/13scan 250x250mm 52x52 3in1 43222
p5 1/8 scan 160x160mm 32x32 3in1 40000
P6 1/8 scan 192x192mm 32x32 3in1 27778
P8 1/4scan 256x128mm 32x16 3in1 15625
P10 1/4scan 160x160mm 16x16 3in1 10000
P12 1/4scan 192x192mm 16x16 3in1 6944
P16 static scan 256x256mm 16x16 3in1 3906
P20 static scan 320x160mm 16x8 3in1 2500
P25 static scan 200x200mm 8x8 3in1 1600
P31.25 static scan 250x250mm 8x8 3in1 1024
the indoor full color led display module( indoor usage only)
Number drive mode module size resolution led standard pixel density
p1.923 1/32scan 246x246mm 128x128 3 in 1 270420
p2 1/32scan 128x64mm 64x32 3 in 1 250000
p2.5 1/16scan 160x160mm 64x64 3 in 1 160000
p3 1/16scan 192x192mm 64x64 3 in 1 111111
p3.91 1/16scan 250x250mm 64x64 3 in 1 65410
p4 1/16scan 256x128mm 64x32 3 in 1 62500
p5 1/16/scan 320x160mm 64x32 3 in 1 40000
p6 1/16scan 384x192mm 64x32 3 in 1 27778
p7.62 1/8 scan 244x244mm 32x16 3 in 1 17222
p10 1/8 scan 320x160mm 32x16 3in 1 10000
Our advantage,

1. Virtual pixel display screen can be adopted for outdoor displays to increase

the resolution up to four times of real pixel, making the images softer and vivider

2. LED Single-lamp maintenance with low cost.

3. Good heat dissipation capability because of the unique design of vent fan.

4. Environmental-friendly and energy-saving.

P2.5 Video Image Full Color LED Die-Cast Aluminum 10000 Points/Square Meter Pixel Density
