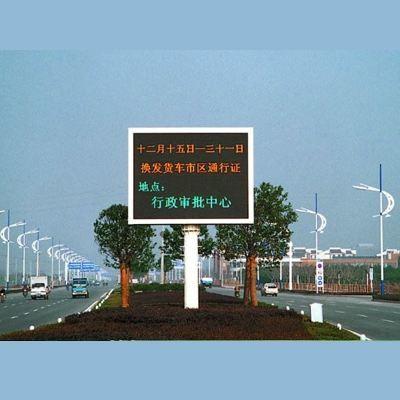

Street Road Side Full Color LED Display Screen P8 P10 Outdoor High Brightness Advertising Billboard

♦ Technical Parameters of outdoor led billboard

Module Parameter

Pixel pitch	6mm
Pixel configuration	1R1G1B
LED type	3-in-1 SMD 3535
Module size	192x192mm
LED lamp	KingLight or Nationstar
Module resolution	32x32dots

Cabinet Parameter

Cabinet size	960x960mm
Cabinet material	Ironed steel cabinet
Cabinet weight	10.5kg
Ingress protection	Front/Rear IP65/IP54

Whole Screen Parameter

Pixel density	27778 dots/m²
Brightness	≥6000 cd/m²
Viewing angle	H≥120° V≥120°
Min.viewing distance	10m
Max.power consumption	750W/m²
Avg.power consumption	290 W/m²
Working voltage	110~220VAC±15%
Interface	HUB75
Colors	16.7millon colors
Gray level	65536
Refresh rate	≥1920Hz
MTBF	≥100,000 hours
Lifespan	≥50000 hours
Protective function	Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc.
Operating temperature	-10℃ ~ +60℃
Storage temperature	-20℃ ~ +60℃

Control System Parameter

Video signal (with video processor)	AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature	Adjustable by software
Brightness level	256 levels, automatic adjustment by software
Control way	Computer, video-synchronous, real-time, off-line, wireless, internet etc.

Detailed picture

P10 outdoor led screen features

1. Outdoor LED display is of high brightness, with a general brightness of 5500cd and a maximum brightness of more than 10000cd. Even under the irradiation of strong light, it can be clearly seen with good display effect.

2. As a kind of advertising media, outdoor LED display screen has a variety of forms of advertising, which is more ornamental, wider and more attractive than traditional advertising. 3. Outdoor LED display advertising content update speed is fast, the administrator can change the display advertising content at any time according to the actual situation, the operation is relatively simple. 4. Outdoor LED display has good waterproof performance, strong uv resistance, protection grade above IP65, and can deal with all kinds of bad weather.

Certificates:

♦ Our mission:

To be the premier providr of creative,marketing and innovative solutions devoted to helping other companies succeed and grow.

Why Choose us?

Packing&shipping

Packing: wooden case, flight case for choose

shipping: by air, sea, train, DHL, you are the boss

FAQ

1. How can I place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /Whatsapp, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you to choose. The customized service also could be provided.
3. What about the lead time for an order?
Always: 7-17 days after receiving your payment, as your order quantity, sometimes we have stock, can delivery within 7 days.
4. What about the warranty?
We have 2~5 years of quality guaranteed, spare parts such as the led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
5.How about the quality?

Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship, Each step has strict quality control systems to ensure led display with good quality.
6. Can you offer technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to do if you are really don't know how to control(Our Engineer can text English, we can saving more time ).
