Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm
Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm
Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm
Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm
Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm
Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm
Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm
Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm
Specifications
Brand Name :
SCX
Model Number :
SMD P3.91
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
product name :
Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm
Usage: :
indoor
Colors :
16.7million
Operating humidity :
10% ~ 95%
IP rating: :
IP43
Screen Dimension: :
Customized
Description

Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm

Features:

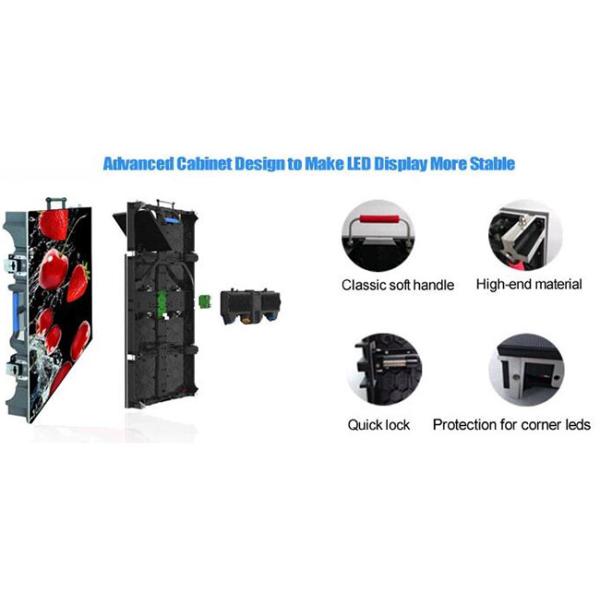

1) Light weight: Cabinet size 500mm*500mm, less than 6kgs/cabinet. Save transpiration cost.

2) Thin: It is die-casting aluminum cabinet, thus it is featured by high strength, toughness, precision and it is hard to be deformed. The edge is just 36mm.

3) Easy installation: The cabinet is modular designed, each cabinet of the screen can be easily dismantled and assembled (replaced).

4) Compatible: New structure design satisfies hoisting and ground-support assembling. P3.91 and P4.8 are compatible.

5) Long Life Span: Excellent heat dissipation design, LED screen can run long time.

Application:

With High quality black SMD and mature high standard QC from MPLED, our rental led display use for so many indoor/outdoor events, like concert, DJ music, expo, car show, fashion model show, shopping mall promotion, kids activities, wedding, hotel, sports match, beer party, new product presentation, etc.

Lead time:

Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Product specification

SMD P3.91
Lamp size 2121
Resolution/mm 3.91
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 64510/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


Flexible Theatre HD Stage Background Led Display Video Wall 500*500mm

Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
