Specifications
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO/CB/UL
Place of Origin :
ShenZhen in China
MOQ :
3 sqm
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Pixel pitch :
10mm
Tube Chip Color :
Full color
Led Type :
SMD3535
Display Function :
Video/Text/Image
Waterproof :
IP65
MBI :
5024
Viewing angle :
H:160 V:140
Optimal viewing distance :
>=10m
Voltage :
DC5V
Brightness :
>=5000cd/m2
Module size :
320*160mm
Description

Digital Big Screen P10 Full Color Outdoor Advertising Led Display Screen

♦ Outdoor LED billboard advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Outdoor full color led display product specification

outdoor SMD P10
Lamp size 3535
Resolution/mm 10
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 320x160
View distance ≥10m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >5000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/4
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <600W
Average power:/㎡ <200W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

Video Big Screen P10 Full Color Outdoor Advertising Led Display Screen

♦ Description:

•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.

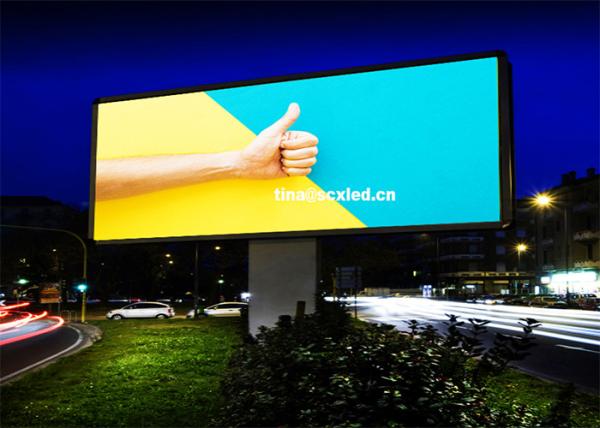

♦ Project in Malaysia

Video Big Screen P10 Full Color Outdoor Advertising Led Display Screen
