High definition advertisement Stadium LED Display Brightness 5500 , cabinet 1024*786 stadium led display screen
High definition advertisement Stadium LED Display Brightness 5500 , cabinet 1024*786 stadium led display screen
High definition advertisement Stadium LED Display Brightness 5500 , cabinet 1024*786 stadium led display screen
High definition advertisement Stadium LED Display Brightness 5500 , cabinet 1024*786 stadium led display screen
Specifications
Brand Name :
SCXK
Model Number :
P8
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1sqm
Price :
negotiation
Payment Terms :
T/T
Delivery Time :
7-10 working days
Packaging Details :
flight case, wooden case
Supply Ability :
3000sqm per month
Pixel Density :
15625
Brightness :
7000
Control System :
LSN
LED Shape & Size :
3mm smd3535
Module Size :
256*128
Driver mode :
1/4 scan
Operation Power :
220V 60HZ
Description

High definition advertisement Stadium LED Display Brightness 5500 , cabinet 1024*786

Product advantage:

1.We have specilsed in indoor&outdoor LED display and LED modules more than 10 years.

2.We are the manufacturer and wholesaler for LED display, LED module,flexible LED strip light injection LED module and LED accessories. We can control the quality and save cost.

3.New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
4.The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
5.Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;

6. 100% QC inspection before Shippment. Module surface flatness ± 0.2mm, the entire screen has good flatness

High definition advertisement Stadium LED Display Brightness 5500 , cabinet 1024*786 stadium led display screen

High definition advertisement Stadium LED Display Brightness 5500 , cabinet 1024*786 stadium led display screen

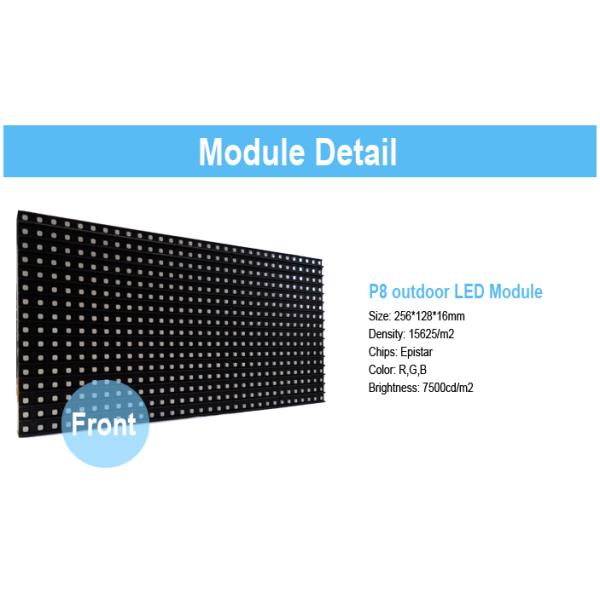

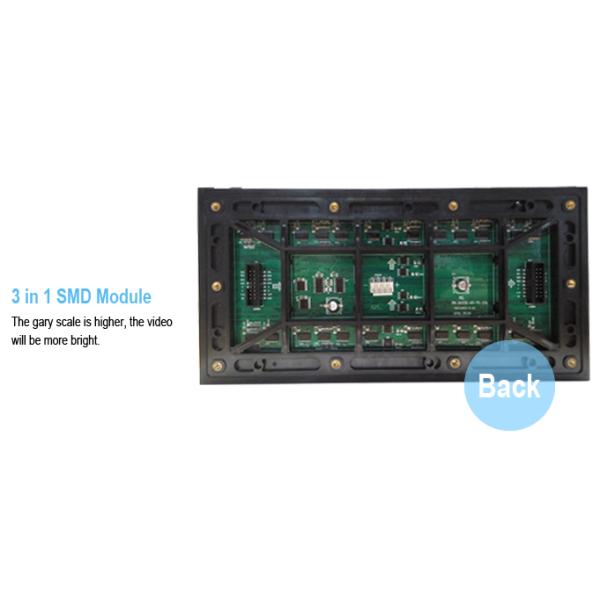

Parameter GTKE080-D
Pixel Module size 320*160mm
Pixel pitch 8 mm
pixels Density 15625 dots/sqm
Pixel configuration 1R1G1B
Brightness of single LED R: 800mcd, G: 2400mcd, B: 600mcd
Pixel resolution 40*20
Max Power consumption 40 w
Weight 0.75 kg
Working voltage DC5V
Cabinet Dimension 768*768mm
Power supply 5V/40A
thermal discharge fan
Total Weight 55 kgs
Best viewing distance 8 ~ 50m
Best viewing angle 120°(H) /90°(V)
Ambient Temperature storage: - 35 ~ + 85
working: - 20 ~ + 65
Working humidity 90 ~ 95%
Power Working voltage AC220V / AC110V
Average Power consumption 450 ~ 610 w/sqm
Max. Power consumption ≤ 950 w/sqm
Current ≤20mA(single LED)
Control system CPU Pentium 4 or above
Operating system WIN 98/2000/NT/XP/me
control method Synchronization, asynchronism are available
Main technical parameter Driving device Constant Current Driver IC
Drive type 1/4 scan Driving
Refresh frequency ≥120Hz/s
Grey scale/colors 256 levels of each color(R/G/B)/ 16.7M colors
Brightness of white balance ≥7,000cd/sqm
Brightness adjustment 255 levels of each color(R/G/B) by software
Video Signal PAL/NTSC
Control system DVI graphic card + full color controller card
MTBF ≥10,000 hours
Life span About 100,000 hours
Flatness Tolerance of interpixel≤0.3mm
Tolerance of modules clearance ≤1.5mm
Display Mode 800*600; 1024*768
Communication distance ≥100 meters (UTP-5 CABLE)
Software LED media player

Product Description

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

Packing & Delivery

Packing

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

CONTACS:
OLEG
skype: jonniloc
whatsapp: +86-13244742283
email: oleg@scxled.cn
