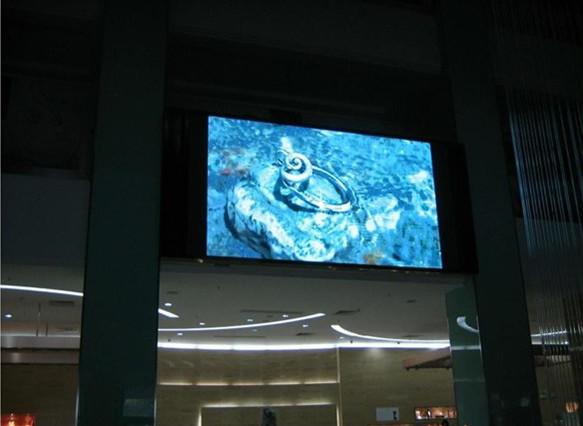

RGB Indoor P5 SMD LED Screen Density 40000 800*800mm 3G WIFI control
Product Features
1.color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
2, adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
3, strict water proof testing by Ip65
4, according to environmental changes the brightness can be adjusted automatically for energy saving
5, special PVC kits are adopted to protect from corrosion according to coastal weather
6, according to environmental changes the brightness can be adjusted automatically for energy saving
7, auto power on/off, work unattended
Product Description
LED Parameters
Module Specifications
1 | Pixel Pitch | 5mm |
2 | Display Resolution | 32* 32dots |
3 | Pixel Configuration | SMD3528 |
4 | Driving method | 1/8 scan constant current |
Cabinet Specifications
1 | Cabinet Resolution(dot) | 160 pixels L x160 pixels H |
2 | Size | 800mmx 800mm |
3 | Weight | 65kg |
4 | Cabinet Depth | 120mm |
6 | Material | Galvanized Steel |
Screen Parameters
1 | Real pixel pitch | 5mm |
2 | Virtual pixel pitch | / |
3 | Real pixel density | 40000/m2 |
4 | Virtual pixel density | / |
5 | Virtual Display resolution | / |
6 | Drive IC | MBI5024 |
7 | Display colors | 4096*4096*4096 |
8 | Brightness | ≥6000cd/m2 |
9 | Grey level | Red, Green, Blue 16384 grade/Each |
10 | Viewing angle | Horizontal:≥140°,Vertical:≥60° |
11 | Best viewing distance | 5m-30m |
12 | Valid viewing distance | <30m |
13 | Frame frequency | ≥60HZ |
14 | Refresh frequency | >1200HZ |
15 | Driving method | 1/8 scan constant current |
16 | Brightness adjustment | Automatically or manually |
17 | Control method | Synchronized with PC |
18 | Display mode | 800*800 |
19 | Visual input | VGA mapped /NTSC/PAL |
20 | Information transmission method | Synchronized and balanceable transmission |
21 | Communication cable | UTP Category 5/multi-mould optical fiber/monomode fiber |
22 | Scotoma rate | ≤1/10000 |
23 | Continuous operation time | ≤48 hours |
24 | LED Lifespan | ≥100,000 hours |
25 | Level up degree | ≤+/- 1mm |
26 | Assembly precision between PCB | ≤1mm |
27 | Max. power consumption | ≤300w/m2 |
28 | Average power consumption | ≤150w/m2 |
29 | Input voltage | AC 220V/110V /50 HZ+/-10% |
30 | Operation envionment | Temperature: -20°C~+50°C |
31 | Operation system | Windows 98/2000/ME/XP |
32 | Input signal | S-video, VGA, RGB, Composite video, SDI etc. |
33 | Ingress grade | IP30 |
34 | Video display function | Varies of text, graphics, pictures, flashes, and any signals from TV, VCB, DVD, camera and scanner can be synchronized with PC, Support PAL/NTSC |
Specification
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
1, How can you place the order to us?
We are factory of Outdoor and Indoor LED Display,and has nearly 6 years' Professional experience in this.If you are interested in our products,we will try our best to cooperate with you.Firstly,you can tell us the module size,then our engineer will analysis and do several kinds of projects as per your request for your selection,every project has its own advantage and disadvantage,all the details included price is for your reference,then you can make decision to select which project is the best fit for your situation.Once you confirmed the order,then you will pay us the deposit of 30%,both of you and us stamp and sign the contract,then we will produce the goods for you,make sure to offer you good quality,and delivery the goods within the deadline,Service first,trust us,trust the world.
2. If you want cheaper price,what will we do?
As we are factory,so the price we offer you is reasonable,and we must make sure good quality,you can compare the price to other suppliers if in all the same product,but,if your quantity is large indeed,we can also consider very less profit for your long time cooperation with us,and make co-win.Profit is not our last goal,our goal is doing better quality and service for more people,let more persons enjoy the different feeling,more entertainment and the most important news,using our LED Display,you will get relax and happy mood,we can talk about everything.Communcation is not the problem forever.
3. How can you trust the quality of our products?
For building the good reputation,just say only is not suitable,we must do it to prove ourself,every course is strict from the beginning we buy material,our engineer inspect the quality of material,even the smallest component,what's more,they will guide workers to produce,once they found the bad point,the products will be done poorly done work over again in the shortest time,they will not stop to test every point until all the point is good ,because they know details decide whether succeed or not especially in nowadays,welcome to check us.
4. Can you visit our factory in China?
Usually except our staff,other persons are not allowed to visit the factory,as you know it is not good for workers to produce intently.But,of course,our factory is open to our customers,very welcome to visit us,and the person who is responsible will guide you to scan the workshop every step,you will know the rough producing situation,then you will be trustfull to us.Business is long time cooperation.Trust is the most important between each other. I think we can not only do business together,but also can be good friends.The future is belonging to both of you and us.
5. What is our culture:
Our factory has our own characteristic culture.It is full of passion,warmth,has our own sunshine motto,every worker in this firm is not only workmate,what's more,we are friends,the friendship is rich,all the staff try their best to work everyday.Our work slogan is:Work warmly,live happily;The spirit is:Strictly demanding,Consciously dedication;The goal is:Customer front,Service first;Service idea:Service loyally,live Wonderfully;We believe that SCXK will be bigger and bigger with our effort near future.Welcome to experience it.
