Specifications
Brand Name :
Shichuangxinke
Model Number :
SCXK-P16
Certification :
CE RoHS FCC CCC TUV UL
Place of Origin :
China ,Guang Dong
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, D/P, D/A
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after deposit payment received
Packaging Details :
wooden box flight case, wooden case, carton, it is up to you.
Resolution/mm :
16
Pixel configuration :
1R1G1B
Scanning Mode :
static full color
Module Size :
256x256mm
cabinet size :
1024x1024mm
certificates :
CE RoHS FCC CCC UL
application :
stadium,airport,shopping mall,street advertising
material :
aluminum
warranty :
3-5 years
Description

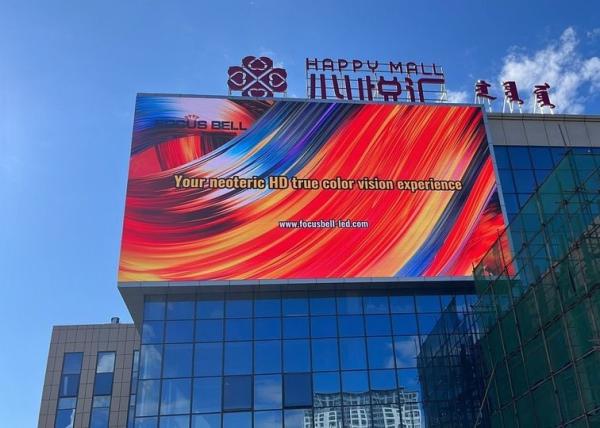

Weatherproof Outside Rental Led Screens , Led Video Display Board High Refresh Frequency


Trade terms:
1. Hardware: LED screen and video controlling system
2. Technical material: English version user manual, installation manual, and maintenance manual
3. Service: Provide free technology support by phone and e-mail
4. 4 years guarantee
5. Delivery: 15 days
6. Packing: Anti-shaking wooden package or Air Flight Case
7. Transportation: By sea or air or Express


Other products:
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5, P3, P4, P5, P6, P8, P10


Specifications:

outdoor DIP 16 LED Display
Resolution/mm16mm
Pixel configuration1R1G1B
Pixel density/pixels/m²3906/m²
Module resolution16x16
Module size/mm256x256m
View distance14-300m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness>7500cd/㎡
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 16bit
Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
Driving modeConstant driving current
Scanning modestatic full color
Frame rate60Hz
Refresh frequency>3000Hz
Control modeComputer synchronous
Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point<1/10000
Working hours≥72hours
Mean Time Between Failure>5000hours
Life time100000hours
Life-all-white(brightness halving)50000hours
Environment temperature rangeOperating temperature range: -20-45℃
Self-check technologyLED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoringRemote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environmentWindowsNT,Windows1999,WindowsXP
Luminous point width between centresDeviation<3%
Brightness uniformity<10%
Color uniformity(chromaticity coordinate)±0.003
Power supply requestAC85-264V(50Hz-60Hz)
Contrast(1000:1)
System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)working:10-95%
Humidity(storing)storing:10-95%


Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)


Advertising Screen Fixed/Rental Iron Box Outdoor LED Screen, High Refresh Rate LED Video Display BoardsAdvertising Screen Fixed/Rental Iron Box Outdoor LED Screen, High Refresh Rate LED Video Display Boards
Advertising Screen Fixed/Rental Iron Box Outdoor LED Screen, High Refresh Rate LED Video Display BoardsAdvertising Screen Fixed/Rental Iron Box Outdoor LED Screen, High Refresh Rate LED Video Display Boards
Advertising Screen Fixed/Rental Iron Box Outdoor LED Screen, High Refresh Rate LED Video Display BoardsAdvertising Screen Fixed/Rental Iron Box Outdoor LED Screen, High Refresh Rate LED Video Display BoardsAdvertising Screen Fixed/Rental Iron Box Outdoor LED Screen, High Refresh Rate LED Video Display Boards


FAQ

1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .

2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.

3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3.36pcs in one case packaging
4.Customized packaging

4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .

5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
