P8 outdoor Stadium LED Display advertising LISN control 3G control Density 15625 stadium perimeter led display
P8 outdoor Stadium LED Display advertising LISN control 3G control Density 15625 stadium perimeter led display
P8 outdoor Stadium LED Display advertising LISN control 3G control Density 15625 stadium perimeter led display
P8 outdoor Stadium LED Display advertising LISN control 3G control Density 15625 stadium perimeter led display
Specifications
Brand Name :
SCXK
Model Number :
P8
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
3 sqm
Price :
negotiation
Payment Terms :
T/T
Delivery Time :
7-10 working days
Packaging Details :
flight case, wooden case
Supply Ability :
3000sqm per month
Pixel Density :
15625
Brightness :
7000
Control System :
LSN
LED Shape & Size :
3mm smd3535
Module Size :
256*128
Driver mode :
1/4 scan
Operation Power :
220V 60HZ
Description

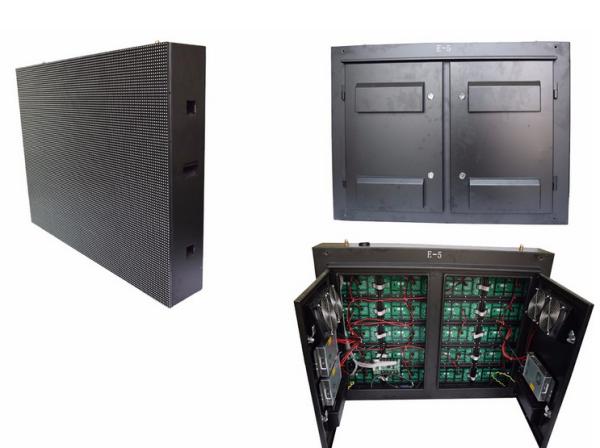

P8 Outdoor SMD LED display

Full Color Outdoor LED Display Screen P8
With rainproof, windproof, sun proof, moisture-proof, dustproof, anti-corrosion and high temperature protection functions; and over-current, circuit breaking, overvoltage, under-voltage protections and anti-static, lightning-proof functions as well as wind resistance 12-grade, high-temperature alarm and protection, remote switch control functions.

1. LED Light Parameter

P8 outdoor Stadium LED Display advertising LISN control 3G control Density 15625 stadium perimeter led display

2. Technology Parameters

P8 outdoor Stadium LED Display advertising LISN control 3G control Density 15625 stadium perimeter led display

3. Screen Parameters

Parameter GTKE080-D
Pixel Module size 320*160mm
Pixel pitch 8 mm
pixels Density 15625 dots/sqm
Pixel configuration 1R1G1B
Brightness of single LED R: 800mcd, G: 2400mcd, B: 600mcd
Pixel resolution 40*20
Max Power consumption 40 w
Weight 0.75 kg
Working voltage DC5V
Cabinet Dimension 768*768mm
Power supply 5V/40A
thermal discharge fan
Total Weight 55 kgs
Best viewing distance 8 ~ 50m
Best viewing angle 120°(H) /90°(V)
Ambient Temperature storage: - 35 ~ + 85
working: - 20 ~ + 65
Working humidity 90 ~ 95%
Power Working voltage AC220V / AC110V
Average Power consumption 450 ~ 610 w/sqm
Max. Power consumption ≤ 950 w/sqm
Current ≤20mA(single LED)
Control system CPU Pentium 4 or above
Operating system WIN 98/2000/NT/XP/me
control method Synchronization, asynchronism are available
Main technical parameter Driving device Constant Current Driver IC
Drive type 1/4 scan Driving
Refresh frequency ≥120Hz/s
Grey scale/colors 256 levels of each color(R/G/B)/ 16.7M colors
Brightness of white balance ≥7,000cd/sqm
Brightness adjustment 255 levels of each color(R/G/B) by software
Video Signal PAL/NTSC
Control system DVI graphic card + full color controller card
MTBF ≥10,000 hours
Life span About 100,000 hours
Flatness Tolerance of interpixel≤0.3mm
Tolerance of modules clearance ≤1.5mm
Display Mode 800*600; 1024*768
Communication distance ≥100 meters (UTP-5 CABLE)
Software LED media player

P8 outdoor Stadium LED Display advertising LISN control 3G control Density 15625 stadium perimeter led display

Application:

The full color P8 Fixed LED Display is widely outdoor rental stage screen,perfectly as mian background for various stage shows,trade shows,concerts,etc,with brilliant video quality,HD image viewing and best viewing distance. It's equipped with fast-locking system,100% no tools installation, very easy to assemble,dismantle and maintenance.

Prices are very competitive, reaching good performance with limited budget.

Product features:

1)Lightweight, space-saving and labour-saving.

2)Nice appearance and simple structures.

3)Quick locking methods, no tools installation.

4)With indicator lights and backside flexible door, easy to test and maintain.

5)High brightness over 6000 nits, using at daytime.

6)IP65, waterproof.

7)High refresh rate, HD video performance.

8)Good prices and aftersales services.
