Specifications
Brand Name :
Shichuangxinke
Model Number :
SCXK-P10
Certification :
CE RoHS FCC CCC TUV UL
Place of Origin :
China ,Guang Dong
MOQ :
1 square meters
Price :
USD +550-750 +square meters
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000sqm per month
Delivery Time :
10 working days after deposit payment received
Packaging Details :
wooden box flight case, wooden case, carton, it is up to you.
Resolution/mm :
10
Pixel configuration :
1R1G1B
Scanning Mode :
1/4 scanning
Module Size :
160x160MM
cabinet size :
960x960MM
certificates :
CE RoHS FCC CCC UL
application :
stadium,airport,shopping mall,street advertising
material :
aluminum
warranty :
3-5 years
Description

easy maintain high quality outdoor advertising led screen module p10

We are a professional LED display screen manufacturer and supplier in China. Our primary products include indoor LED display screen, outdoor LED display screen, indoor rental LED screen, stadium LED display screen, LED curtain, LED ceiling light, and LED panel light.


P4 LED Display Screen P5 LED Display Screen P6 LED Display Screen P7 LED Display Screen P8 LED Display Screen P10 LED Display Screen

Other Products:

Indoor rental LED screens are colorful. The entire screen achieves high consistency in color and brightness. With high contrast and high refresh rate, the image is presented well on the LED screen without any delay.

Rental LED screens Traditional electric screens, such as CRT TV walls, rear-projection TV walls, front-projection screens, plasma display panels (PDP), etc., are limited in application due to insufficient brightness, size limitations, and installation difficulties.

For outdoor stadium video screens, we use visual pixel technology to achieve more vivid video display performance. For indoor sports video screens, we utilize SMD 3-in-1 technology, which provides a wider viewing angle, higher refresh rate, and higher brightness.

The LED curtain mechanism is designed to achieve efficient installation and removal required for rental and stage applications. The biggest feature of this product is its transparency, which can be changed by changing the brightness to bring different visual effects to the audience.

Specifications :

outdoor DIP P10
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/m²
Module resolution 32x16
Module size/mm 160X160MM
View distance 14-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/4 SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

Applications:

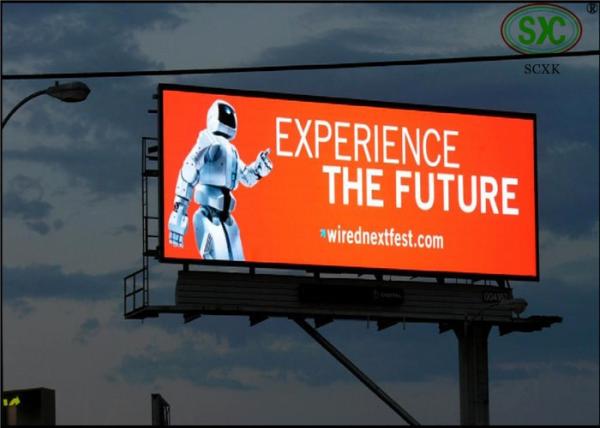

On roof of building LED Billboard

Mounted on building LED Billboard

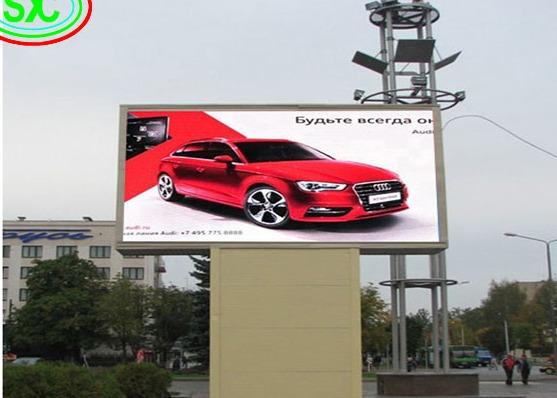

Put on steel pole LED Billboard

Cross bridge information LED Billboard

Shopping Mall LED Billboard
Commercial Advertising LED Billboard
Church LED Billboard
Road Show LED Billboards
High Speed Way LED Advertising Billboard
