High Brightness IP65 P12 LED Billboard Rental Outdoor LED Display

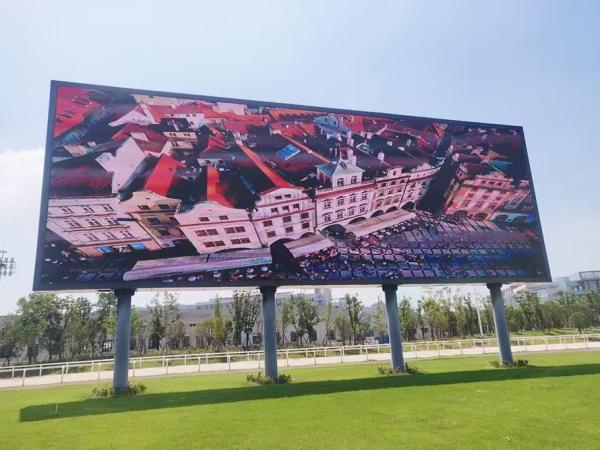

P12 outdoor LED display
Is capable to play advertisement in outdoor environment. Drive mode is static technology, even if under the sunshine, the display is still visible in wide viewing angle and super bright. Modular design can create any size of signs to meet market demands.
With high quality resolution, unequalled brightness and contrast level, this panel is the best medium to Broadcast great emotions and share them at long distances and thus boost connection with your target audience
Features:
1. Wide range of applications: You can let your LED display travel around the city. Many viewers will be impressed when they see it. This will make your advertisement really efficient!
2. Light weight: Usually we choose aluminum box, so the weight is lighter. It won't put too much burden on your truck.
3. High quality LED chips: Adopting strictly selected high quality LED chips to ensure the long life and high brightness of the LED screen system. 4.
4. High brightness, even under direct sunlight, we can still see clear and vivid images on the LED display; 7000 nits brightness for outdoor full-color display, and the brightness can be reduced for indoor use, so it will not bring visual pollution.
5. Slow color and brightness degradation. We chose very good LED lamps, so even if the screen works for more than 5 years, it can maintain vivid colors and high brightness. 6. 6.
6. 6. Easy to install, we have quick locks on both sides of the LED box, easy to install and the surface is very smooth. The gap can be minimized.
Specifications :
outdoor DIP P12 | |||||
Resolution/mm | 12 | ||||
Pixel configuration | 1R1G1B | ||||
Pixel density/pixels/m² | 6944/m² | ||||
Module resolution | 16x16 | ||||
Module size/mm | 192x192MM | ||||
View distance | 14-300m | ||||
Single point brightness adjust | Can be added | ||||
Single point color adjust | Can be added | ||||
White balance brightness | >7500cd/㎡ | ||||
Color temperature | 6500K-9500K | ||||
Horizontal view angle | 120(degrees) | ||||
Vertical view angle | 60(degrees) | ||||
Signal Process bit | 10 or 16bit | ||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
Driving mode | Constant driving current | ||||
Scanning mode | 1/4 SCANNING | ||||
Frame rate | 60Hz | ||||
Refresh frequency | >3000Hz | ||||
Control mode | Computer synchronous | ||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
255 steps. No grey loss | |||||
Out of control point | <1/10000 | ||||
Working hours | ≥72hours | ||||
Mean Time Between Failure | >5000hours | ||||
Life time | 100000hours | ||||
Life-all-white(brightness halving) | 50000hours | ||||
Environment temperature range | Operating temperature range: -20-45℃ | ||||
Self-check technology | LED spot self-check, communications check, power check, | ||||
temperature monitor(need customization) | |||||
Remote monitoring | Remote supervision and control, record potential fault, | ||||
send out warning signs to the operators.(need customization) | |||||
Software environment | WindowsNT,Windows1999,WindowsXP | ||||
Luminous point width between centres | Deviation<3% | ||||
Brightness uniformity | <10% | ||||
Color uniformity(chromaticity coordinate) | ±0.003 | ||||
Power supply request | AC85-264V(50Hz-60Hz) | ||||
Contrast | (1000:1) | ||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
Humidity(working) | working:10-95% | ||||
Humidity(storing) | storing:10-95% |
Why Choose Us:
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "Chengxinguang", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2004, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3.36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
