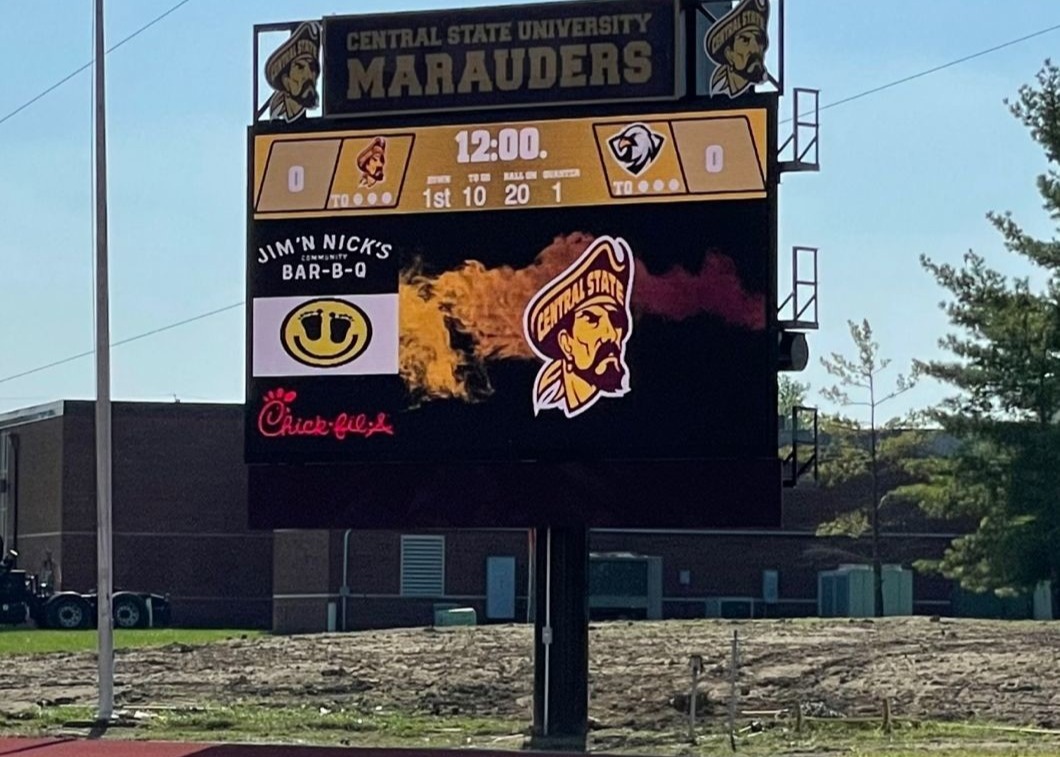

P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
Specifications
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Product Name :
P10 hanging led display
Module Size(W * H) :
320mm*160mm
Standard :
CE/ROHS/FCC/ISO2001
Tube Chip Color :
Full color
Pixel Pitch :
10mm
Module Qty :
1pcs
type :
free standing
Resolution(W*H) :
32dots*16dots
Description

P10 outdoor advertising led display screen Energy Saving Digital Hanging LED Display Boards , Video LED screen


SMD full color led display p10 led video wall panel for commercial advertising outdoor application of LED display screen:

LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.

Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.

Led display screen now are widely applied in media advertising, transportantion,Security,
Real estate and Stage show background.

The detailed parameter as follows.

1, Item Nametechnology parameter
2, pixel tube:

pixel pitch:10mm; primary colors: pure red+pure green+pure blue ,
color composing: 1R1G1B
Density 10000dots/sq m;

3 , unit box

module size:320mm×160mm; Module resolution:32X16
cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

4, whole screen:

the optimum viewing angel :horizontal 110°, vertical 50°
viewing distance:>15m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024

5, operating voltage

AC220V±10% or 110V±10% ,average consumption:500 W/sq m
max consumption:≤650 W/ sq m

6, main parameter

1) driving mode: 1/4 scan
2) refreshing rate:≥400Hz/s
3) frame frequency:≥60Hz/s
4) gray scale/color:≥16.7Mcolors(Synchronized)
5) manage gray:≥72bit
6) brightness:≥7000cd/sq m
7) color temperature condition:3500K~9500K,be adjustable
8) adjusting style of brightness: hand movement/auto
9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.
10) average trouble-free time:≥5000hours
11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm
12) switch power loading:5V/40A
13) display mode of computer:1024×768



Applications:

The hanging led display is very popular in LED display advertising field. This type digital billboards are widely used ,store ,stadium,shopping ,airport etc;

2. Features :
Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Super brightness single color LED billboard advertising
In the led billboard /panel series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.
1, Superb brightness and color uniformity and reproduction. Brightness variances within+/-2.5%
2, High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection
3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition

Methods for Quality Assurance
a. Aging
1. 100% fully test

  1. Condition: 72 hours with 256 gray level

b. Vibration Testing
Condition: 3-5 min up and down in 5mm range

Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.

P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing


The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
The wire or wireless controll system are available .( 3g and wifi controll will be welcome)
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
The steel consturction is very stable for led display,and you can purchase from your local market .

Company information
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
Order Procedure
Negotiation---First solution recommended---Finalize all the details---30%deposit in advance or full deposit---
Start production---Pay the balance---shipment by DHL--provide tracking number---feedback.
Parking and Shipping
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C. Customized packing is acceptable
D. 20"FT container loading of 100sq.m
P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.

Production Flow


Shenzhen ShiChuangXinKe Electronics Co.,Ltd. always lead the new
development of technologies, new products and value-added services. Over the years,
many kinds of led display have been created, applied, and enable real growth for
customers into new market places.

P10 Outdoor Led Display Screen Energy Saving Digital LED Boards Free Standing
