IP65 IP67 P6 SMD2727 RGB 32x32 Outdoor Full Color LED Display Screen Module
IP65 IP67 P6 SMD2727 RGB 32x32 Outdoor Full Color LED Display Screen Module
IP65 IP67 P6 SMD2727 RGB 32x32 Outdoor Full Color LED Display Screen Module
IP65 IP67 P6 SMD2727 RGB 32x32 Outdoor Full Color LED Display Screen Module
IP65 IP67 P6 SMD2727 RGB 32x32 Outdoor Full Color LED Display Screen Module
IP65 IP67 P6 SMD2727 RGB 32x32 Outdoor Full Color LED Display Screen Module
IP65 IP67 P6 SMD2727 RGB 32x32 Outdoor Full Color LED Display Screen Module
IP65 IP67 P6 SMD2727 RGB 32x32 Outdoor Full Color LED Display Screen Module
Specifications
Brand Name :
SCX
Model Number :
outdoor p6
Certification :
CB,CE,UL
Place of Origin :
China，shenzhen
MOQ :
10 sqm
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
3700per sqm month
Delivery Time :
7-16 working days
Packaging Details :
wooden case，flight case
use :
advertising publish, shopping mall, exhibition hall
pixel density :
27777 Dots/sqm
Module resolution: :
32*32Dots
Cabinet size :
576*576mm
LED Shape & Size: :
3mm smd3535
LED lamp :
Kinglight/ Nation Star
Description

IP65 IP67 P6 SMD2727 RGB 32x32 Outdoor Full Color LED Display Screen Module

Advertising Led Specifications :

Advertising led P6 LED Display
Resolution/mm 6
Pixel configuration 1R1G1B
Pixel density/pixels/m² 27778/square meter
Module resolution 32*32mm
Module size/mm 192*192mm
View distance ≥6m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/8 scanning
Fresh rate 60Hz
Refresh frequency >1000Hz
Control mode Computer synchronous
Out of control point <1/10000
Aging hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

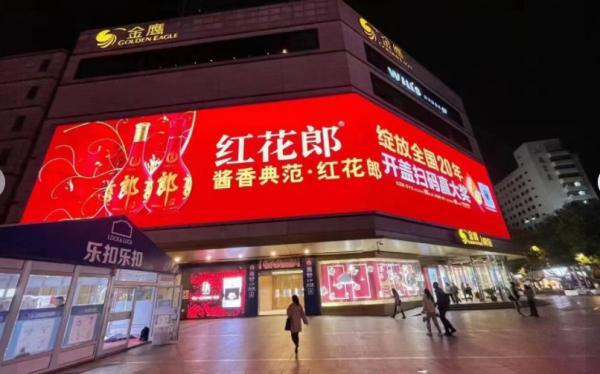

Performance led screen projects:


What we do?

Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production, marketing and after-sales service of LED displays.

We can offer all types of indoor and outdoor led display, and it's videly used in banking, communicatins offices, electric power industry, traffic, stadiums and sporting area, business plaza, entertainment for the applications of advertising, sports,event, stock/ sport news ticker, message center, price etc.

Why choose us?

1. Professional team and good after-sales service.

2. Promise high quality product for good price.

3. Quick delivery after payment.

4. Free technical support.

5. If any problems appear,we'll replay in 3-4 hours.

Outdoor Led Advantages:

1) High intensity and can be adjusted, so can meet the request of the customers according the environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect LED Screen.
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line.
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
6) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, indoor P6 display etc.
