32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration
32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration
32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration
32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration
32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration
32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration
32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration
32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration
Specifications
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
CHINA
MOQ :
1sqm
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days
Packaging Details :
plywood case, flight case etc, you choose which you like.
Pitch :
10mm
Pixels :
32*16dots
Pixel density :
10000/m2
Pixel configuration :
1R1G1B
Module size :
320*160mm
Driving mode :
1/4
Cabinet material :
die casting aluminum
Cabinet size :
960*960mm
Description

32*16dots Outdoor Full Color LED Display 1R1G1B Pixel Configuration

Full-color outdoor LED wall showroom/hot-sales-hd-low-price-xxx-sexy-video

Product Description

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.


Module Parameter

Pixel pitch 10mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 3535
Module size 320x160mm
LED lamp KingLight or Nationstar
Module resolution 32x16dots


Cabinet Parameter

Cabinet size 960x960mm
Cabinet material ironed steel cabinet
Cabinet weight 32.5kg
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 10000 dots/m²
Brightness ≥6000 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 10m
Max.power consumption 850W/m²
Avg.power consumption 350 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 65536
Refresh rate ≥1920Hz
MTBF ≥100,000 hours
Lifespan ≥500,000 hours
Protective function Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.

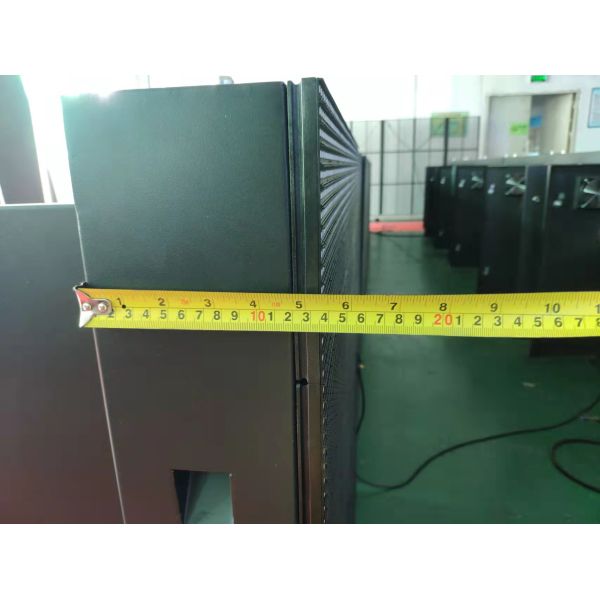

Cabinet pictures
32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration 32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration

32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration 32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration

Why choose us

Continues Quality

With more than 10 years experience in led display,equipments are updated regularly.What’s more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built effective modular production.We always stick to promote the technical innovation and reduce cost to benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.

After-sales:We will track the products usage and then constantly perfect our products.


Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.


Certificate

32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration 32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration 32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration

32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration 32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration


Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.


32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration 32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration

32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration 32*16dots Outdoor Full Color LED Display 1R1G1B Pixel configuration

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample order needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1sqm for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 8-20 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
