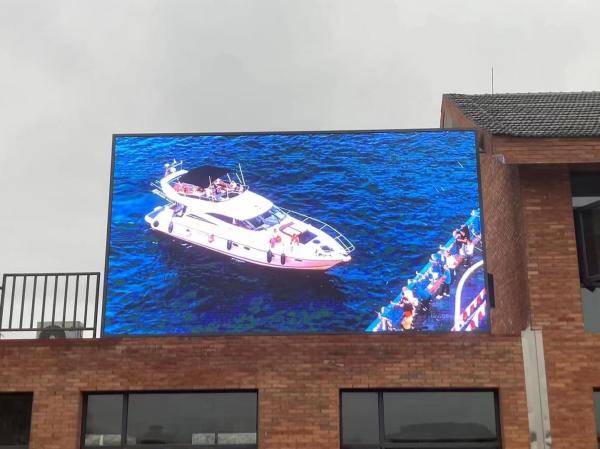

P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
P3 Outdoor Led Screen Rental Waterproof Ip65 Fixed Installation
Specifications
Brand Name :
SCX
Model Number :
outdoor p3
Certification :
CE,CB,IEICC,FC
Place of Origin :
shenzhen,China
MOQ :
10 sqm
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3200 sqm per sqm
Delivery Time :
5-7 working days
Packaging Details :
wooden case，flight case
Brightness :
6500nits
Control System :
Synchronization
Display Type :
Outdoor Full Color LED Display
Gray Scale :
14bit
IP Rating :
IP65
Input Voltage :
AC110V/220V
Pixel Configuration :
1R1G1B
Power Consumption :
Max.800W/㎡
Refresh Rate :
1920Hz
Storage Temperature :
-40℃~+60℃
Viewing Angle :
140°/140°
Description

led display billboard /outdoor led advertising digital display screen

Key attributes

Industry-specific attributes

Application
rental/fixed
Brand Name
Chipstar

Other attributes

Place of Origin
Guangdong, China
Color
1R1G1B
Model Number
SZ-CP-P3-OUT
Screen Dimension
Customized
Resolution
64x64dots
Density
111111dots/qm
Led Lamp
SMD1919
Best viewing distance
over 3m
Brightness
3500-4500cd/sqm
Driving method
1/16 Scaning
Viewing angle
150deg(H/V)

Packaging & delivery

Package Type:
By Carton (60 pcs in a carton) and wooden case

Supply Ability

Supply Ability
100000 Piece/Pieces per Month

Product details

Product details
Module Specification
Pitch
3mm
Size
192mm(H)x192mm(W)
Module Resolution
64(H)x64(V)
Density
111111 pixels/m2
LED Lamps
SMD1919
Driver IC
Customizable
Driver Mode
1/16 Scan
Modules Refresh
1920hz-3840hz
Electricity Parameter
Brightness
3500-4500cd/m2
View Angle
140 degree ( horizontal) 140degree(vertical)
View Distance
3m-250m
Gray Scale
65536
Display Color
3-in-1 RGB
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Maxim Power Consumption
1400 w/m2
Average Power Consumption
700 w/m2
Reliability
Temperature Storage
-10~60 ℃
Humidity Storage
10~90%
Operating Life
>100,000 hours
MTBF
>10,000 hours
Continuous Working Time
>48 hours
Protection Level
IP65
Out of Control Pixel Rate
<0.03%
Details Images

Q1. How to proceed an order for LED display?
1.let us know your demands or application.
2.We give you offer according to your requirements or our suggestions.
3.You confirms the offer and documents then pay deposit for start order.
4.We arrange the production,and inform you producing status.


Q2. What about the lead time?
LED Module and Parts: 1-7working days
LED Display Panels: 5-20working days


Q3. Do you have any MOQ limit for led light order?
A: Sample for checking is available


Q4. What about shipping and how long does it take to arrive?
1.Our nearest ports are Shenzhen ,Guangzhou or Hongkong.
2.By Express: 5 - 7 Days / By Air:5 - 10 Days / By Sea: 20 - 40 Days.
3.Delivery to your address directly,and you just wait the items at your door and no need do anything.


Q5. You can print my logo on led display?
Can, Please send us your LOGO design and confirm with us before our production.
