Specifications
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO
Place of Origin :
China
MOQ :
5
Price :
USD388-440per square meters
Payment Terms :
T/T, Western Union, MoneyGram,
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after deposit payment received
Packaging Details :
wooden box flight case, wooden case, carton, it is up to you.
Pixel Pitch :
p10
Pixel density :
10000 dots/sqm
Module size :
320*160MM
Module resolution :
32*16
Display Function :
Video
Usage :
Outdoor
Brightness :
≥5000 cd/sqm
Warranty :
4years
Scanning mode :
1/4 scanning
Life time :
10 years
Description
Product Description

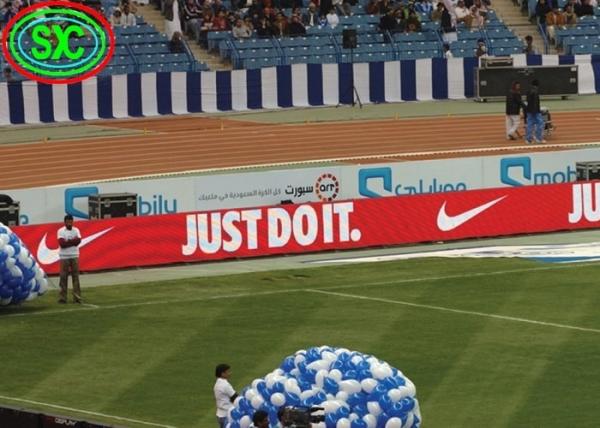

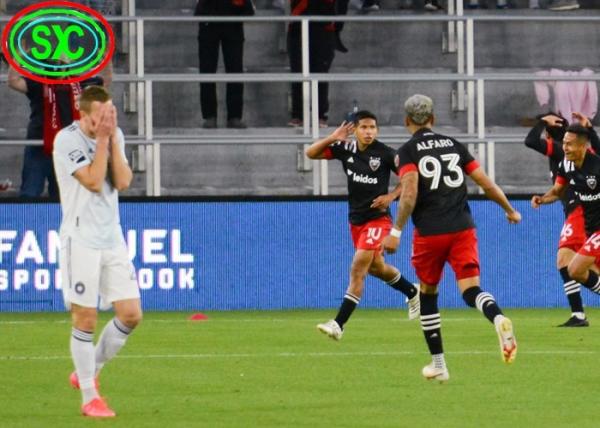

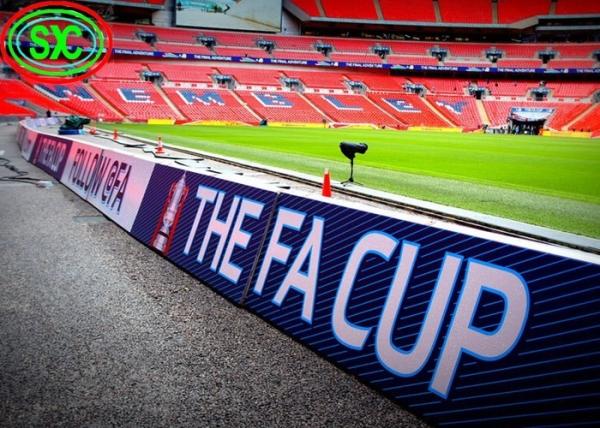

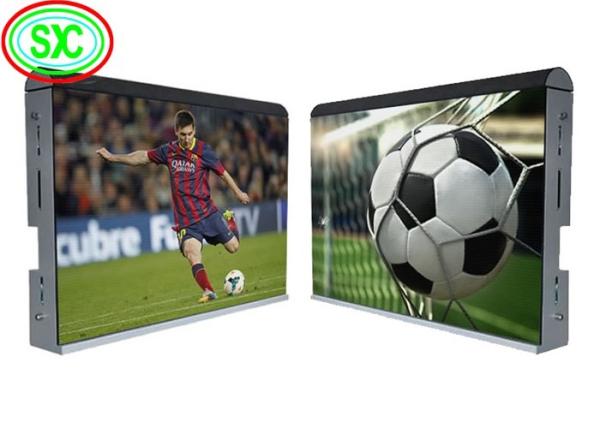

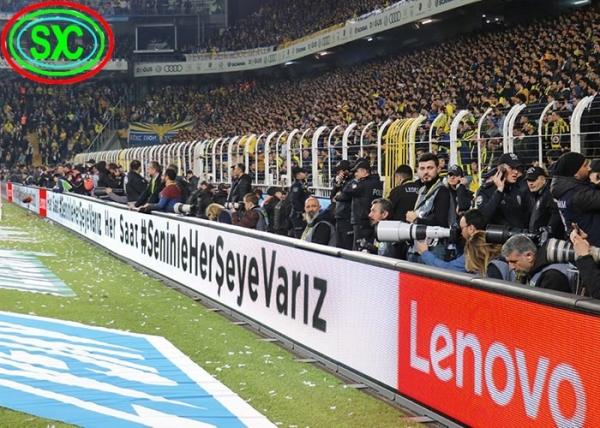

Wide Angle Led display Outdoor Led Scoreboard Video Screen Panel Screen Stadium Display Perimeter Board For Outdoor Advertising

Stadium LED Specifications :

P10 Stadium LED Sign Dislplay
Resolution/mm 10
Pixel configuration 1R1G1B
Pixel density/pixels/m² 10000/square meter
Module resolution 32x16
Module size/mm 320x1601MM
View distance 14-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >6500cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/4 SCANNING
Frame rate 60Hz
Refresh frequency >600Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

What we do?

We are a leading manufacturer and provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules where in Shenzhen ctiy,Guangdong province,China.

Why choose us?

1. Professional team and good after-sales service.

2. Promise high quality product for good price.

3. Quick delivery after payment.

4. Free technical support.

5. If any problems appear,we'll replay in 3-4 hours.

Stadium Led Advantages:

1) High intensity and can be adjusted, so can meet the request of the customers according the environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect LED Screen.
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line.
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
6) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, indoor P6 display etc.

Packaging & Shipping

Our Services

Our promises:

1. Product Diversification:

Outdoor/Indoor LED display screens are available in various models, customized cabinets can be provided to meet all requirements and win more profits for customers.

2. Experienced and Professional:

10 years of LED display screen manufacturing experience, professional craftsmanship and design.

3. Best Raw Materials:

Taiwan Jingyuan LED chips, high quality, high brightness, long life.

4. Price Competitiveness:

100% factory price, price competitiveness and reasonable.

5. Strict Quality Control:

100% test before packing to ensure quality before delivery.

6. Quality Assurance:

All our LED displays have a service life of more than 100,000 hours.

Company Information

FAQ

Some customers' concerns:

1.Is it really possible to make money because of the large upfront cost?

-There is an old Chinese saying:won't loathe to give up the child set of wolves.

If you want to make your business,you should have the foresight,patience and investment.

But the most important is that you should choose the right product,like our products,it's suitable in many areas,

after choosing it,you should firmly believe the product cna bring you the profiel.

2.I've never heard your brand,how can i trust you?

-There are many things you've never seen before in the world,and in your home there must be somethings you bought also the small brand,but it is good to use.

We can't guarantee everything is too famous to let everybody know,but we can promise you the high quality and the reasonable price.The only thing you need to do is to give us the chance and try to trust us,we won't let you down!

Welcome to visit our website and inquire us more info!!!
Waiting for you all the time!!!
