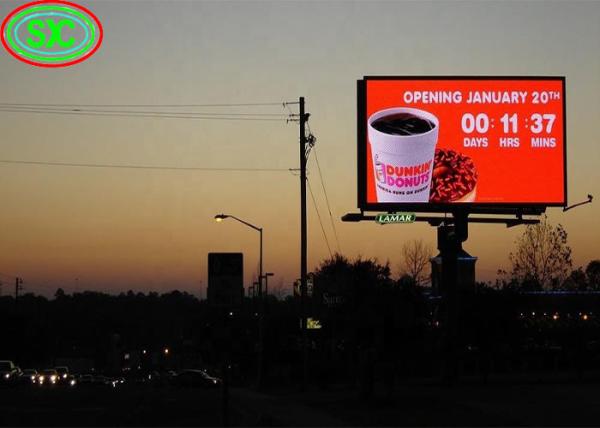

Big Size Outdoor Advertising Wall Billboard Waterproof P10 Led Display Digital Display Board
Products function introduction:
1) High and adjustable intensity to meet customer's requirement according to environment.
2) Optimal equality, excellent solution to mosaic problem, excellent light consistency
3) Graphic and text, clear, delicate and real display effect.
LED Drapery Screen
4) Horizontal line viewing angle up to 110 degrees, vertical line viewing angle up to 60 degrees
5) Each LED lamp can be repaired, so the maintenance cost is low and easy to repair.
6) Usually used in sports, advertisement, bank, stock exchange, station, harbor, indoor P6 display, etc.
Our service:
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information
Sepcification:
P10 Advertising LED Dislplay | |
Resolution/mm | 10 |
Pixel configuration | 1R1G1B |
Pixel density/pixels/m² | 10000/square meter |
Module resolution | 32x16 |
Module size/mm | 320x1601MM |
View distance | 14-300m |
Single point brightness adjust | Can be added |
Single point color adjust | Can be added |
White balance brightness | >7500cd/square meter |
Color temperature | 6500K-9500K |
Horizontal view angle | 120(degrees) |
Vertical view angle | 60(degrees) |
Signal Process bit | 10 or 16bit |
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
Driving mode | Constant driving current |
Scanning mode | 1/4 SCANNING |
Frame rate | 60Hz |
Refresh frequency | >600Hz |
Control mode | Computer synchronous |
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
255 steps. No grey loss | |
Out of control point | <1/10000 |
Working hours | ≥72hours |
Mean Time Between Failure | >5000hours |
Life time | 100000hours |
Life-all-white(brightness halving) | 50000hours |
Environment temperature range | Operating temperature range: -20-45℃ |
Self-check technology | LED spot self-check, communications check, power check, |
temperature monitor(need customization) | |
Remote monitoring | Remote supervision and control, record potential fault, |
send out warning signs to the operators.(need customization) | |
Software environment | WindowsNT,Windows1999,WindowsXP |
Luminous point width between centres | Deviation<3% |
Brightness uniformity | <10% |
Color uniformity(chromaticity coordinate) | ±0.003 |
Power supply request | AC85-264V(50Hz-60Hz) |
Contrast | (1000:1) |
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
Humidity(working) | working:10-95% |
Humidity(storing) | storing:10-95% |
Our results:
Our company:
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production, marketing and after-sales service of LED displays.
We can offer all types of indoor and outdoor led display, and it's videly used in banking, communicatins offices, electric power industry, traffic, stadiums and sporting area, business plaza, entertainment for the applications of advertising, sports,event, stock/ sport news ticker, message center, price etc. The basic LED cabinet are easier for customers' installation and maintenance to meet the market requirement.
We are also renowned for building custom LED Display that will meet your unique and specific need. More importantly, we are committed to providing quality products at competitive prices and superior customer services. With the quality management sustem ISO9001, the strong R&D and manufacturing group, SCXK became one of the leading companies or LED display industry in Shenzhen.
Normal questions:
Q1: What's the pixel pitch for choice?
A1: Indoor series: P1.25, P1.56, P1.667, p1.875,p2,p2.5,p2.6,p3,p3.91,p4
Outdoor series: P4.8, P5.9 MG5 outdoor series: P5.9, P6.9, P7.8, P8.9, P10.4
Q2: Where is it used for?

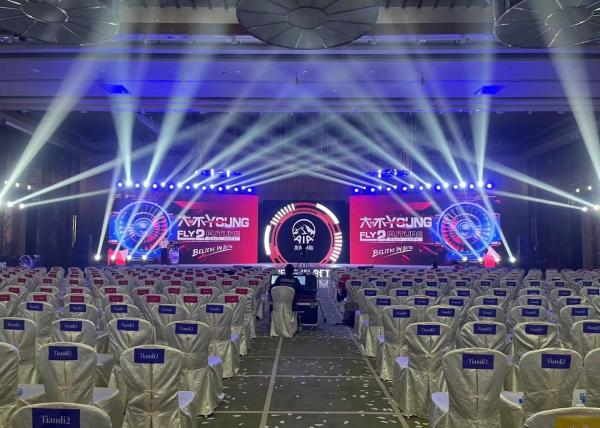

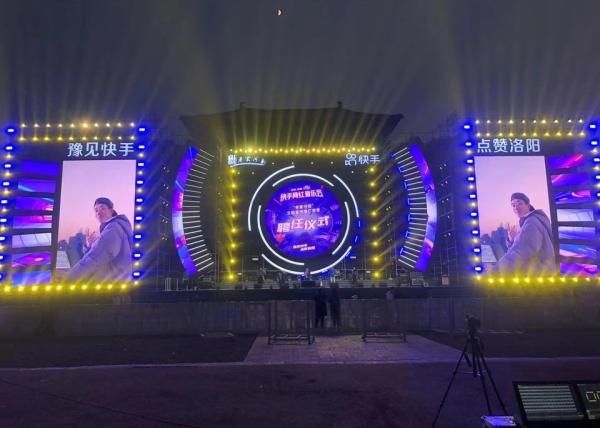

A2: Performance shows, sports activities, advertising, information publishing, celebrating activities, hotel entertainment ect.
One type realize Multi Function for creative stage led screen, advertising led screen, sky backdrop curtain, stadium screen, dance floor and Outdoor screen for indoor use.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with several different controlling systems,such as Nova, Mooncell,linsn and so on.
Q4: What after service can provide?
A5: One year warranty, 24h online technical support, back-visiting customer for each year
Sending technical personnel to the scene in customers significant activities
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
