HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting
Specifications
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1 sqm
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
5-8 days
Packaging Details :
wooden case or flight case are available
Pitch :
10mm
Module size :
320x160mm
pixel density :
10000dots/sqm
Cabinet size :
960x960mm or customized
Drive mode :
1/8 scan
LED lamp :
SMD 2727
Power supply :
chuanglian or others
Warranty :
3 year
Description

HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting

P5 Outdoor Features
1.Outdoor led display high protection, dustproof, waterproof, anti-corrosion;
2.Ultra-high resolution, bright color;
3.Energy saving, cost-effective;
4. Ultra-wide viewing angle;
5.Ultra high uniformity, alleviate eye fatigue;
6.seamless stitching.

The technical parameters

Module Parameter:

Pixel pitch10mm
Pixel configuration1R1G1B
LED type3-in-1 SMD 2727
Module size320x160mm
Module weight0.4kg
Module resolution32*16dots


Cabinet Parameter:

Cabinet size960x960mm
Cabinet materialiron or aluminum cabinet
Cabinet weight28.5kg+/-0.05kg
Cabinet resolution96:96 dots
Ingress protectionFront/Rear IP65/IP54


Whole Screen Parameter

Pixel density10000dots/m²
Brightness≥7000 cd/m²
Viewing angleH≥120° V≥120°
Min.viewing distance10m
Max.power consumption600W/m²
Avg.power consumption200 W/m²
Working voltage110~220VAC±15%
InterfaceHUB75
Colors16.7millon colors
Gray level14-16bits
Frame frequency≥60frames/s
Refresh rate≥600Hz
MTBF≥10000 hours
Lifespan≥50000 hours
Protective function

Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.

Operating temperature -10℃ ~ +40℃
Operating humidity10-80% no condensation
Storage temperature-20℃ ~ +60℃
Storage humidity10-85% no condensation


Control System Parameter:

Video signal (with video processor)AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperatureAdjustable by software
Brightness level256 levels, automatic adjustment by software
Control wayComputer, video-synchronous, real-time, off-line, wireless, internet etc.

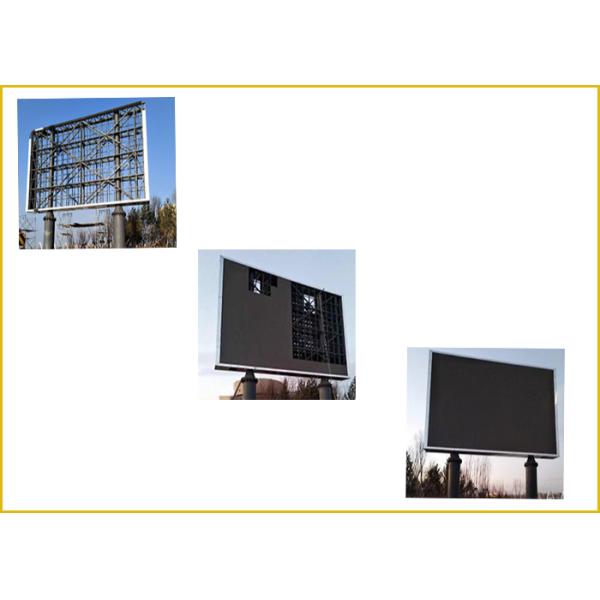

Installation case
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting

Video processor
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting


Product item
Many other hot product, welcome to visit our company!
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting

Company profile
Shenzhen SCXK Electronic Co.,Ltd has the standard new factory, and about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led single dual color display, led indoor full color display; led outdoor full color display, led wireless car used screen etc. It can be used on the shopping more, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi and so on.. We adapt many methods and very good after-sell service to sell our product all over the word. Whenever and wherever we are, we always take the principle that is: professional makes good quality, good price product market to provide perfect product and service for our customers.
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting

Certificate
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting

Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
HD P10 Smd Outdoor Full Color LED Billboard widely application for adversiting

Contact details

Salesman: Andy
Skype: Andy liu
Wechat:liu15179028073
Tel: +86-15797878183(whatsapp)
E-mail:Andy_he@scxled.cn
Web: www.rgbleddisplays.com
