Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens
Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens
Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens
Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens
Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens
Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens
Specifications
Brand Name :
SCXK
Model Number :
SMD-P3.91
Certification :
CB/CE/ROHS/FCC/ISO/UL
Place of Origin :
CHINA
MOQ :
10 SQM
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5800sqm month
Delivery Time :
4-11 working days
Packaging Details :
wooden case，flight case，it is up to you.
Application: :
Indoor
Color: :
Full Color
Panel Size: :
500*500mm
Pixel Pitch: :
3.91mm, 3.91mm
Cabinet size: :
500*500*64mm
Weight: :
6Kgs
Cabinet pixels (dots): :
128*128
Scan mode: :
1/16Scan
Refresh rate: :
1920Hz
Cabinet Material: :
Die Casting Alunimum
Brightness: :
1200nits
LED Chips: :
SMD2121
Description

GOB LED Die Cast 500 X 500 Mm P3.91 Full Color Video Indoor Rental Display Price P3.91mm Wall Smd Panel Led Screen

Product Features

1, Outdoor high resolution and high brightness, smallest pixel in the world 3.91mm, unequalled image quality in outdoor environment.
2, Ingress protection being IP65, weather proof and dust proof.
3, High brightness uniformity and color uniformity(≥95%)
4, Super thin and light with die-casting aluminum cabinet design.
5, Good anti-UV and anti-oxidation performance.
6, Large viewing distance, 140° in horizontal, 140° in vertical.
7, Excellent flatness and no splicing gap between modules
8, Quick installation and removal with facile connection lock

What is a GOB LED display?

GOB is Glue's high protection LED display on board, which is a new technology, similar to module packaging. It is working on the entire display module, for example 250*250mm. By covering the surface of the module's PCB board with patented transparent glue, thousands of SMD lamps have been soldered, and finally the module gets a special shield on its surface.

It uses high-protection LED display screen, with anti-collision, dust-proof, waterproof, moisture-proof, UV-proof, no harmful effects on heat dissipation and brightness loss. After a long period of rigorous testing, it has been clarified that the shielding glue even helps to dissipate heat and extend the service life.

The revolutionary change driving the entire LED display industry is that the goals of this GOB display are fine-pitch LED displays and rental screens, which have a natural need for LED diode protection.

Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens

Product specification

SMD P3.91
Lamp size 2121
Resolution/mm 3.91
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 64510/m²
Module resolution 64x64
Module size/mm 250x250
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >4200Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


Product Overviews

Items Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Material steel,aluminum ,die casting aluminum
Payment
terms		 30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.

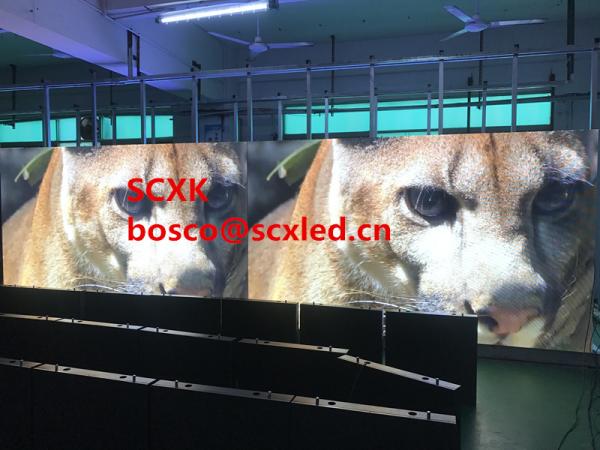

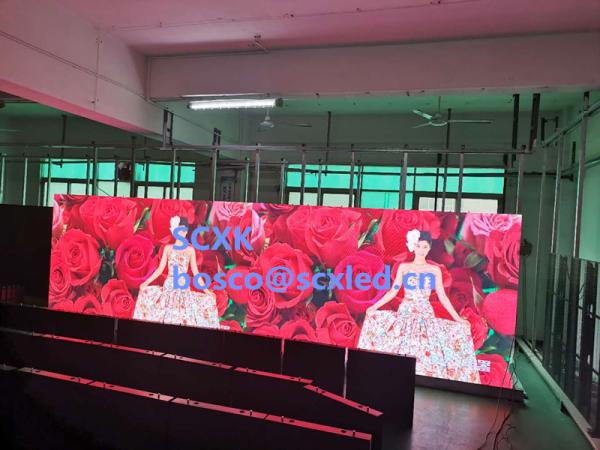

Production Pictures


Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens

Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens

Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens

Application

Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens

Package

Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens

Company Informaiton

Shenzhen ShiChuangXinke Electronics Co.,Ltd (SCX LED) was located in Shenzhen,We are the high technology enterprise Company,and specialized in research,development,production and sales the Rental LED display screen,Fix Install LED display sreen and Poster LED etc.
SCX LED is a full color LED display, LED screen and LED should products as the main business, scientific research, development, manufacturing, and engineering for the integration of high-tech enterprises. The company is located in shenzhen baoan district shajing, has a modern research and development base, equipped with the world advanced level of scientific research, production, analysis, testing equipment, has a high-quality scientific research team, committed to the development of the industry application in the field of photoelectric photoelectric products and services. Company strictly abide by the "honesty, keep promise" of the enterprise purpose, to build the company into a cross industry step by step, cross-regional, across the international large enterprises with comprehensive operation ability.

We warmly welcome clients from all over the world to contact us for more information,and we are looking forward to establishing long-term business relationship with you.

Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens
Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens

Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Die Cast 1200 Nits P3.91 SMD2121 Stage LED Screens
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images

Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

Our contact

Sales Engineer Supervisor: BOSCO
Skype: 15177780539
Wechat /Whatsapp: 0086-151-7778-0539
Mob.: 0086-151-7778-053
email:Bosco@scxled.cn
