Specifications
Brand Name :
SCXK
Model Number :
SCXK-P8
Certification :
CE,RoHS,FCC,CCC,SAA,TUV,UL
Place of Origin :
China(Mainland)
MOQ :
Negotiations
Price :
Negotiations
Payment Terms :
Western Union, T/T
Supply Ability :
5000sqs/month
Delivery Time :
7-10 working days after payment
Packaging Details :
Wooden and flight cases,it's up to you.
Brand name :
SCXK-Full Color LED Display
Cabinet Material :
Aluminum
Control system :
LSN
Module size :
256*128mm
Cabinet size :
640*640mm
Pixel density :
15625dots/sq
Brightness :
≥7500cd/sq
LED type :
SMD3535
Warranty :
3-5 years
Indoor options :
P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P8,P10...
Description

P8 China Guangdong stadium led display basketball led screen for large scoreboard display​



Specifications

outdoor P8 LED Display
Resolution/mm 8
Pixel configuration 1R1G1B
Pixel density/pixels/m² 15625/square meter
Module resolution 40x20
Module size/mm 256x128mm
View distance 14-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/4 SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



♦ Production process

1) Incoming Inspection→2)DIP→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing

If you are finding the RGB LED Display,for us,it's the good choice!!!
Our company has been in LED Display field for over 10 years,has the better technology and technicians,can provisde you the high quality products for good price that makes you satisfied.

To guarantee the quality,every year we update the equipment at least 2 times,further more,we are strict to our staffs.And the hygiene in the workshop can makes you comfortable.

Our company pays much attention to the quality,for our brand,also for customers' interests.
Die-Cast Aluminum Module Rental Large Scoreboard Display 256*128mm P8 Basketball LED Screen


Applications

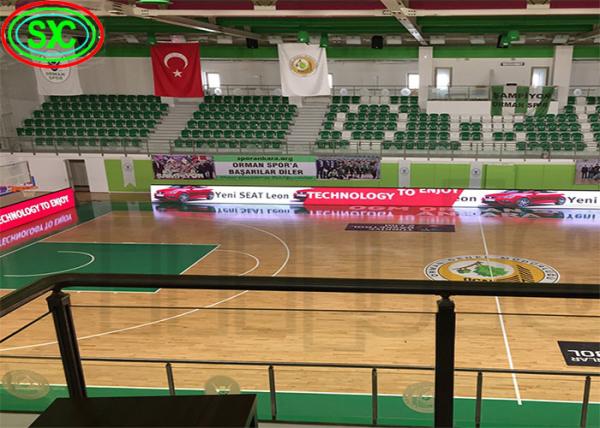

Airport indoor full-color LED display
Railway station indoor full-color LED display
Entertainment bar indoor full-color LED screen
Stadium indoor full-color LED display
Museum indoor full-color LED display
Auto exhibition LED display
Meeting room indoor full-color LED video display
Shopping mall indoor full-color LED display
Die-Cast Aluminum Module Rental Large Scoreboard Display 256*128mm P8 Basketball LED ScreenDie-Cast Aluminum Module Rental Large Scoreboard Display 256*128mm P8 Basketball LED ScreenDie-Cast Aluminum Module Rental Large Scoreboard Display 256*128mm P8 Basketball LED Screen
Die-Cast Aluminum Module Rental Large Scoreboard Display 256*128mm P8 Basketball LED ScreenDie-Cast Aluminum Module Rental Large Scoreboard Display 256*128mm P8 Basketball LED Screen
Die-Cast Aluminum Module Rental Large Scoreboard Display 256*128mm P8 Basketball LED Screen




Package and Delivery
Die-Cast Aluminum Module Rental Large Scoreboard Display 256*128mm P8 Basketball LED Screen


Die-Cast Aluminum Module Rental Large Scoreboard Display 256*128mm P8 Basketball LED Screen



If you have any questions about our products,just feel free to contact me,i'll be here all the time,and the reply for your inquiry whinin 4 hours.

Welcome to visit our website and inquire more info!!!
