Specifications
Brand Name :
SCXK
Model Number :
SCXK-P6
Certification :
CE,ISO,FCC,UL
Place of Origin :
China(Mainland)
MOQ :
3 sqms
Price :
570-660USD/sqm
Payment Terms :
T/T, Western Union
Supply Ability :
5000 sqms/month
Delivery Time :
12-15 working days after receiving your down payment.
Packaging Details :
Wooden and flight cases,it's up to you.
Color :
Full Color
Control System :
LSN
Module Size :
192*192mm
Cabinet Size :
576*576mm
Working Voltage :
DC5V
Resolution :
32*32
Waterproof :
IP65
Pixel Density :
27778dots/sqm
Certificate :
CE,ISO,FCC,UL
Description


Hanging Led Display P6 Good factory Price Advertising Bottle Module size For Publicizing


Info about us:

SCXK has been specialized in LED field since 2005. We are a leading manufacturer and provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules where in Shenzhen ctiy,Guangdong province,China.
We have a professional team and a series of equipments.Every year our products exported overseas and are popular among many foreign countries,also in our own country you can find the many application places.Such as station,airport,church,shopping mall,commercial centure,concert and so on.
From statium to TV station,conference&events,SCXK Electronics provide a wide range of eye-catching and energy saving LED screen solutions to industrial,commercial and governmental markets worldwide.


Part A: Product Features
1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.

2) Good heat emission, water proof and stable performance

3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal

4) High resolution and definition of screen image, clear and non-flash screen image.

5) Supports video and radio frequency input, special structure can be freely assembled.


Part B: Warranty


1.We guaratee all our display, modules, spare parts for TWO years.

2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.

3.After warranty, we also can offer you the parts for replacement at our bottom price.

4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once when we get it and offer you a good solution to solve the problem.

5.We also could solve problems for you antil it recovers well by remote control!

Part C: Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

Outdoor Hanging LED Display P6
Resolution/mm 6
Pixel configuration 1R1G1B
Pixel density/pixels/m² 27778/square meter
Module resolution 32x32mm
Module size/mm 192x192mm
View distance 6-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness 8000cd/square meter
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode

alternating driving current

Scanning mode 1/8 SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode

Asynchronous,3G,4G,Wifi

Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Aging hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Waterproof IP65
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

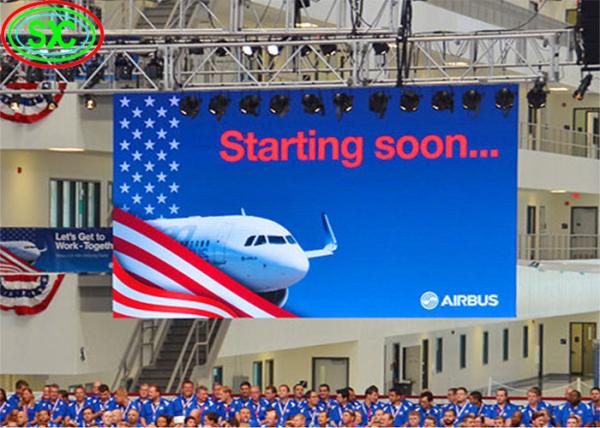

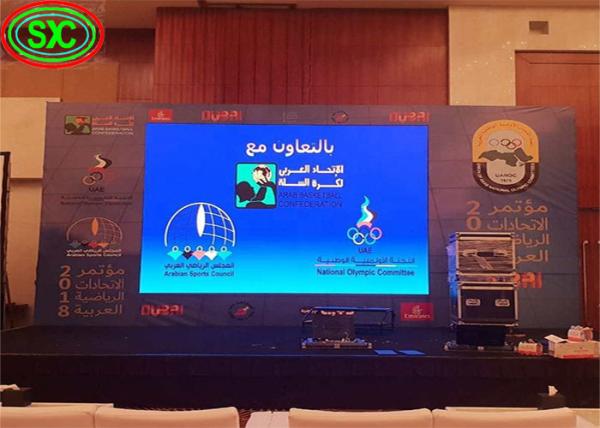

Our Cases:

Advertising Die-Cast Aluminum Rental Module P6 Suspended Non-Smudge HD LED DisplayAdvertising Die-Cast Aluminum Rental Module P6 Suspended Non-Smudge HD LED DisplayAdvertising Die-Cast Aluminum Rental Module P6 Suspended Non-Smudge HD LED Display
Advertising Die-Cast Aluminum Rental Module P6 Suspended Non-Smudge HD LED Display


___________________________________FAQ___________________________________

Q1:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q2: How to proceed an order for led display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q3: Is it OK to print my logo on led display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
