Specifications
Brand Name :
SCXK
Model Number :
SMD P5
Certification :
CB/CE/ROHS/FCC/ISO/UL
Place of Origin :
CHINA
MOQ :
16 sqm
Price :
680 usd per sqm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5300 sqm month
Delivery Time :
7-16 working days
Packaging Details :
wooden case,flight case,it is up to you.
Application: :
outdoor, Outdoor Advertising
Color :
full-color
Panel Size: :
320*160mm
Pixel Pitch: :
5mm
Product name: :
p5 outdoor led display
Brightness: :
5000-6500cd/sqm
Warranty :
2 Years
Cabinet size: :
960x960mm
Refresh rate: :
3840Hz
LED chip: :
Epistar
Description


Product specification

outdoor SMD P5
Lamp size 2121
Resolution/mm 5
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 40000/m²
Module resolution 64x32
Module size/mm 320x160
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/8
Frame rate 60Hz
Refresh frequency >1800Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

Our case

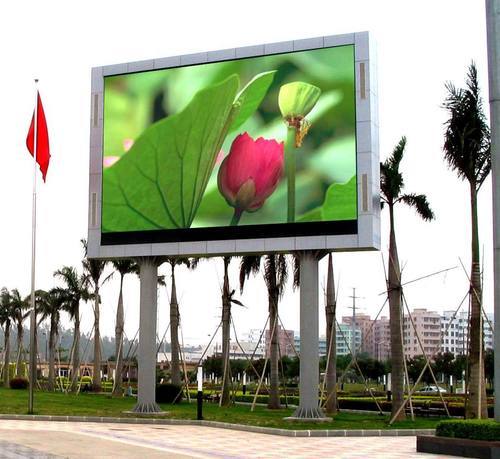

outdoor P5 960x960mm magnesium cabinet IP65 Nation star lamp fixed installation digital display screens advertising


Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.

Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

FAQ

Q1. Are you a factory or trading company?
A:We are a factory.
Q2. Can I have a sample order for led screen panel?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.
Q4. What's the shipping way, shipping time?
A:Our products could be shipped by Sea, by Air or by Express. Which method to be used is based on the weight and size of the package and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.
Q5. How to proceed an order for screen panels?
A: Please send us your purchase order by Email, Fax, Skype, Whats App, Facebook or making a call, and we will send you PI as your approval. Please let us know the following information for your order.
1) Product information: Quantity, Specification (Item , logo and Packing requirement)
2) Delivery time required
3) Shipping information: Company name, Detailed shipping address with zip code and Phone number.
Q6. Is it OK to print my logo on LED screen panel?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
