Specifications
Brand Name :
SCXK
Model Number :
P3.91
Certification :
CE,ROHS,FCC,SASO,CB,IECEE,SABER,PC
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 sqm per month
Delivery Time :
7 working days
Packaging Details :
Wooden Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
Led Module :
250*250mm
Module Resolution :
64*64
Led Lamp :
Kinglight/ Nationstar
Brightness :
1200cd/ sqm
Module Pixles :
4096dots
Driving Method :
1/16 scanning
Contrast Ratio :
≥4000:1
Color Temperature Condition :
3500K-9500K,(can be adjustable)
Number of Colors :
16.7 trillion
Viewing Angle :
Horizontal 140° Vertical 140°
Gray scale :
16384
Description

HD Indoor Advertising Led Display Screens Led Panels 500*500mm P3.91 Led Video Wall Flexible Led Module

Advertising Led Screens Advantages

1. It delivers an image which is super subtle and without getting tired after a longtime watchin.

2. Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear.

3. Front Serviceable Module allows easy Maintenance, Saving Time & Spac.

4. 16 Bit Grey Grade Processing, the color transition will be more natural.

Advertising Led Screens Specification

Module detail
Dimension
(w*h)
250*250mm
Resolution(w*h)
64*64 dots
Pixel Pitch
3.91 mm
Pixel Density
4096 dots
Pixel configuration
1G1B1R 3IN1
Package mode
SMD 2020
Kn light
Drive type
Constant drive
Scan mode
1/16 scan
Brightness of white balance
1200cd/m2
Refresh Frequency
>1920HZ
Standard LED Cabinet
Dimension(w*h*d)(mm)
500*500*70mm
Module Quantity
4pcs
Pixel per cabinet(w*h)
256*256 dots
Physical Pixel (total)
16384 dots
Weight/panel (kgs)
6 .5 kg
Cabinet Material
Die Casting Aluminum
Best viewing angle(w*h)
120*110
Best viewing distance
4-20m
POWER
Working voltage
AC 220V ±10%
Average power consumption
168W/m2
Max power consumption
<560 W/m2
current
<20 mA
temperature
Storage: -35℃ --85℃ working: -10℃ --50℃
Relative humidity
10%-95%
Driving IC
2038s
Power supply
200w
Refresh Frequency
>1920HZ
Grey scale
4096 gray level
Signal input format
AV,S-VIDEO, VGA, DVI.SDI,HDMI,YPBPR
Operating system
Windows/ cell phone/ WIFI

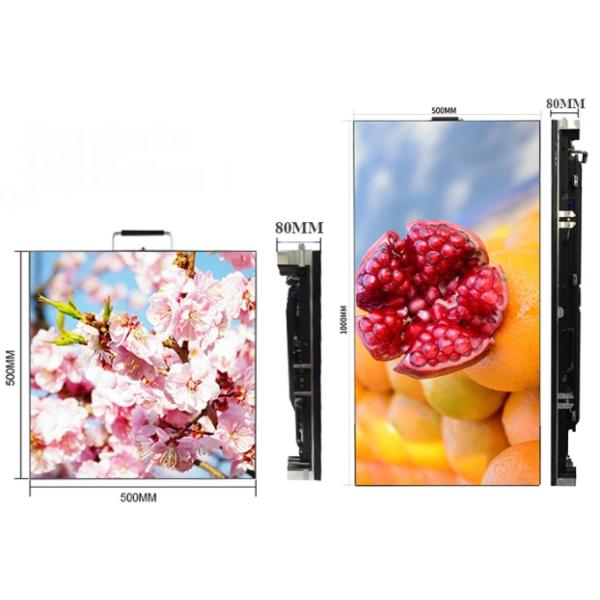

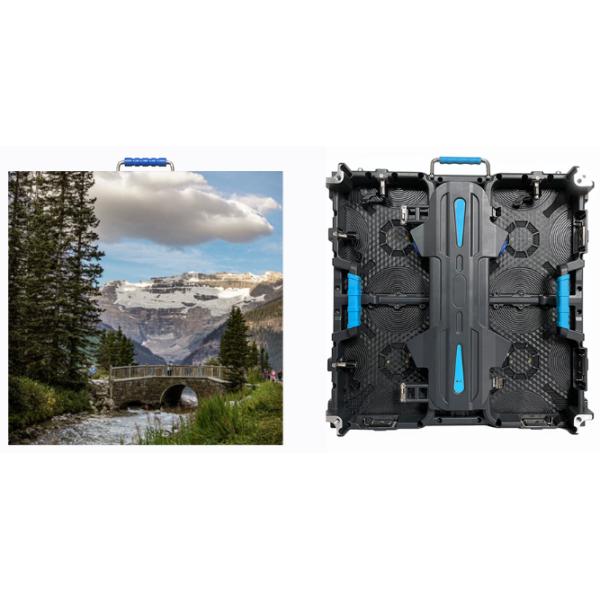

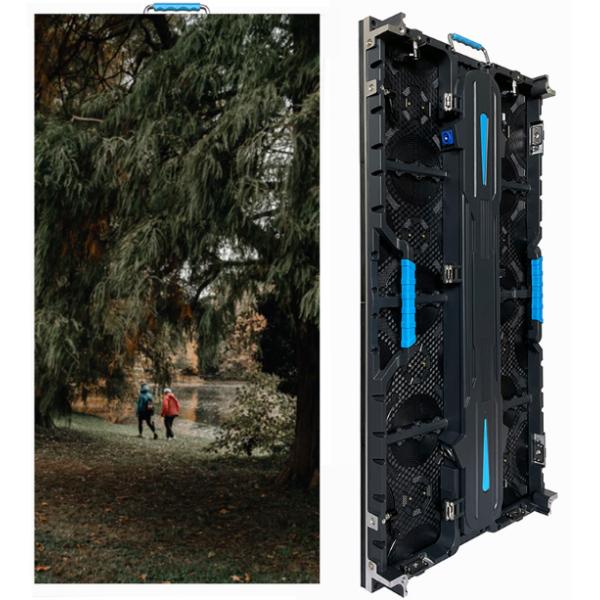

Advertising Led Screens Detailed Picture

HD Indoor Advertising Led Display Screens Led Panels 500*500mm P3.91 Led Video Wall Flexible Led Module

HD Indoor Advertising Led Display Screens Led Panels 500*500mm P3.91 Led Video Wall Flexible Led Module

HD Indoor Advertising Led Display Screens Led Panels 500*500mm P3.91 Led Video Wall Flexible Led Module

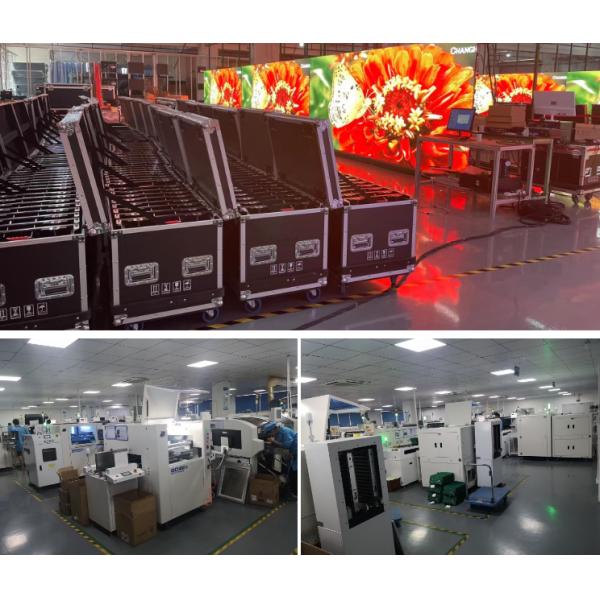

Factory

HD Indoor Advertising Led Display Screens Led Panels 500*500mm P3.91 Led Video Wall Flexible Led Module

HD Indoor Advertising Led Display Screens Led Panels 500*500mm P3.91 Led Video Wall Flexible Led Module

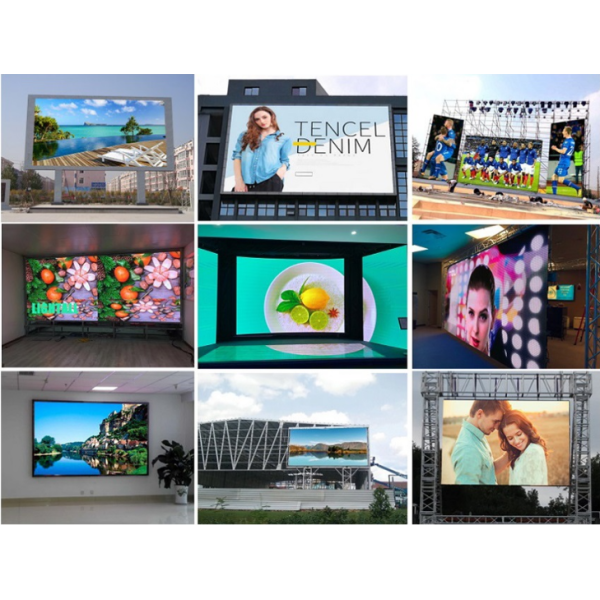

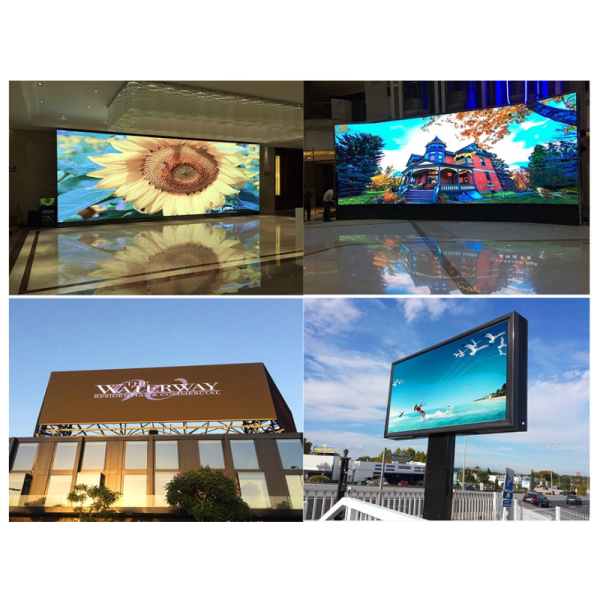

Advertising Led Screens Project

HD Indoor Advertising Led Display Screens Led Panels 500*500mm P3.91 Led Video Wall Flexible Led Module

HD Indoor Advertising Led Display Screens Led Panels 500*500mm P3.91 Led Video Wall Flexible Led Module

Our Service

Shenzhen ShiXin Display Technology has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.

Pre-sale service:

1. Reply enquiries in 24 hours.

2. Market research and forecast for customer.

3. Provide unique and professional solutions based on customer's requirement.

4. Data sheet and samples offer.

5. Other services, such as special packing design, factory visiting and so on.

In-sale service:

1. Tracking report in producing.

2. Quality test report for every order.

3. Photos and videos as per customer's requirement.

4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.

FAQ

Q1: What's the pixel pitch for choice?
A1:MG6 indoor series: P2.84 P3.125, P3.9, P4.8, p5.2 MG5 indoor series: P4.46, P6.25
MG7 outdoor series: P4.8, P5.9 MG5 outdoor series: P5.9, P6.9, P7.8, P8.9, P10.4

Q2: Where is it used for?
A2: Performance shows, sports activities, advertising, information publishing, celebrating activities, hotel entertainment ect.
One type realize Multi Function for creative stage led screen, advertising led screen, sky backdrop curtain, stadium screen, dance floor and Outdoor screen for indoor use.
Use as sky backdrop curtain: Adopting multi-fuction U structure connector, and combining the special structure design of Magic Stage, curved shape within ±15° and light & thin features.
Use as stadium screen: Adopting soft mask can protect the screen effectively when it gets impacted. And the top of the screen adopts soft cushion, which can protect the athletes when they collide with screen accidentally. Meanwhile, the bracket can be adjusted to ensure the best viewing angle.
Use as dance floor: Combine with magic stage own floor mask, realizing a broader viewing angle.Adding PC material mask, combine with special absorbing equipment, which will be more convenient for taking out cabinet.
Outdoor screen for indoor use:For Magic stage outdoor screen, when its brightness decrease to indoor use, the gray scale performance is still intact, keeping high image layered and bright-colored.

Q3: Can it play HD video?
A3: Yes, it can realize HD video function with several different controlling systems,such as Nova, Mooncell,linsn and so on.

Q4: What after service can provide?
A5: One year warranty, 24h online technical support, back-visiting customer for each year

Sending technical personnel to the scene in customers significant activities
