Specifications
Brand Name :
SCXK
Model Number :
SMD-P2
Certification :
CB,CE,ROHS,FCC,SASO
Place of Origin :
CHINA
MOQ :
16 SQM
Price :
negotiation
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
5000 sqm month
Delivery Time :
7-10 working days
Packaging Details :
wooden case,flight case,it is up to you
Application: :
Advertising
Color: :
Full color
Panel Size: :
Customized Size
Product name: :
Led Video Display Panel
LED chip: :
SMD1515
Cabinet size: :
512*512mm
Module size: :
256x128mm
Refresh rate: :
3840Hz
Material: :
Diecast Aluminum
Life span: :
100000hours
Certificate: :
CE ROHS FCC
Description

SCX LED Full color Free P2 movie indoor rental micro LED display video wall panel for stage concert advertising screen


Production Features

Application :

Dispatching Center, Control Command Center, Monitoring Center, Conference Video Center, Information Center,Demonstration Center, Studio Center and so on

Thin and Light Cabinet:

Simple , ultra thin and light design ,easy to install and transport

fanless, zero noise, low power consumption, automatic heat dissipation

High Definition and Exquisite Image:

Small-pitch series obtain high contrast and high gray scale, It can realize the HD and exquisite image

Supporting point-to-point correction, to ensure the color and brightness consistency

Exquisite color, clear and natural image with excellent RGB gray scale processing

Seamless and precise Connection:

Seamless connection with high flatness and soft image

Accurate and flexible installation, Buckle design for the sides to realize quick installation and disassembling

Professional and standard aviation plug with high quality guarantee

Product Parameters

Module Parameter
Pixel Pitch 4mm
Pixel Configuration SMD2121
Density 62500pixels/sqm
Module Resolution 64pixel(L) * 32pixel(H)
Module Dimension 256mm(L) * 128mm(H) * 25mm(D)
Driving Mode Constant current, 1/2 duty
Module Mask Pure black mask---high contrast screen
LED Cabinet
Module Quantity in a Cabinet 4(L) * 8(H)
Cabinet Dimension 1024(L)* 1024(H)* 150(D)mm
Cabinet Resolution 256(L) * 256(H)
Cabinet Material Steel
Cabinet Weight ≈30KG
Electricity Parameter
Optical Ratings
Brightness ≥1,200 cd/sqm
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥6m
Gray Grade 14 bits
Display Color 4.4 trillion Colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz Switchable
Max. Power Consumption 800W/sqm
Avg. Power Consumption 200 W/sqm
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance

100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Working Time ≥72 hours
Protection Grade IP34
Out-of-Control Pixel Rate ≤0.01%

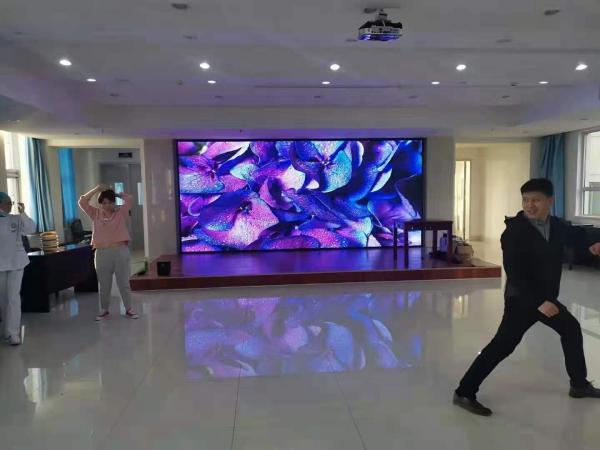

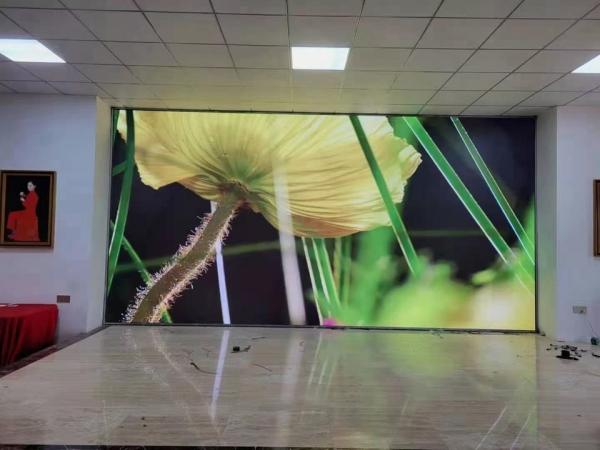

Our case

indoor p2 digital rental pantalla billboard advertising panels led screen video wall displayindoor p2 digital rental pantalla billboard advertising panels led screen video wall display

Installation Type

indoor p2 digital rental pantalla billboard advertising panels led screen video wall display

Our Service

Pre-sale service


1. Reply enquiries in 24 hours.


2. Market research and forecast for customer.


3. Provide professional solutions based on customer's requirement.


4. Offer sample and all document as customers required.


5. Other services, such as factory visiting and so on.

In-sale service


1. Tracking report of production.


2. Quality test report for every order.


3. Photos and videos as per customer's requirement.


After-sale service


1. Lifetime maintenance and software upgrade.


2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.


3. Free technician training.


4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.


5. Engineer guide installation onsite if needed.

FAQ

1.How can i place an order?

Please provide the details of your requirement for Led screen, like:

A.Indoor or outdoor Led screen you prefer?

B.What’s the width and height ?

C.Fixed or rental installation?

Once receive your requirement ,will send you quotation, for further discussion, had better to contact with us in the e-mail , WhatsApp or skype.

2.What kind of led display we provide?

We can provide many types of led screen: for example: indoor Led screen,outdoor Led screen, fixed led screen, rental led screen, led poster, irregular Led screen ect.

3.What about delivery time for the order?

7~25 days, depends on the detailed requirements.

4.How about the warranty?

We have 2 years warranty and lifelong maintenance

5.What is your terms of delivery?

We accept EXW, FOB, CIF, CFR ,DDU. You can choose the one which is the most convenient or cost effective for you.
