Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless
Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless
Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless
Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless
Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless
Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless
Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless
Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless
Specifications
Brand Name :
SCXK
Model Number :
SMD-P3
Certification :
CB,CE,ROHS,FCC,SASO
Place of Origin :
CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 sqm month
Delivery Time :
7-10 working days
Packaging Details :
wooden case，flight case，it is up to you
Lamp size :
2121
Resolution/mm :
3
Pixel configuration :
RGB 3 in 1
Pixel density/pixels/m² :
111111/m²
Module size/mm :
192x192
Scanning mode :
1/13
Refresh frequency :
>3000Hz
warranty :
3 years
Description

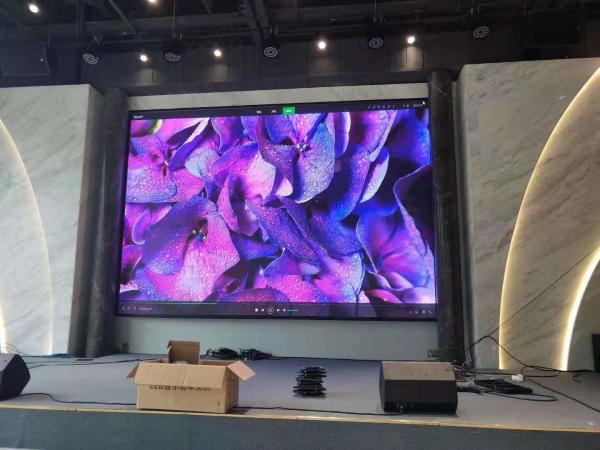

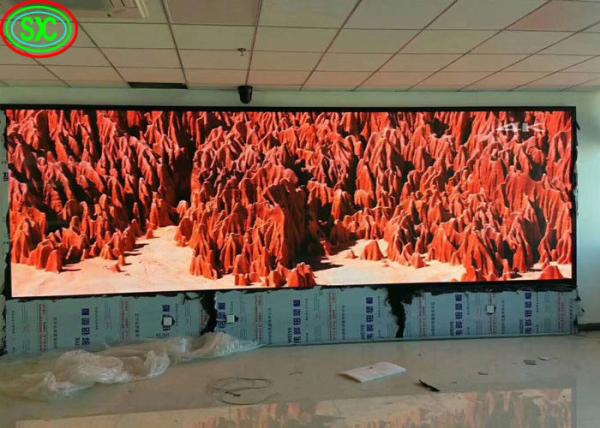

HD P3 576 X 576mm indoor Rental LED Display Screen For Events

♦ Features

1, Seamless connection.

2, Special design for the mask to realize higher contrast and larger viewing angle.

3, Signal backup and power backup.

4, Brightness and chromaticity calibration.

♦ Ultra Slim and light weight

die casting aluminum cabient

size: 576x576mm

Thickness: 8cm

One hand lifting available

♦ Product specification

indoor SMD 3
Lamp size 2121
Resolution/mm 3
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 111111/m²
Module resolution 64x64
Module size/mm 192x192
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >2500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/13
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%


♦ About us:

Established in 2005, clients cover more than 50 cuntries, Mainly USA, Europe, dubai, north and mid america, south america, asia. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service. Even face with harshest environment,we can carefully choose different suitable materials and make the best offer.

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

Special Performance

Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless

Accessories

Rental Outdoor Full Color LED Display , HD P3 Led Video Display Panel Seamless

Advantage

Ultra-light---lighter 40% than aluminum die-csting cabinet

Super slim---high-strength,more slim than aluminum in the design,thiner around 30%

Fast cooling---wxcellent heat dissipation perormance to protet the modular circuit

Anti-interference---special anti electromagnetic interference function

High strength---support the weight of 300kg through tension test,more strength than aluminum

Easy installation---installed by quick lock for 20s only

High precision---seamless splicing though CNC machining

High universality---can be processed according to module drawing,used for outdoor and indoor

Easy maintenance---can be maintained form front side

High cost-effective---large-scale production,complete production & supply chain

Our Service

1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure

♦ Our contact

Sales Engineer Manager: Bosco
Skype: 008615177780539
Wechat /Whatsapp: 0086-151-7778-0539
Mob.: 0086-151-7778-0539
