LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet
Specifications
Brand Name :
SCXK
Model Number :
P8
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
CHINA
MOQ :
12 sqm
Price :
negotation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5100 sqm per month
Delivery Time :
4-12 working days
Packaging Details :
plywood case, flight case, you choose what you like.
Application :
video
Screen Dimension: :
256*128mm
Certificate: :
CE ROHS FCC
LED chip: :
Nationstar
Brightness: :
8000cd/m2
Cabinet size: :
1024x1024mm
Pixel density: :
15625dots/m2
warranty :
3 years
Description

SCX LED Led Display P8 Outdoor Led Video Wall P8 Advertising Billboard High Brightness Outdoor led screen

LED cabinet parameter of the P8 fixed led display
Specifications: W768*H768
Weight: 35kg
Material: Iron or Aluminum
Installation method: On pole, Mounted on the wall, Hanging on the wall, on the roof
Use environment: Outdoor IP65
Includes accessories: Control system,power supply, led module,connecting piece,cables
Cabinet color: black
Door color: black

Characteristics
1. Specification: 768mm*768mm
2. Thickness: 130mm
3. Material: iron, aluminum
4. Protection level: IP65
5. Features: outdoor box, double door structure, door panel inlet and outlet, equipped with cover, fixed installation, cabinet can be customized

Module Parameter

Pixel pitch 8mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 3528
Module size mm
LED lamp KingLight or Nationstar
Module resolution 32x16dots


Cabinet Parameter

Cabinet size 1024x1024mm
Cabinet material ironed steel cabinet
Cabinet weight 37.5kg
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 15625 dots/m²
Brightness ≥5500 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 8m
Max.power consumption 850W/m²
Avg.power consumption 350 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 65536
Refresh rate ≥1920Hz
MTBF ≥100,000 hours
Lifespan ≥500,000 hours
Protective function Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.

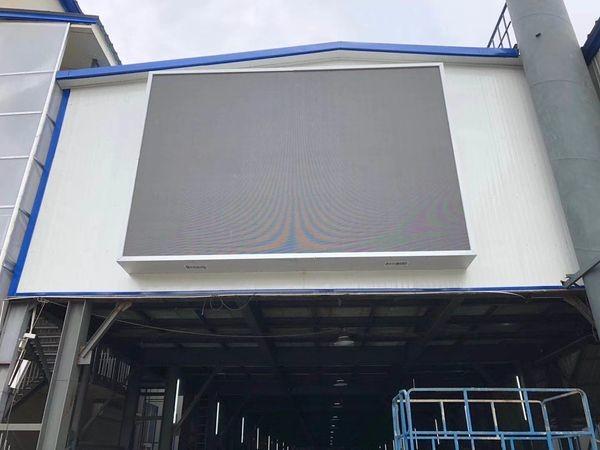

Our case

LED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinetLED display outdoor P8 with 960X960MM smd 3535 outdoor led video display fixed cabinet

Why choose us

Continues Quality

With more than 10 years experience in led display,equipments are updated regularly.What’s more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built effective modular production.We always stick to promote the technical innovation and reduce cost to benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.

After-sales:We will track the products usage and then constantly perfect our products.


Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.

FAQ

Q: How to buy your products?
Contact us in advance to inquire about the specific model.
The general procedure is: sign a contract, pay by wire transfer, and contact the shipping company to ship the goods to your
country.


Q: What is the warranty?
The warranty period is one year from the date of qualified commissioning, and we will provide you with accessories.

Q: Can we visit your company?
Of course, we can visit the instrument by video call or come to our company.

Q: What is the validity period of the quotation?
Our price is generally valid within one month from the date of quotation, and the price will be adjusted appropriately according to market changes.

Q: Do you have a CE certificate?
Yes, most of our products have CE certificates.
