24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
Specifications
Brand Name :
SCXK
Model Number :
P3.91
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1sqm
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
7-15 working days
Packaging Details :
wooden case or flight case are available.
Pixel pitch :
3.91mm
Pixel configuration :
SMD 3in1
Pixel density :
65410dots/m2
Module size :
250x250mm
Driving mode :
1/16 scan
Brightness :
≥1500cd/m2
Cabinet size :
500x1000mm
Cabinet material :
die casting aluminum
Warranty :
3 year
Description

24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution



Module Parameter:

Pixel pitch 3.91mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 2121
Module size 250x250mm
Module resolution 64*64dots


Cabinet Parameter:

Cabinet size 500x1000mm
Cabinet material die casting aluminum
Cabinet weight 12.6kg
Ingress protection IP43


Whole Screen Parameter

Pixel density 65410 dots/m²
Brightness ≥1500 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 3.91m
Max.power consumption 750W/m²
Avg.power consumption 300W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 14-16bits
Frame frequency >1000frames
Refresh rate >1920Hz
MTBF ≥100,000 hours
Lifespan ≥100,000 hours
Operating temperature -10℃ ~ +40℃
Storage temperature -20℃ ~ +60℃


Control System Parameter:

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.


Product pictures
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution

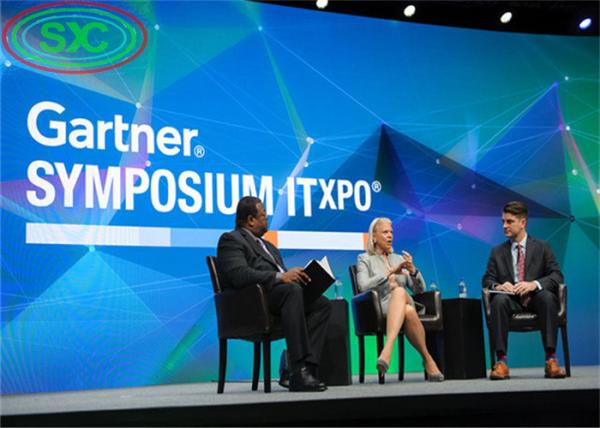

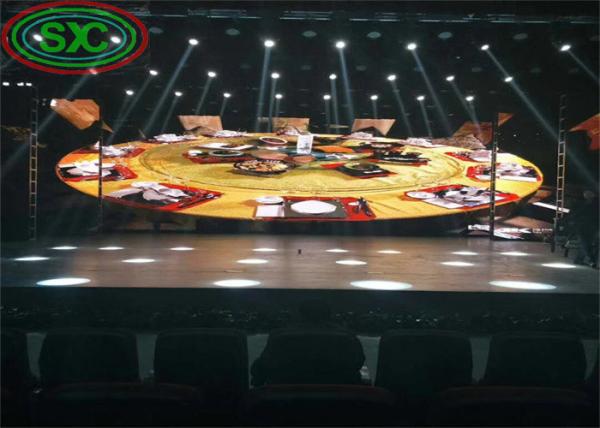

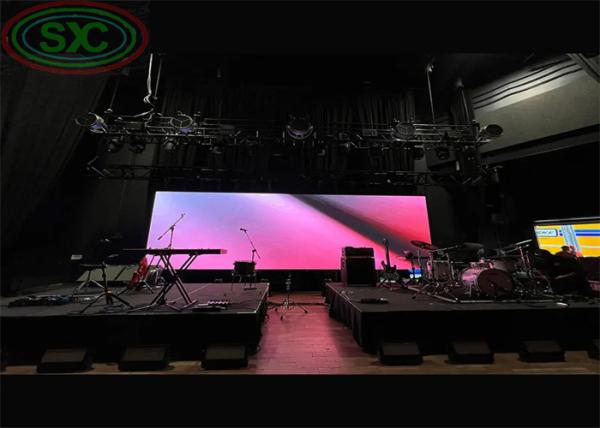

Total installation effect
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution

Company profile
Shenzhen SCXK Electronic Co.,Ltd established in 2009 and has the standard new factory, about 100 employees. We have outstanding R&D department and after-sell service workers, and separately design ability. Our product mainly included led indoor full color display, led outdoor full color display,led indoor full color display, led wireless car usd screen, poster screen,transparent screen etc.It can be used on the shopping mall, bank, bus station, train station, center of downtown, airport,school,factory,bus,taxi and so on. We adapt many methods and very good after-sell service to sell our product all over the world. Whenever and wherever we are, we always take the principle that is: professional makes good quality,good price product market to price product market to provide perfect product and service for our customers.
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
Certificate
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution
24-inch RGB LED Monitor with 3.91mm Pixel Pitch and FHD 1920x1080 Resolution

Our service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
