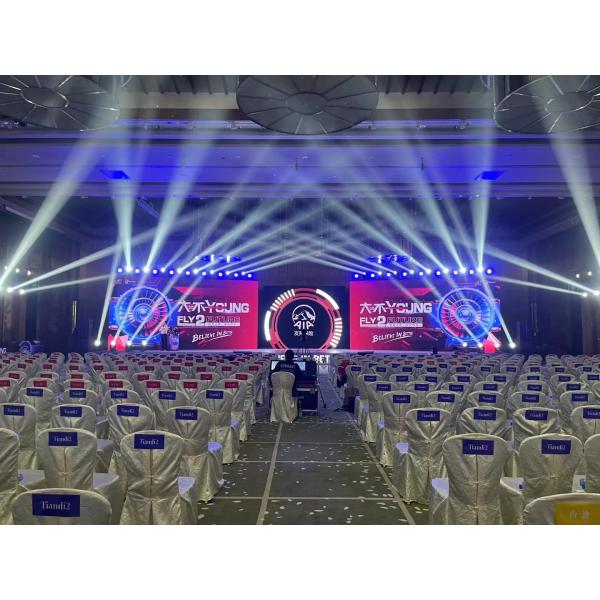

P5 Stage LED Screen 1R1G1B for Big Events Advertising Video Panel Outdoor IP65
The stage LED large screen can cut a picture into multiple video pictures. The display screen can play the related large background independently, in combination, or in any combination. The large screen can be displayed in partitions according to the performance requirements, and can realize the superposition of pictures and texts. The background picture can be played or synthesized through the video signal processor, and can play close-ups of people, can do text scrolling, or insert broadcasting, and can move the video picture horizontally. It can also be upgraded or downgraded to text, personalized video pictures, brighten and beautify the stage background and stage floor. Through software design and system control, it can meet the owner's other requirements and advantages. It adopts a frame structure design, which is convenient and reliable to disassemble and assemble, and easy to maintain. It is suitable for various large entertainment venues and large-scale activities.
Specifications :
Outdoor P5 LED Display Screen | |||||
Resolution/mm | 5 | ||||
Pixel configuration | 1R1G1B | ||||
Pixel density/pixels/m² | 40000/square meter | ||||
Module resolution | 64x32 | ||||
Module size/mm | 320x160 | ||||
View distance | 5-100m | ||||
Single point brightness adjust | Can be added | ||||
Single point color adjust | Can be added | ||||
White balance brightness | >5000cd/square meter | ||||
Color temperature | 6500K-9500K | ||||
Horizontal view angle | 120(degrees) | ||||
Vertical view angle | 60(degrees) | ||||
Signal Process bit | 10 or 16bit | ||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
Driving mode | Constant driving current | ||||
Scanning mode | 1/8 SCANNING | ||||
Frame rate | 60Hz | ||||
Refresh frequency | >1000Hz | ||||
Control mode | Computer synchronous | ||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
255 steps. No grey loss | |||||
Out of control point | <1/10000 | ||||
Working hours | ≥72hours | ||||
Mean Time Between Failure | >5000hours | ||||
Life time | 100000hours | ||||
Life-all-white(brightness halving) | 50000hours | ||||
Environment temperature range | Operating temperature range: -20-45℃ | ||||
Self-check technology | LED spot self-check, communications check, power check, | ||||
temperature monitor(need customization) | |||||
Remote monitoring | Remote supervision and control, record potential fault, | ||||
send out warning signs to the operators.(need customization) | |||||
Software environment | WindowsNT,Windows1999,WindowsXP | ||||
Luminous point width between centres | Deviation<3% | ||||
Brightness uniformity | <10% | ||||
Color uniformity(chromaticity coordinate) | ±0.003 | ||||
Power supply request | AC85-264V(50Hz-60Hz) | ||||
Contrast | (1000:1) | ||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
Humidity(working) | working:10-95% | ||||
Humidity(storing) | storing:10-95% |
FAQ
Q1: How to help client choose suitable display?
A1:
(1)specific application scenario
(2)viewing distance requirement
(3)display brightness requirement
(4)specific installation environment
(5)budget and cost control
Q2: What about your technical support?
A2: Proffessional engineers are on standby, can offer guidance, on site technical support as required.
Q3: What's the control system?
A3: For synchronization control: Nova, Linsn or Mooncell control system.
For asynchronous control: Onbon or Xixun control system.
Q4: What's the warranty of your LED displays?
A4: We provide 2 years warranty and conditioned lifetime technical support for our LED display products.
Q5: What's your payment method?
A5: Our payment method is T/T 30% as deposit, balancing before delivery.
The Role of Stage LED Large Screen:
1. Enriching the content of the performance;
2. Create associations and invigorate the atmosphere;
3. Variety and flexibility;
