Specifications
Brand Name :
SCXK
Model Number :
SMD P4.81
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Item name :
P4.81 waterproof interactive Dance floor led display , led dance floor rental
module size :
250x250
Input voltage :
DC15V
Max power :
15W
OEM or ODM service :
Accept
Emitting Color: :
Changeable, RGB
Description

P4.81 waterproof interactive Dance floor led display , led dance floor rental

♦ Description

More than 13 bit gray level processing and 3500 CD/m2 as brightness make picture more realistic and clearer.Mainly used in indoor and outdoor, government buildings, halls, enterprises and institutions hall square, showroom, stage, and party scene; It can be made into different shapes, such as ceilings, T-stage, arc and stair shape, and is suitable for fixed installation and rental use.

Display function

graphics, animations, pictures, text, videos,

♦ Product specification

LED Specifications
1 Type SMD
2 LED Standard Real Pixel(1R1G1B)
3 Red Wavelength 625-630nm
4 Green Wavelength 515-530nm
5 Blue Wavelength 465-475nm
Module Specifications
1 Pixel Pitch 4.81mm
2 Resolution 52x52dots
3 Module size 250x250mm
Cabinet Specifications
1 Cabinet Size(W*H) 500x500mm
2 Cabinet Resolution 104x104dots
3 Pixel Density 43222dots/㎡
4 Cabinet Weight ≤6.5kg
5 Material die casting aluminum
6 Flatness of cabinet ≤0.3mm
Screen Parameters
1 Color /Brightness Calibration Yes
2 Color Temperature(K) 3000-10000
3 Light Centre Distance Deviation <3%
4 Brightness Uniformity ≥97%
5 Color Uniformity Within ±0.003C×,Cy
6 Contrast Ratio 5000:1
7 View Angle Horizontal160°/ Vertical 140°
8 Input Voltage AC100~240V(50-60Hz)
9 Power Consumption Max:800w/㎡ Avg:280w/㎡
10 Driving Method 13 scaning
11 Protection Level IP65 waterproof
12 Grey Scale Levels R(256) G(256) B(256)
13 Life Span 100,000 Hrs
14 Temperature-Operating -20 — 40℃
15 Humidity-Operating 10 - 99%
16 Features anti-slip,anti-collision,big load-bearing capacity
17 Usage led floors, led wall background
18 Display function txt, picture, video

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range

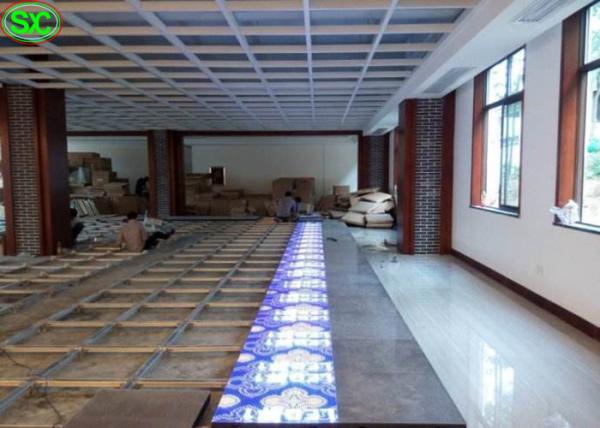

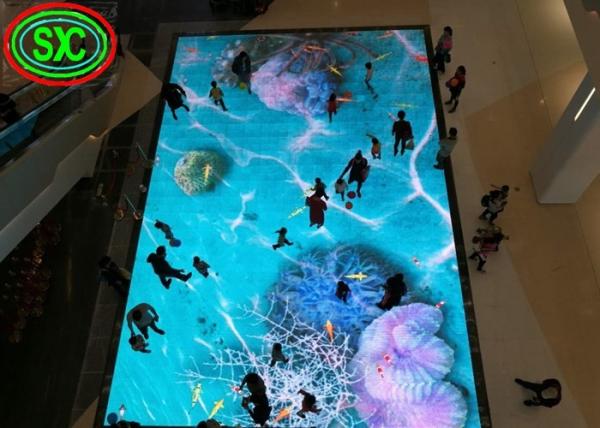

♦ Project

Waterproof Interactive LED Dance Floor Display P4.81 DC 15V Die Casting Aluminum

♦ Why choose us:

Continues Quality

With more than 12 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

Our team will be forever here to offer you full supports !!!
