SMD RGB P3.91 LED Outdoor Advertising Screens , Commercial Advertising LED Display High Contrast
SMD RGB P3.91 LED Outdoor Advertising Screens , Commercial Advertising LED Display High Contrast
SMD RGB P3.91 LED Outdoor Advertising Screens , Commercial Advertising LED Display High Contrast
SMD RGB P3.91 LED Outdoor Advertising Screens , Commercial Advertising LED Display High Contrast
SMD RGB P3.91 LED Outdoor Advertising Screens , Commercial Advertising LED Display High Contrast
SMD RGB P3.91 LED Outdoor Advertising Screens , Commercial Advertising LED Display High Contrast
Specifications
Brand Name :
SCXK
Model Number :
SMD P3
Certification :
CB,CE,ROHS,FCC,SASO
Place of Origin :
CHINA
MOQ :
negotiation
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 sqm month
Delivery Time :
7-10 working day
Packaging Details :
wooden case，flight case.
Led Module: :
250*250mm
Scanning Mode: :
1/16
Contrast Ratio: :
≥3000:1
Color Temperature Condition: :
3500K～9500K,(can Be Adjustable)
Pixel Conguration :
SMD 2020
Pixel Matrix per Panel(dots) :
250x 250 dots
Pixel Density(dots/m²) :
65410 dots/m²
Refresh Rate(Hz) :
≥3840Hz
Warranty :
3 years
Description

SMD RGB Indoor/outdoor P3.91 pixel pitch led display screen for advertising curved/straight led video wall

Product Features

1. Classical design and natural technic,reliable quality and great performance.
2. Seamless connecting tech.,screen flatness error <0.1mm.
3. Patented mask,eliminating the dark spots,improving consistency and viewing angle.
4. High contrast,ideal gray scale,presenting the most real pictures.
5. Supporting brightness and color correcting of the whole screen.
6. Ideal load of power and parameter setting,make screen under the best working condition,moreover,furthest slow down brightness and color reduction.

Product Description

SPECIFICATION
Parameters P3.91
Pixel Pitch(mm) 3.91 mm
Pixel Conguration SMD 2020
Pixel Matrix per Panel(dots) 250x 250 dots
Pixel Density(dots/m²) 65410 dots/m²
Cabinet Size(mm) 500x500x 63mm
Panel Dimension(W×H×D) ( 18.9”×18.9”×2.5”)
Panel Material Die-casting Aluminum
Panel Weight(kg/panel) 6.5 kg/panel (12.3 lb/panel )
Color Depth(Bit) 16 bit
Refresh Rate(Hz) ≥3840Hz
Driver Method/scan Scan 1/32
Brightness(nits) 1200nits, adjustable
Horizontal Viewing Angle(°) 160 °
Vertical Viewing Angle(°) 160 °
AC Power Input(V) AC110V~ 220V ±10%
AC Power Frequency(Hz) 50 ~ 60 Hz
Max. Power(W/m²) 520 W/m²
Avg. Power(W/m²) 170 W/m²
Storage/Operating Humidity(RH ) 10% ~ 90%RH
IP Rating(IP ) IP30 / IP30
Lifetime Typical Value(Hrs) 100,000 Hrs
Installation Type Fix , Front installation
Maintenance Method Front & Rear serviceable
Certications TUV-CE,ETL

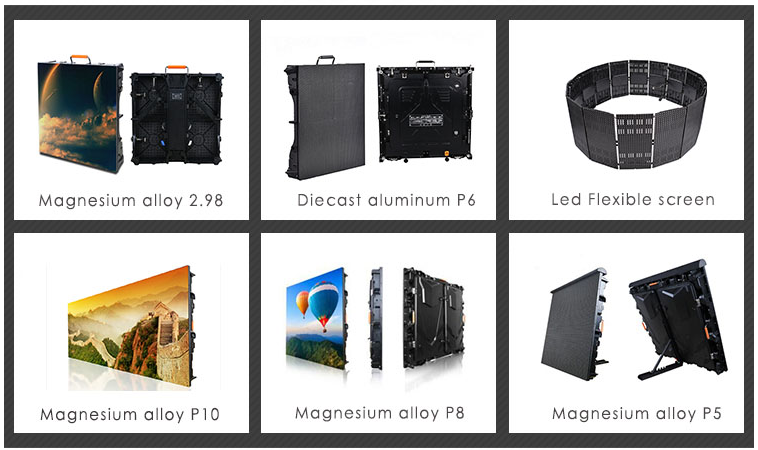

Related Product

SMD RGB P3.91 LED Outdoor Advertising Screens , Commercial Advertising LED Display High Contrast

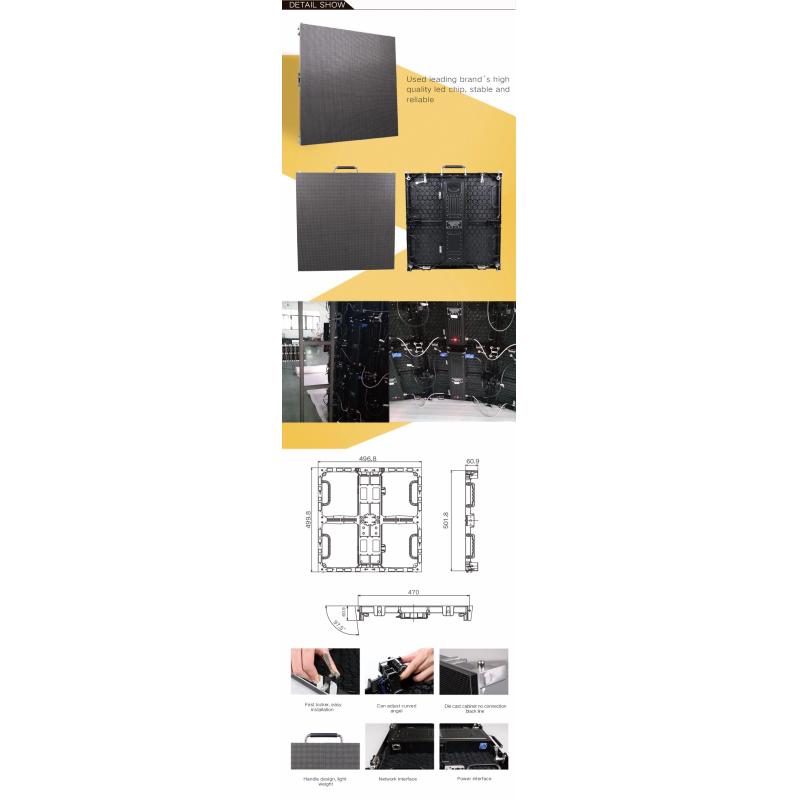

Detail Show

SMD RGB P3.91 LED Outdoor Advertising Screens , Commercial Advertising LED Display High Contrast


Our Service

1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure

FAQ

Q1. Can I have a sample order for led display?

A: Yes, we welcome sample order to test and check quality. Mixed samples are aceptable.

Q2. What about the delivery lead time?

A: About 22 days after receiving payment.

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc led panel for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the solution and places deposits for formal order.
Fourthly We arrange the production.
