P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display
P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display
P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display
P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display
P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display
P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display
P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display
P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display
Specifications
Brand Name :
SCX
Model Number :
P6.67
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
CHINA
MOQ :
13 sqm
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
4300 sqm month
Delivery Time :
3-16 working days
Packaging Details :
flight case, wooden case, carton, it is up to you.
Application: :
Outdoor
Color: :
Full color
Panel Size: :
960X960mm
Pixel Pitch: :
6.67mm
Product name: :
P6.67 Outdoor Stadium Led Display
Cabinet material: :
Die Casting Aluminum
Refresh rate: :
1920-3840Hz
Installation: :
Floor Standing/Hanging
Certificate: :
CE ROHS FCC
Weight: :
26KG
Description

SCX LED 960*960Mm P6.67 Football Soccer Sports Stadium Perimeter Advertising Outdoor Led Signage Boards Display Screen Panel

Features:
1. High waterproof IP65, suit for outdoor application.

2. Cabinet material has Iron Cabinet,Aluminum Cabinet, Magnesium Alloy Cabinet selection.

3. Fully front service,module size is 320*320mm, cabinet size is customized.

4. High brightness to used for outdoor led billboard display, brightness can adjusted automatically.

5. Aviation plug design, easy and fast to connect each cabinets and light them up.
6. High quality with Nationstar led lamp, high refreh IC driver...
7. Suit for P10 Outdoor,P8 Outdoor,P6.67 Outdoor,P5.3 Outdoor,P4 Outdoor, P3.33 Outdoor

♦ outdoor p6.67 led display Product specification

outdoor SMD P6.67
Lamp size 3535
Resolution/mm 6.67
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 22478/m²
Module resolution 32x16
Module size/mm 320x160
View distance ≥5m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 120(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1200Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1100W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)
Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

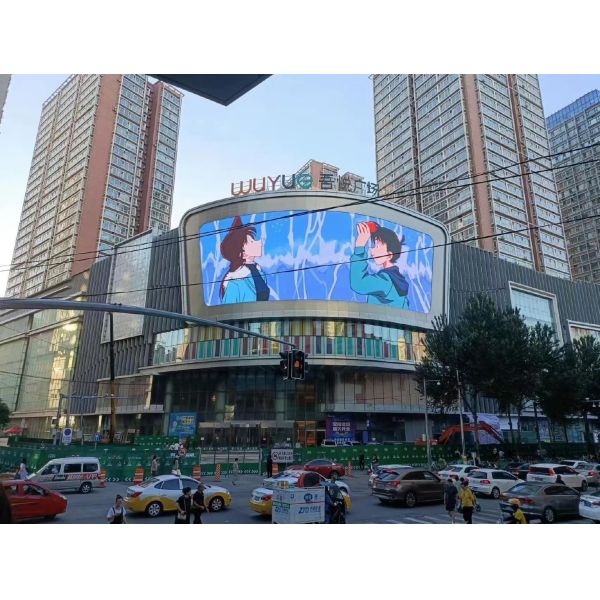

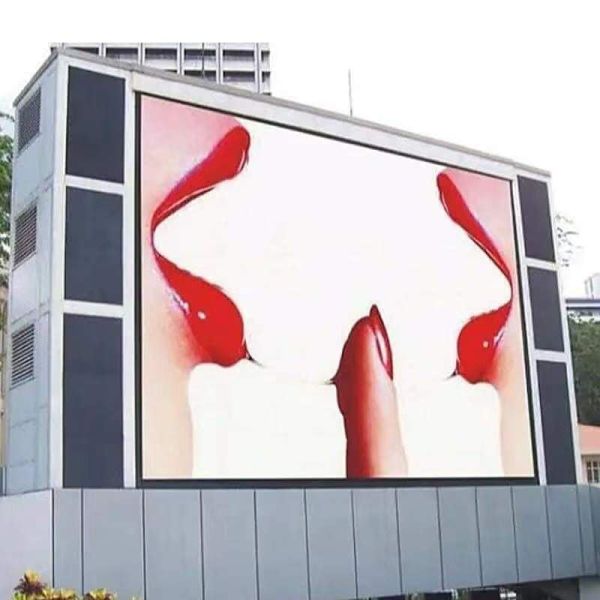

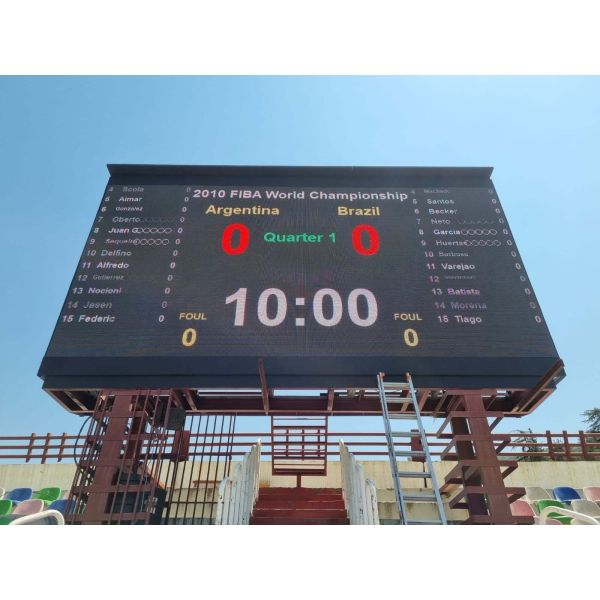

Our case

P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED displayP6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display

Our company

P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED displayP6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display

♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

♦ Packaging and shipping

P6.67 full color outdoor LED display module Nationstar waterproof IP68 led module front service P6.67 P8 P10 LED display

FAQ

Q1. Can I have a sample order for led display?

A: Yes, we welcome sample order to test and check quality.We will give for free after you place an order.

Q2. What about the lead time?

A:Sample needs 5-7 days, mass production time needs 2-3 weeks for order quantity more than

Q3.How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the goods and places deposit for formal order.
Fourthly We arrange the production.

Q5. Is it OK to print my logo on leddisplay product?

A: Yes. Please inform us formally before our production and confirm the design with you.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.
