1. Totally front service design. Led module, power supply and receiver card are front maintenance.
2. Cabinet resolution: easy to match 2K/4K.
3. Led type is GOB not SMD.Waterproof, anti-collision and dust-proof to prolong led displays lifespan.
4. Ultra thin design, thickness is less than 90mm.
5. 4K high refresh rate.
Indoor Full Color Led Display Specifications
Pixel Information | Pixel Pitch | 2.5mm |
Pixel Density | 147456dots/m2 | |
Pixel Configuration | SMD2121 | |
LED Wavelength | Red:615 nm - 635 nm | |
Green:520 nm - 535 nm | ||
Blue:465 nm - 475 nm | ||
LED Module | Size(mm) | 320Width) * 160(Height) |
Resolution | 64 (Width) * 64(Height) | |
Cabinet | Size(mm) | 500(Width) * 500(Height) |
Resolution | 128(Width) * 128(Height) | |
Total QYT Module Per Cabinet | 2(Width) * 2(Height) | |
Material | Steel, Die-casting Aluminum | |
Power | Input Voltage | 100-240V AC, 50/60Hz |
Max Power Consumption | 800 Watt/sqm | |
Avg. Power Consumption | 350 Watt/sqm | |
Brightness | 5000cd/m2 | |
Brightness Uniformity | Luminance Discrepancy < 5% | |
Best Viewing Angle | Horizontal:140°, Vertical:140° | |
Ambient Conditions | Temperature Range | Working:-20deg. to +65deg |
Operating Humidity | 10%-90%RH | |
Ingression Protection Grade | IP40 | |
Processing | Scanning Mode | 1/32scan |
Refresh Rate | >2460Hz, Adjustable(depends on control system) | |
Signal Input | DVI, Composite Video for Live Video | |
Supported Networking | Through LAN/WAN, RS 232/RS485 | |
Controller | Linsn or Nova |

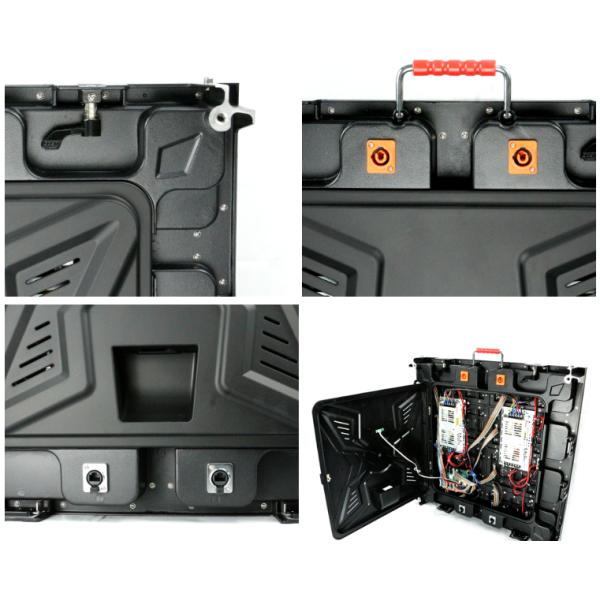

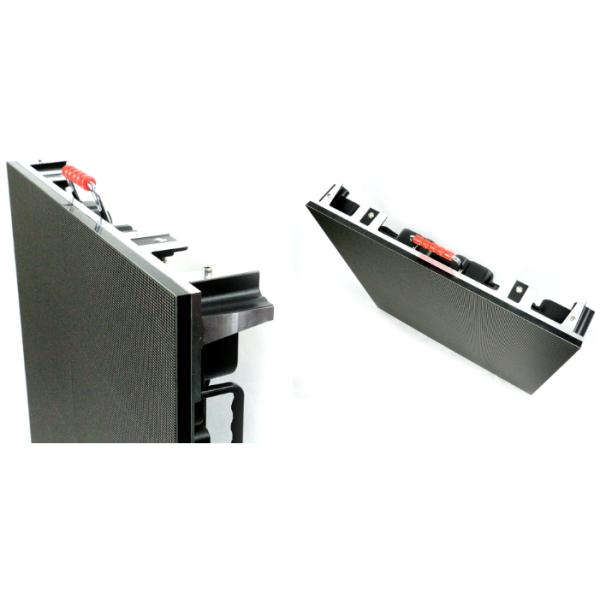

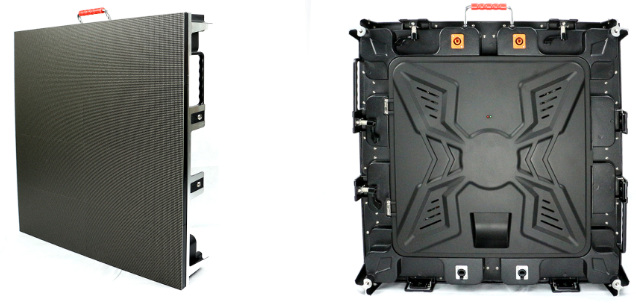

Indoor Full Color Led Display Detailed Pictures

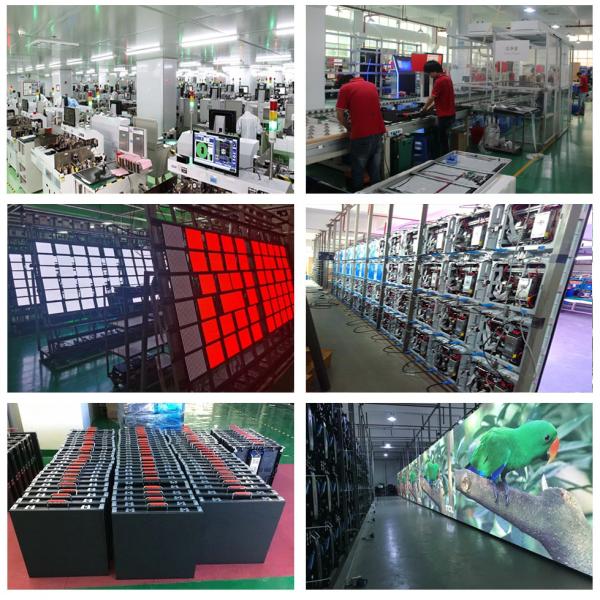

Indoor Full Color Led Display Production Process
1. Standard processing technology to ensure that each row and each column tube at the same level, ensure the stability of the clear picture.
2. High quality LED chips, anti static, high wavelength stability
3. We seriously practice 24 hours led module testing time and 72 hours led display aging time .Before shipping and within the warranty time ,our team will track the goods situation to satisfy all your request .
4. Advanced packaging equipment, guarantee the quality and life expectancy

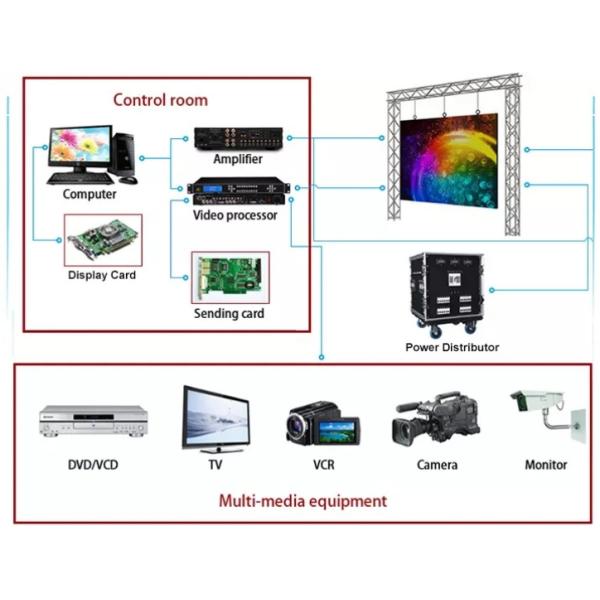

Working Principle of Led Screen
Company information
Shenzhen ShiChuangXinKe Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
Why Choose US ?
1.Having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 13 years of experience gives us the edge!
2. We currently provide OEM/ODM services for many customers worldwide, building, proof of concepts, designs and large orders is our strength.
3.We understand that our new partners need to order samples, we encourage them to do so, once you have seen the quality of our products you will understand why we are number one in our market.
4.Many of our current products are available in a very fast manner in order for you to test and approve of our strong quality of goods. Don’t be fooled by some factories that will offer the best products below the market price, you pay for what you get is the safe way to look at your over sea’s purchases.
5.We offer quality services from the ideas to proof of concept and finally to sample prototypes, this gives us
experience and a wide range of intelligent displays product knowledge.
6.Our years experiences made us faster and better, our teams are truly specialized, from our purchasing department to our factory workers, everyone is key to our success. Our sales teams are composed of many nationalities, some from foreign markets with years of experience. Our English and world market knowledge is another reason why choosing us makes only sense.
7.As part of our multiple services, we can offer 1 to 3 years warranty on all our products. Secure yourself and ask us about our extended warranty programs.
