Fixed Installation P4 Indoor LED Advertising Screen for Stage , LED Video Display
Quick Details:
p4 indoor simple cabinet with fixed installation, lower price for this cabinet
more than 1200cd / square meters brightness & more than 1200Hz refresh rate
Supporting ODM service, Design the shape which you want
Easy to install, eaay to maintance, light weight, good appearance.
24 months warranty for our products and life time maintance to make the life as long as possible
Specifications:
led module parameter | ||
Technical parameters | UNIT | parameters Values |
Pixel pitch | mm | 4 |
module size | mm | 256*128 |
Physical density | dots/㎡ | 62500 |
Pixel configuration | RGB | 1,1,1 |
Driving method | Constant current 1/16scan | |
Led lamp | Smd | 2121 |
module resolution | dots | 64*32 |
Module weight | Kg | 0.23 |
Module port | HUB75 | |
Module consumption | W | 20 |
led display parameter | ||
Viewing angle | Deg. | H120 V120 |
Viewing distance | m | 4-35 |
Maximum power | W/㎡ | 860w |
Frame Frequency | Hz | ≥60 |
Refresh frequency | Hz | ≥1200 |
Equilibrium brightness | cd/㎡ | ≥1200 |
Working environment temperature | 0C | -30~60 |
Display working voltage | VAC | 220V±15%/110V±15% |
Gray scale/color | ≥16.7M color | |
Input signal | RF S-Video RGB etc | |
Control system | Nova/Linsn control system | |
Mean free error time | hours | >5000 |
life time | hours | >100,000 |
Lamp failure frequency | <0.0001 |
Features:
Stable & Good quality: we have stable raw materials suppliers such as The lamp; the IC; the
popwer supply; the control system etc. Every link, we have strict quality checks.
Supporting OEM/ODM service, and providing personalized and complete solutions for your case
Supporting many play files: videos, texts, pictures,graphics, PPT, Flashes and any sources
from TV,VCD,DVD and so on
HD & high refresh rate: the resolution for each led module is 64*32, so if the viewing
distance is 4 meters or more, the effect is good enough for this model.
Full color: adopt SMD2121 3 in 1 led lamps, excellent color performance and show the
content of the video best and reality
Waterproof led module and cabinet; Easy maintance & installation; relative low power
consumption; wide viewing angle
advantages:
1. Light weight:The aluminum die-casting technology makes the single cabinet as light as 8.5KG, which is convenient for assembly and transportation.
2. Ultra Thin: the cabinet for p4 indoor rental led screen is Thin, so it is good looking and easy to disassembly and transport
3. Easy to maintain:No need to disassemble the whole screen for maintenance.Each component can be detached individually for that purpose.
4. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
5. High IP: The IP65 insures the reliable operation in severe enrionment, so it is more safe to handle

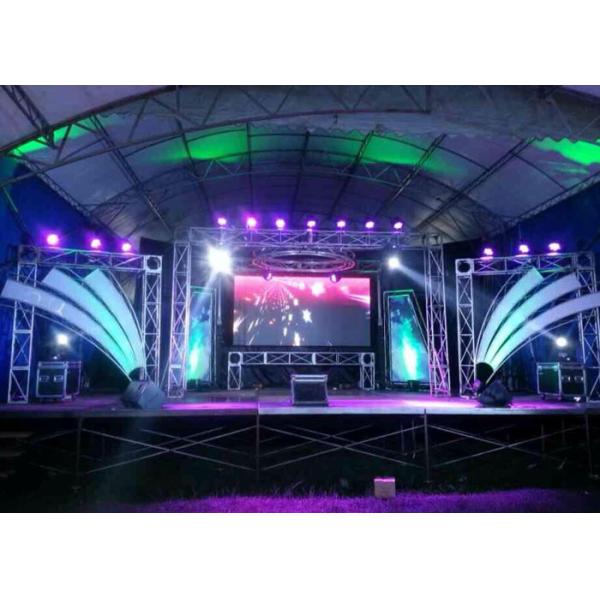

Applications:
Nowadays, led screen are being used in more and more place, most for advertising usage and stage performance usage. and now there is a trend that : the led screen rental market
others are Fixed installation, such as:
For example: supermatket, restaurants, travelling agency, commercial plaza, Movie theaters,
clubs, commercial building, subway stations, airport stations, big outdoor advertising tv screen,
In all, many places need led screen for all kinds of usages, we just try our best to meet
the trends and needs, and do our best to make good products for our customers
After-sell Service:
Installation servive, usually we don't take charge of installing overseas, but we can
provide technical support for you. if you need installation service, we can send our
technicians to your country, but the customers need take charge of the cost
Lifetime free maintenance and software upgrade service. and if you have any problem in using the software you can contact us, and we will solve the problem for you in 24 hours
we will reponse you in 24 houres if you have any question about the led screen,
maintenance guidance and problem solution supplied in 48 hours.
Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
Free technical training for how to use and handle the software.
Customer satisfaction tracking report.
FAQ:
1. Except this model, are there any other models?
yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
For outdoor led screen we have p5 p6 p8 p10
2. Are you factory? and your warranty?
yes we are 7 years factory, 2 years warranty and lifetime maintenance
3. What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on
4. What's your delivery time?
Wthin 7-21 days after we receiving deposit
5. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
