High Resolution P2.5 Large Led Display Full Color Indoor Rental Die Casting Aluminum Cabinet

Specifications

Brand Name :

Kailite

Model Number :

P2.5 indoor fullcolor rental

Certification :

CE/UL/RoHS/ISO9001/FCC

Place of Origin :

Shenzhen/Guangdong/China

MOQ :

1SQM

Price :

Negotiation

Supply Ability :

1000SQM/Month

Delivery Time :

15 days after receive the deposit

Packaging Details :

Wooden packing /Flightcase packing

Module size :

160*80/160*160mm

Cabinet size :

640*640mm

Cabinet resolution :

192*192mm

Brightness :

1000cd/㎡

Cabinet material :

Die-casting aluminum

Module weight :

0.24kg

LED Chip :

SMD2121

Description

High resolution P2.5 full color indoor rental led display screen wall with 480*480mm die casting aluminum cabinet

Features:

1. P2.5 high refresh rate indoor full color LED display advertising video wall is Super Light and Thin
P2.5 high refresh rate indoor full color LED display advertising video wall is 2KG/panel with a depth of 80mm which is half of the depth of traditional LED screen,saving space and transportation cost

2. P2.5 high refresh rate indoor full color LED display advertising video wall has Fast Maintenance
P2.5 high refresh rate indoor full color LED display advertising video wall is With front maintenance design, maintenance efficiency is 10 times higher than traditional method, significantly saving time needed for maintenance

3. P2.5 high refresh rate indoor full color LED display advertising video wall has High Refresh Rate
P2.5 high refresh rate indoor full color LED display advertising video wall has Refresh Rate≥2000, offering impressive visual effect

4. P2.5 high refresh rate indoor full color LED display advertising video wall shows Fine and Smooth Picture
P2.5 high refresh rate indoor full color LED display advertising video wall is made with Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.

5. P2.5 high refresh rate indoor full color LED display advertising video wall has Seamless Splicing
P2.5 high refresh rate indoor full color LED display advertising video wall shows High conformity of picture without gap and information missing, realizing a seamless splicing display. Working life-span at least 100,000hrs;

LED Application:

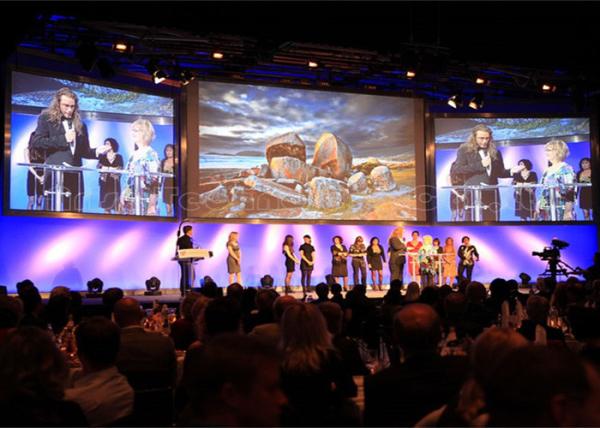

P2.5 high refresh rate indoor full color LED display advertising video wall could be used in Supermarkets, home, office, school, warehouse, shopping malls , hospitals ,production line , metro stations etc.

(Pitch 2.5mm indoor full color-1/16 scan)
Technique	SMD
Pixel structure	1R1G1B 3in1
Pixel pitch	2.5mm
Pixel density	160,000 dots
Luminance	2, 000cd
Module dimension	160mm(W) * 80mm(H)
Module resolution	64 pixel(W) * 32 pixel mm(H)
Cabinet dimension	480 * 480mm
Cabinet resolution	192 * 192
Cabinet area	0.230 sq. meter
Optimal visual distance	>2.5m
Visual angel	140 degree (H/V)
Max power consumption	≤2600w
Average power consumption	≤850w
Brightness adjustment	Adjust according to the environment
Brightness adjustment	brightness software (0%-100%adjustable)
Gray scale	point by point 4096 gray grade levels of
Gray scale	each color, 16 bits γ correction available
Drive mode	1/16 dynamic scan, constant current
Frame frequency	≥60HZ
Refresh frequency	≥1920HZ
Input voltage	AC 90~260 volts
Operation temperature	- 40℃~ +60℃
Operation humidity	10%~90%
Input signal	video, s-videl, RGB digital signal etc.
Inout signal	S-video, RF, RGB, Yuv, YC, composite…
Control system	DVI card + master control card + receiver card
MTBF	>5000 hrs
Life span (50% brightness)	100, 000 hrs
Malfunction dot rate	1/10000
Ingress protection rate	IP31
Cabinet material	Epoxy paint coated, aluminum / iron
Application:	Rental / Permanent installation available

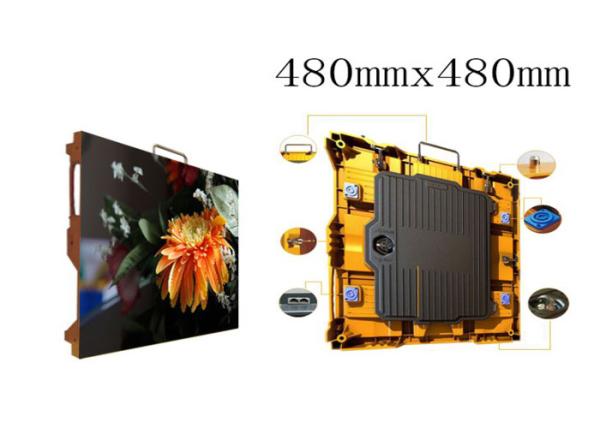

Standard Cabinet Dimensions

The ultra-lightweight cabinet made is aluminum alloy which gives it extra strength. The cabinet of P2.5 Indoor Rental LED Display is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.
