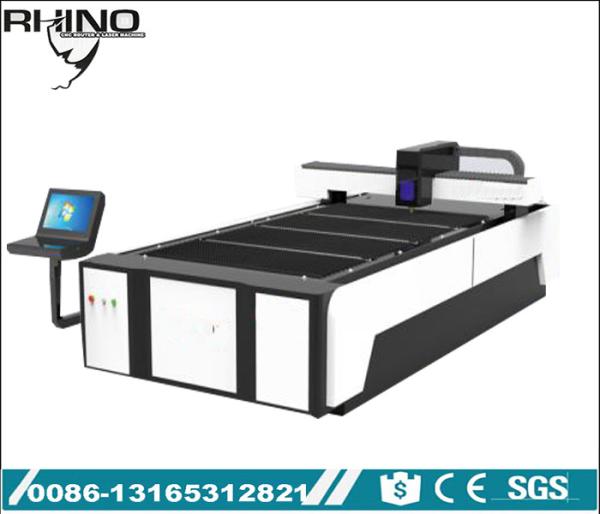

Raycus 1KW Fiber Laser Cutting Device , Industrial Laser Metal Cutting Table
Raycus 1KW Fiber Laser Cutting Device , Industrial Laser Metal Cutting Table
Specifications
Brand Name :
Rhino
Model Number :
RF-1530-100W
Certification :
CE/ISO/FDA
Place of Origin :
JINAN,CHINA
MOQ :
1 set
Price :
10000-50000usd/set
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1000 sets per month
Delivery Time :
10-14 working days
Packaging Details :
strong plywood box
Working size :
1500mmx3000mm
Z axis :
100-200mm
Servo motor :
Japan Yaskawa servo 850w motor driver
Work table :
strong knife table (water table for your option)
Fiber laser generator :
Raycus 1000W
Laser head :
Ray Tools
Mechanical driving system :
PMI square rail
Water chiller :
CWFL800
Motor reducer :
Japan Shimpo brand
PC system :
Industrial computer
Weight :
2000kg
Y axis servo unit :
Yaskawa 850w
Voltage :
AC380V/50HZ or 60HZ
Warranty :
2 YEARS
I/O card :
Cypcut
Color :
As per your requirement
Description

1000w Raycus R-1530 fiber laser cutting machine for steel carbon steel aluminium

Suitable materials and industry application

--- Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgy equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, and other fields.

--- Professional used to cut thin sheet metal, in a variety of high quality 0.5- 6 mm carbon steel sheet cutting, also cut stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate and other metal materials.

Features

1. Choose the world's largest optical fiber laser manufacturers, 1000w fiber laser.

2. Laser module protection system

3. The laser module have warning sign to introduce the laser out avoid harm from direct laser；

4. The cover have ground connection to avoid hurt from leakage.

5. The operator need to wear suitable laser protection glasses throughout the operation；

6. Low maintenance:Fiber line transmission, no adjustment of optical path;

7. Easy operations:fiber line transmission no need reflect lens,save maintenance cost;

8. Super flexible optical effects:Compact design,easy to flexible manufacture requirements;

500W Main Configuration Instructions

No. Name Quantity Origin and manufacturer name
1 Lasers
(1) Fiber laser 1 set
(2) Laser Power
2 The optical path and the cutting head
Special laser cutting head 1 set
3. Host Machine
(1) Machine bed 1 set Homegrown/Jinan Iron and Steel
(2) Gear rack 1 set From Taiwan
(3) Servo motor and drive 3 set Imported from Japan
4 CNC and software systems
CNC systems(With control software) 1 set Cypcut control system
5 Standard accessories
Water cooling 1 set TENGFEI

1000W Main Parameters

Model RF-1530-1000
Laser type Fiber laser
Laser working medium Fiber
Laser wavelength 1070 nm
Rated output power 1000 W
Beam quality ＜0.373mrad
Effective cutting range 2500×1300(mm)
Table axial positioning accuracy ≤±0.03mm/m
Repeat positioning accuracy table ≤±0.02mm/m
Cutting speed ≤30m/min
Maximum table load 1600KG
Power Ratings Three-phase AC 380V 50Hz
Equipment electric power 10-20KW
Total power protection class IP54

Processing capacity Description

Material Thickness Auxiliary gas
Carbon Steel ＜8mm

Oxygen
Stainless Steel ＜6mm

Oxygen
Aluminum ＜3mm Nitrogen

Part of the process parameters

Material Thicknes(MM) Gas Maximum cutting speed
Carbon Steel 1 Oxygen 3m/min
2 Oxygen 1.2m/min
5 Oxygen 0.5m/min
Stainless Steel 1 Oxygen 3m/min
3 Oxygen 0.5m/min
Aluminum 1 Oxygen 2m/min
2 Oxygen 0.5m/min

RF-1530-1000 Fiber laser cutting machine samples

Raycus 1KW Fiber Laser Cutting Device , Industrial Laser Metal Cutting Table

Raycus 1KW Fiber Laser Cutting Device , Industrial Laser Metal Cutting Table

Raycus 1KW Fiber Laser Cutting Device , Industrial Laser Metal Cutting Table

Raycus 1KW Fiber Laser Cutting Device , Industrial Laser Metal Cutting Table

Raycus 1KW Fiber Laser Cutting Device , Industrial Laser Metal Cutting Table

Raycus 1KW Fiber Laser Cutting Device , Industrial Laser Metal Cutting Table
